Description

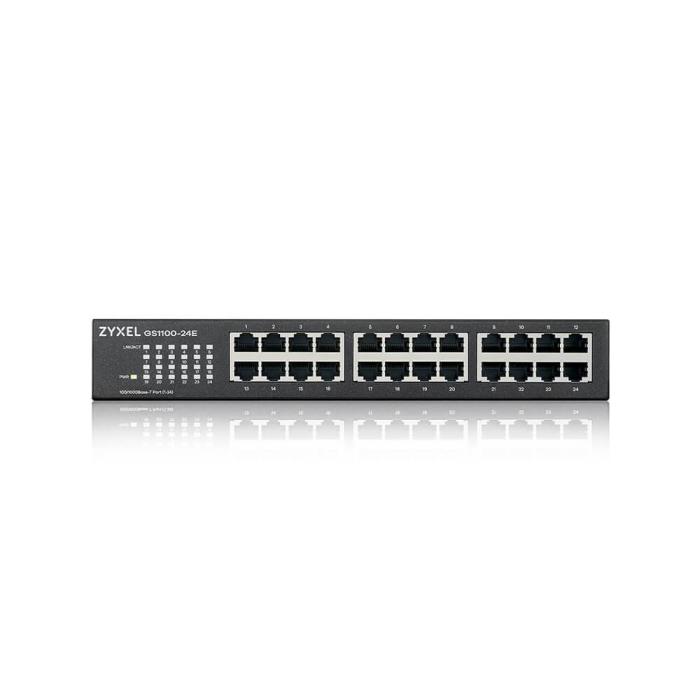

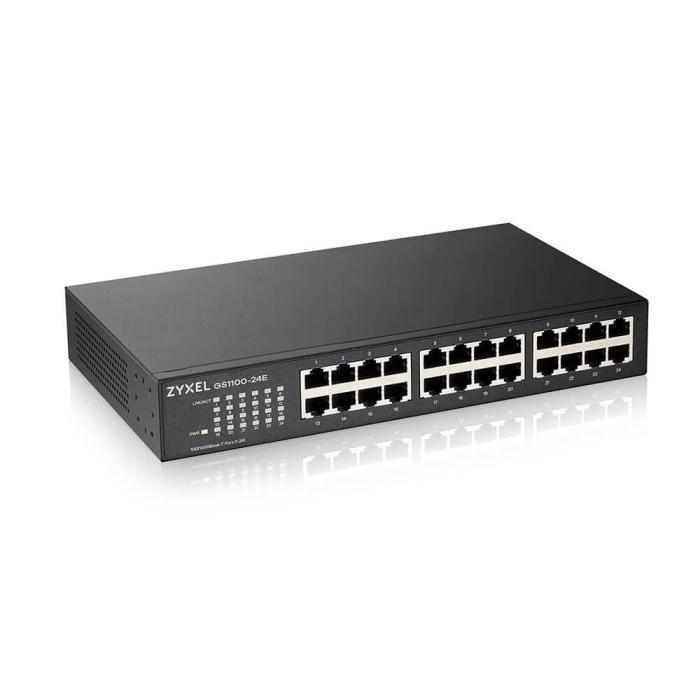

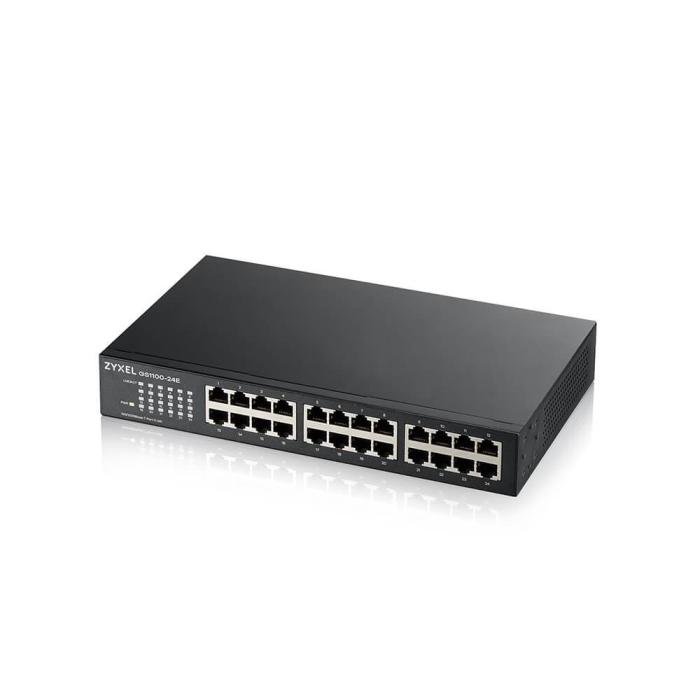

The Zyxel GS1100-24E switch is an unmanaged device in black that provides 24 Gigabit Ethernet (10/100/1000) RJ-45 ports for connecting network equipment. It features auto MDI/MDI-X and complies with the IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x and IEEE 802.3z standards. Its switching capacity reaches 48 Gbit/s, with a forwarding rate of 35.7 Mpps, a MAC address table of 8000 entries and 10000 jumbo frames. It has a packet buffer memory of 0.525 MB and a mean time between failures of 366919 hours. As it has no fan, it is suitable for environments where silence is appreciated. You can mount it on a wall or in a rack thanks to its installation options, and the LED indicators show you the connection status. It operates with an AC input frequency of 50 - 60 Hz and has dimensions of 267 x 42 x 162 mm, with a weight of 1.5 kg.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Auto MDI/MDI-X: Yes
Data transmission
- Switching capacity: 48 Gbit/s
- Forwarding rate: 35.7 Mpps
- MAC address table: 8000 entries
- Jumbo frames: 10000
- Packet buffer memory: 0.525 MB
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
- Wall mountable: Yes
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 366919 h
Power
- Power supply included: Yes

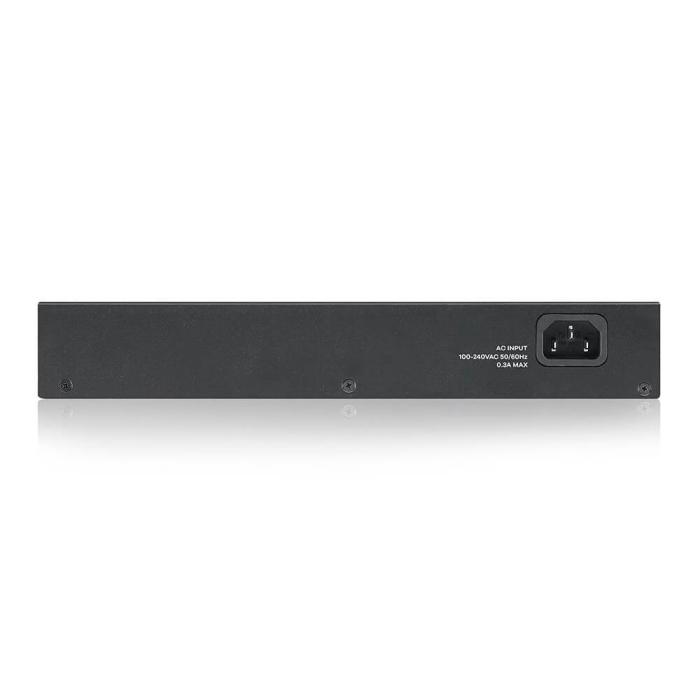

- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 13 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Heat dissipation: 43.53 BTU/h
Weight & dimensions
- Width: 267 mm
- Depth: 162 mm
- Height: 42 mm
- Weight: 1.5 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
Certificates
- Certification: LVD, BSMI, EMC Class A, CE, FCC, RCM, ICES-003, BSMI, RoHS, REACH
Logistics data
- Harmonized System (HS) code: 85176990
