Description

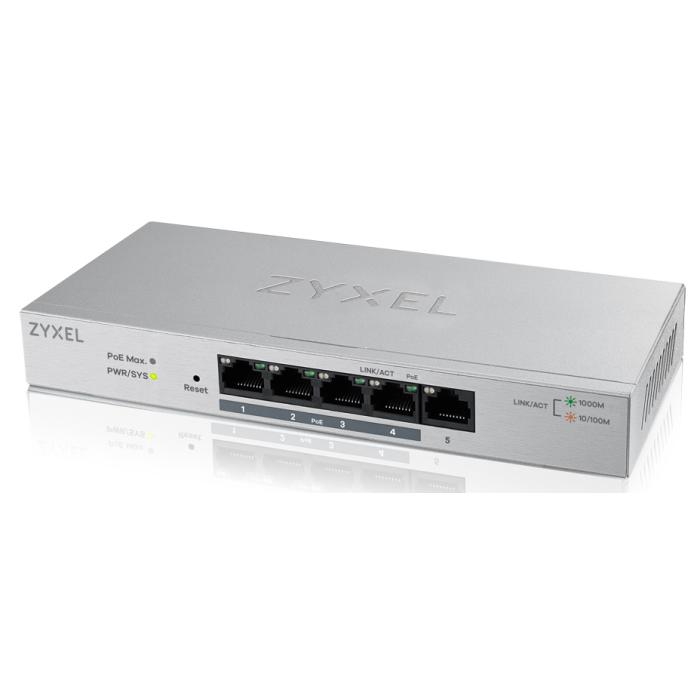

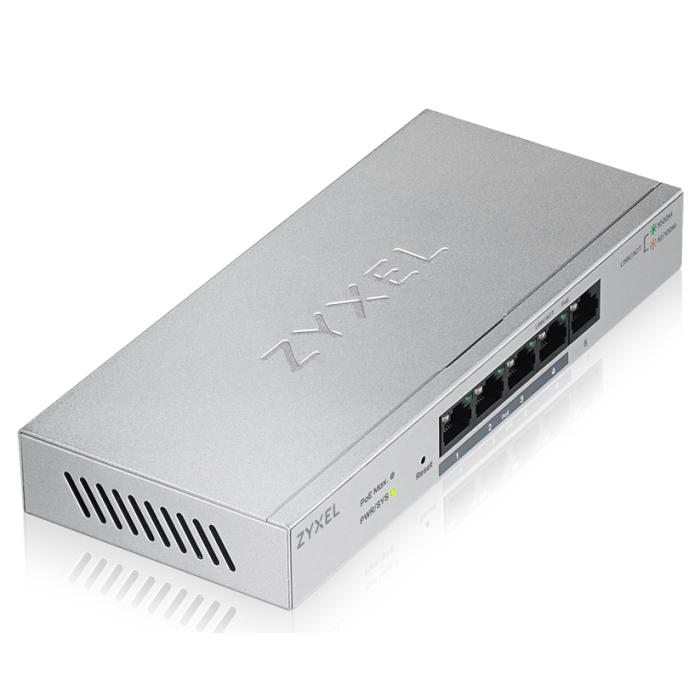

The grey Zyxel GS1200-5HP managed switch offers five Gigabit Ethernet (10/100/1000) ports with RJ-45 connectors and PoE power, which allows network devices to be connected and powered over the same cable. Its management is carried out via the web, with support for QoS, port-based VLANs, storm control and IGMP to manage traffic efficiently. It includes auto MDI/MDI-X, Jumbo Frames and a MAC address table of 4000 entries. The device complies with the IEEE 802.3ab, 802.3af, 802.3at, 802.3az, 802.3p, 802.3u, 802.3x and 802.3z standards, and reaches a switching capacity of 10 Gbit/s. Its compact design measures 193 x 26 x 84 mm (width x height x depth) and weighs 400 g, with a power input via DC jack. It is designed for small and medium-sized installations that need to segment the network and prioritise services without complications.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

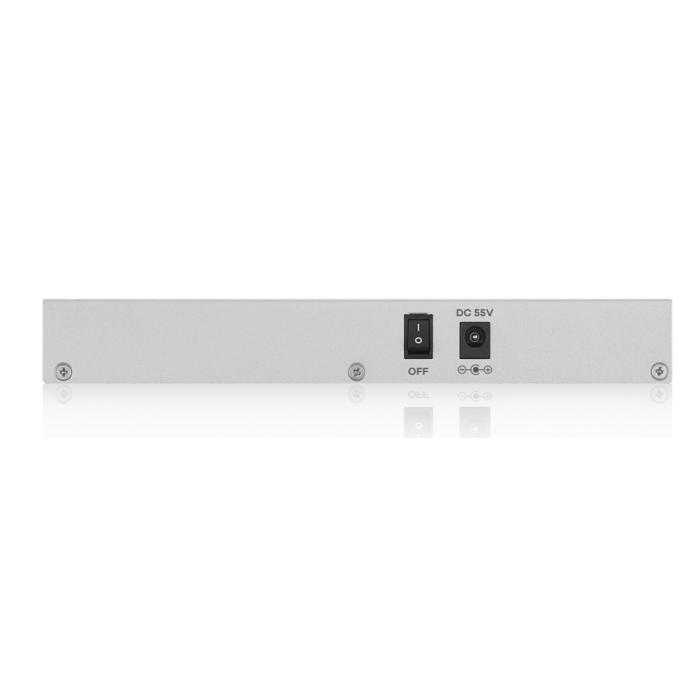

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Virtual LAN features: Port-based VLAN
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 4000 entries
- Jumbo frames support: Yes
Security
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
- Number of multicast groups filtered: 20
Design
- Rack mounting: No
- Stackable: No
- Product colour: Grey
- Reset button: Yes
- LED indicators: Link, PoE, Power
- On/off switch: Yes
- Safety: LVD EN60950-1, RoHS
Performance
- Firmware upgradeable: Yes
Power
- Power consumption (max): 72 W
- Input voltage: 55 V
- Output current: 1.3 A
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 193 mm
- Depth: 84 mm
- Height: 26 mm
- Weight: 400 g
Certificates
- Certification: CE, FCC, C-Tick, Class A
