Description

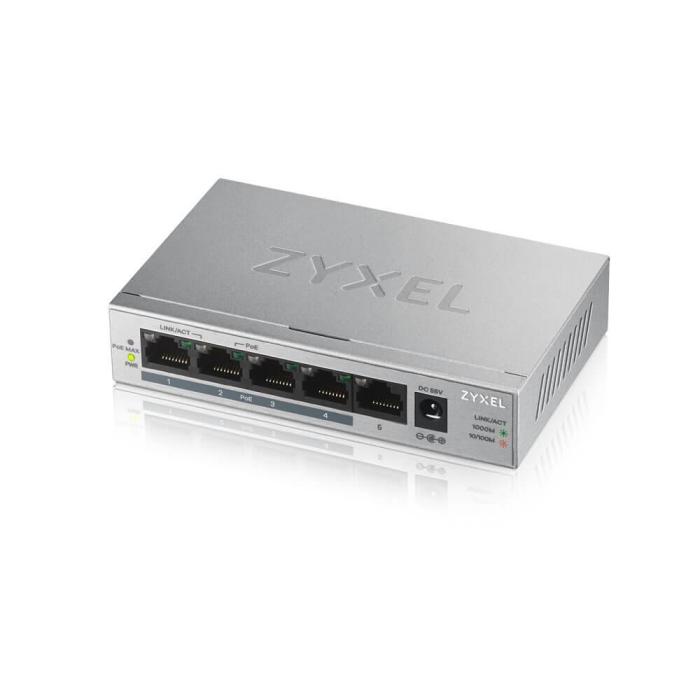

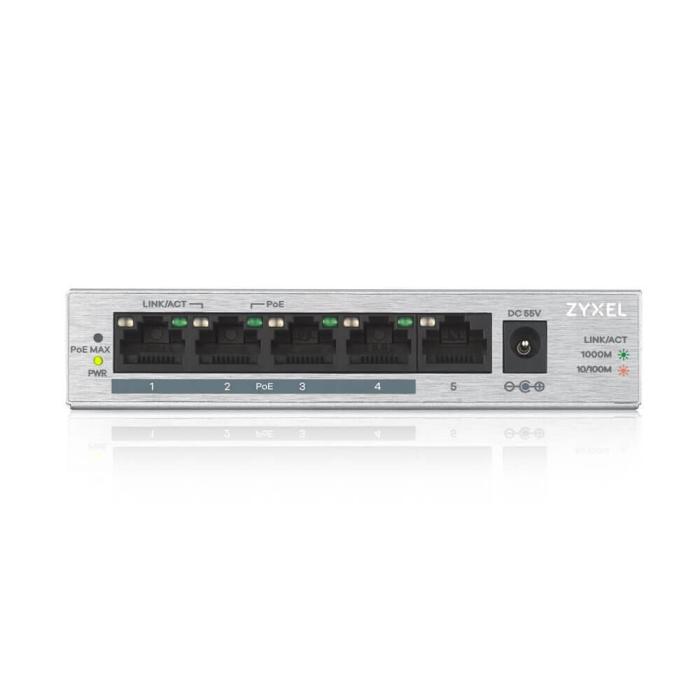

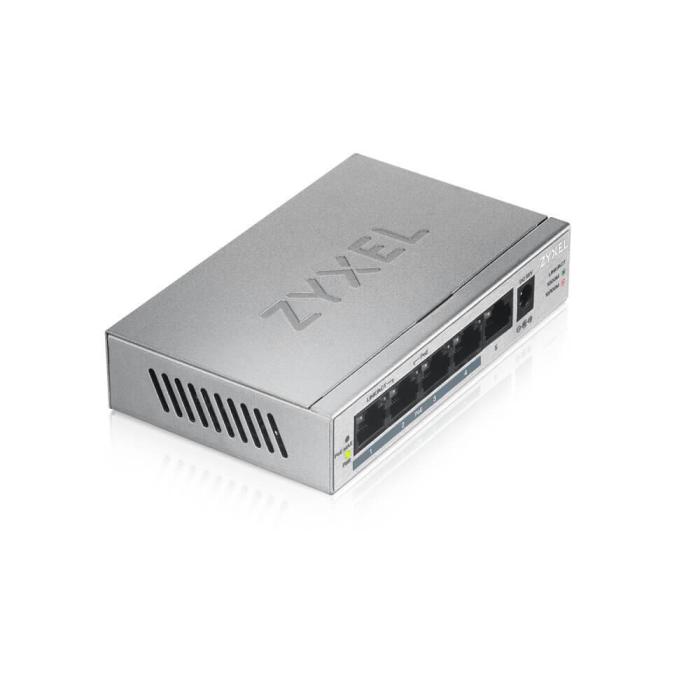

The Zyxel GS1005HP is an unmanaged 5-port Gigabit Ethernet (10/100/1000) switch with PoE support, in silver. It offers a switching capacity of 10 Gbit/s and a MAC address table of 2048 entries. It includes QoS support and flow control, as well as full-duplex operation and auto MDI/MDI-X. It complies with the IEEE 802.3, 802.3ab, 802.3az, 802.3u and 802.3x standards, and includes Jumbo frames of up to 9126 bytes. Its buffer is 128 KB and it operates with an AC input voltage of 100 - 240 V, an output current of 1.3 A and an output voltage of 55 V. With dimensions of 121 x 26 x 75 mm (width x height x depth) and a weight of 235 g, it is a compact option for expanding the network.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 2048 entries
- Jumbo frames support: Yes
- Jumbo frames: 9126
Design
- Product colour: Silver
Performance
- Buffer size: 128 KB
Power
- AC input voltage: 100 - 240 V
- Output voltage: 55 V
- Output current: 1.3 A
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 121 mm
- Depth: 75 mm
- Height: 26 mm
- Weight: 235 g
Packaging content
- Quick start guide: Yes
Packaging data
- AC adapter included: Yes
- Package width: 210 mm
- Package depth: 132 mm
- Package height: 78 mm
- Package weight: 834 g
Certificates
- Certification: CE, FCC, BSMI, EAC
Logistics data
- Harmonized System (HS) code: 85176990
