Description
The XPG CYBERCORE II power supply delivers a total power of 1000 W with an AC input voltage of 110 - 240 V and an input current of 13 A, managing a frequency of 50/60 Hz and a power factor of 0.99. It features fully modular cabling that facilitates assembly and reduces clutter inside the case, with a weight of 1.96 kg in black and dimensions of 160 x 86 x 150 mm (width x height x depth). It incorporates a 20+4 pin ATX motherboard connector and a 4+4 pin CPU power connector, with 75 cm cables for both the CPU and the motherboard and PCI Express. It offers six PCI Express power connectors (6 + 2 pin) with a cable length of 75 cm for the 12+4 pin ones of 650 mm, as well as eight SATA power connectors and four 4-pin Molex peripheral connectors. It has a connector for a floppy disk drive and a 15 cm cable for the same.
Specifications
Power
- Total power: 1000 W
- AC input voltage: 110 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 13 A
- Power factor: 0.99
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

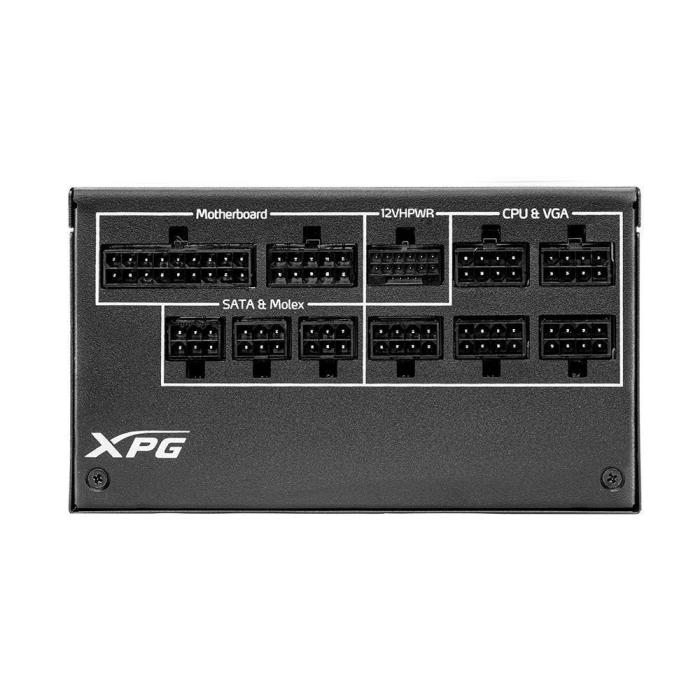

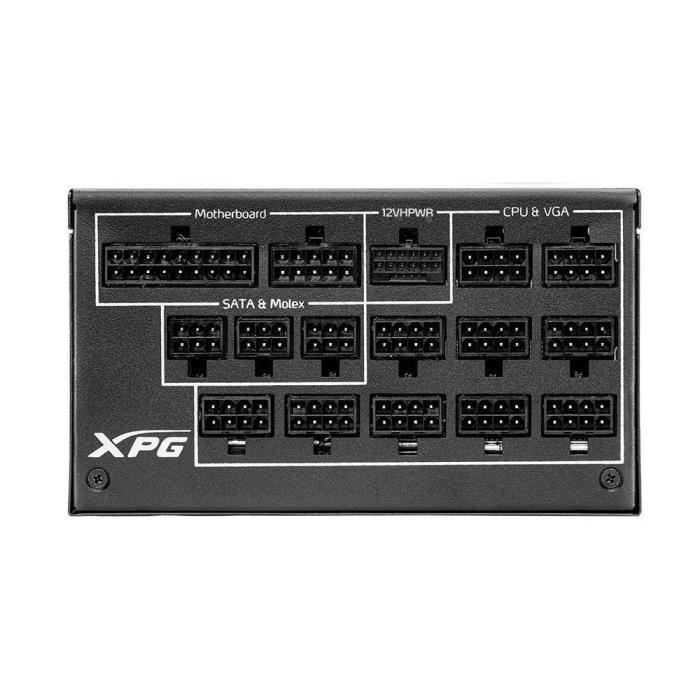

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 75 cm
- Number of SATA power connectors: 8
- SATA power cable length: 150, 600 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 150, 600 mm
- PCI Express power connectors (6+2 pin): 6
- PCI Express power connectors (12+4 pin): 1
- PCI Express power connectors (12+4 pin) cable length: 650 mm
- PCI Express power cable length: 75 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 75 cm
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 15 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- Bearing technology: DBB
- Mean time between failures (MTBF): 125000 h
Design
- Product colour: Black
- Cooling type: Active

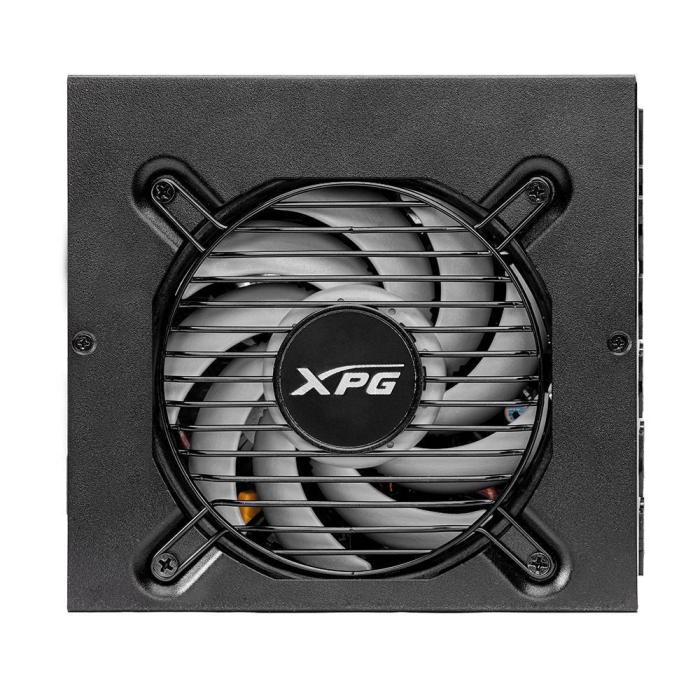

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Packaging content
- Cables included: AC
- Cable tie(s) included: Yes
Certificates
- Compliance certificates: BSMI, CB, CE, Federal Communications Commission (FCC), cTUVus, UKCA
- Certification: CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Weight & dimensions
- Width: 160 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.96 kg
Packaging data
- Package width: 4130 mm
- Package type: Box
Technical details
- Sustainability compliance: Yes
Logistics data
- Warranty period: 10 year(s)
