Description

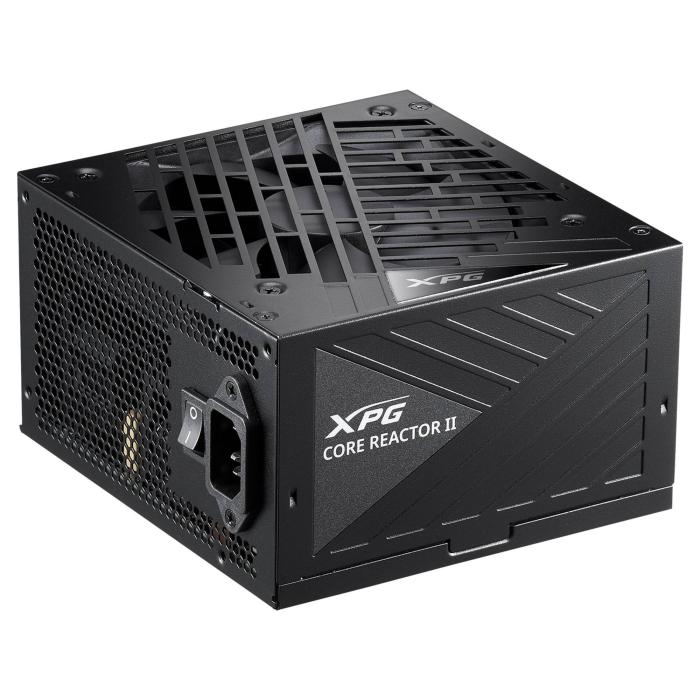

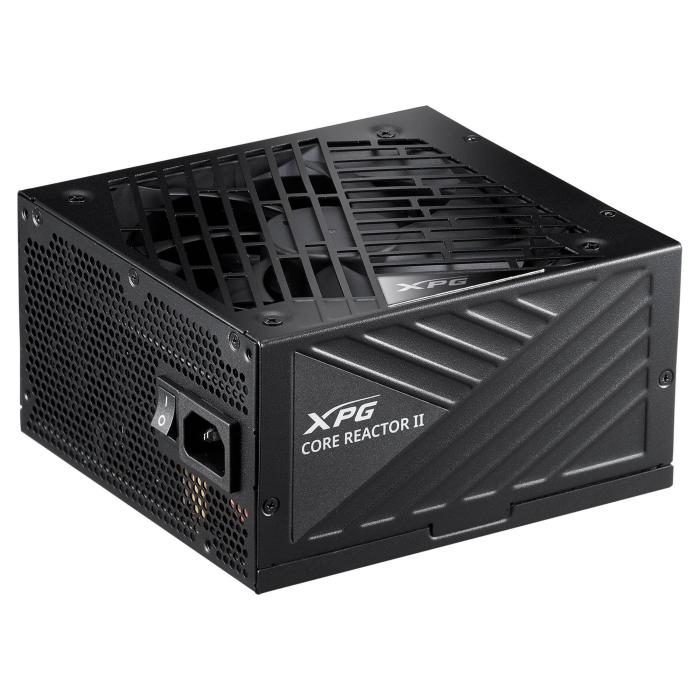

XPG COREREACTOR II 1000W Power supply with fully modular cabling, designed for systems that require a stable and tidy power delivery. It provides a total output of 1000W with a maximum current of 83.5A on the +12V rail, and supports AC input voltage of 100-240V with a power factor of 0.99. It includes a 24-pin ATX connector, 8-pin EPS power, eight 6+2-pin PCI Express connectors, nine SATA connectors, and three Molex, along with a 12+4-pin ATX connector for modern motherboards. It manages output currents of 22A on both +3.3V and +5V, plus 3A on +5Vsb and 0.3A on -12V, covering the needs of current components.
Specifications
Power
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 13 A
- Power factor: 0.99
- Max output current (+3.3V): 22 A
- Max output current (+12V): 83.5 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

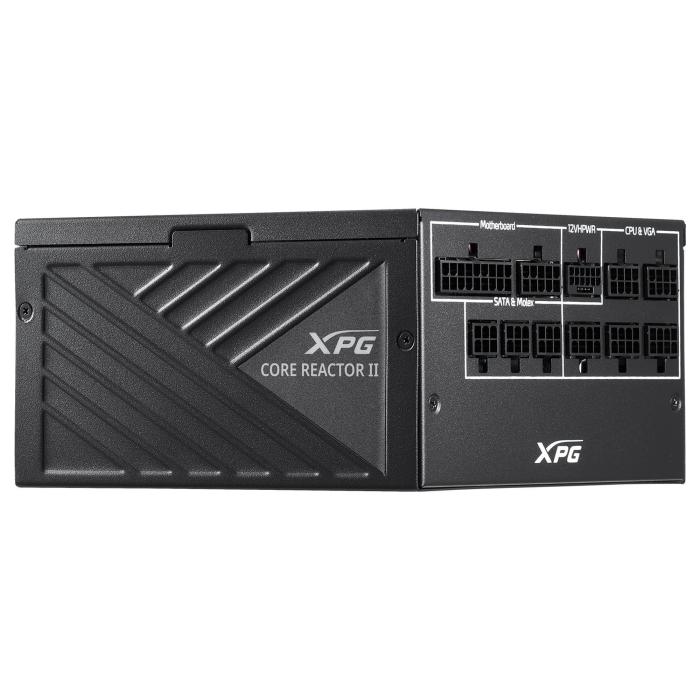

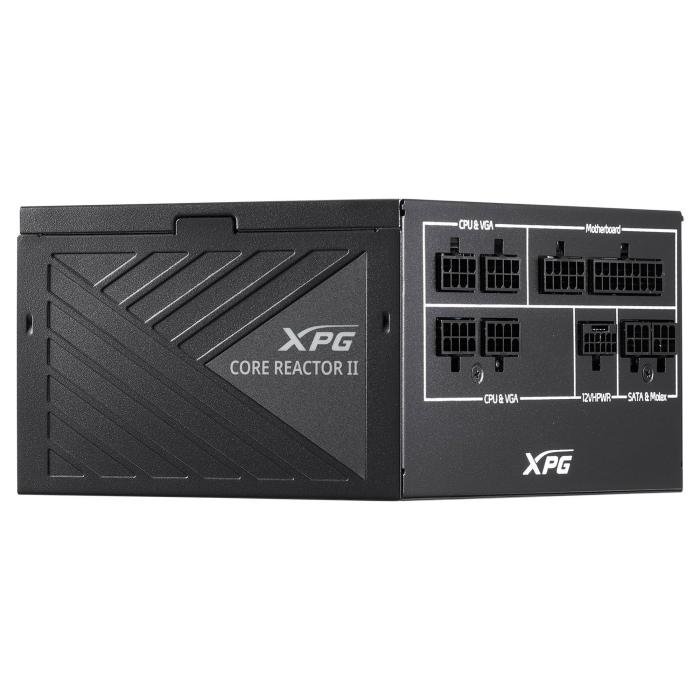

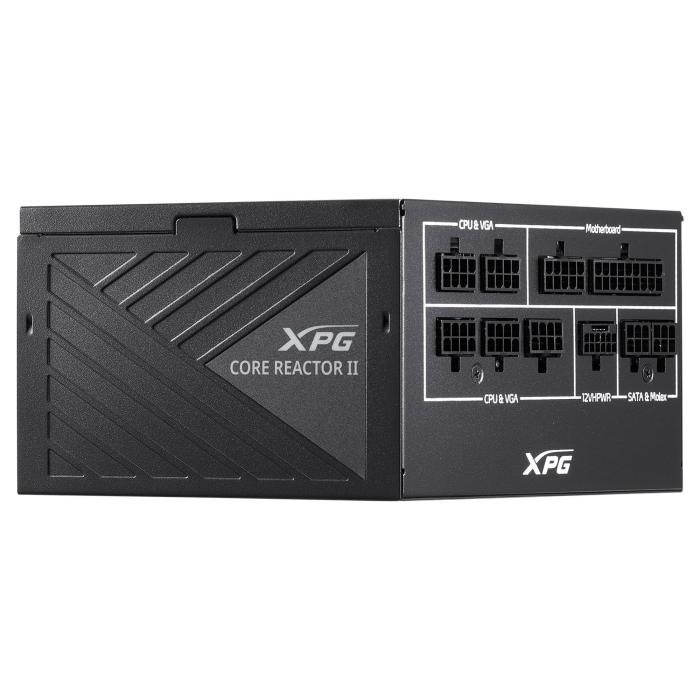

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 9
- Peripheral (Molex) power connectors (4-pin): 3
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 8
- ATX Power connector (24-pin): Yes
- ATX power connector (12+4 pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- EPS version: 2.92
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

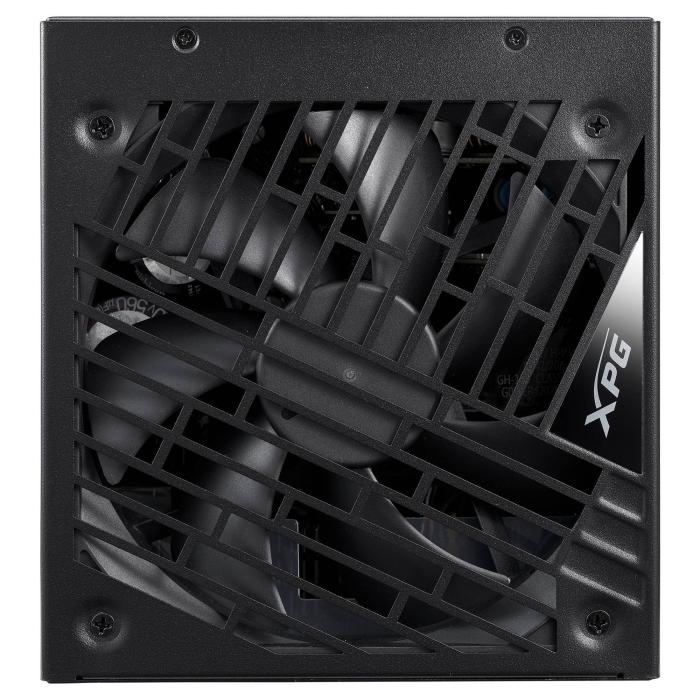

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
Certificates
- Compliance certificates: BSMI, CB, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM),
Weight & dimensions
- Width: 160 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.77 kg
Packaging data
- Package width: 210 mm
- Package depth: 338 mm
- Package height: 157 mm
- Package weight: 3.43 kg
