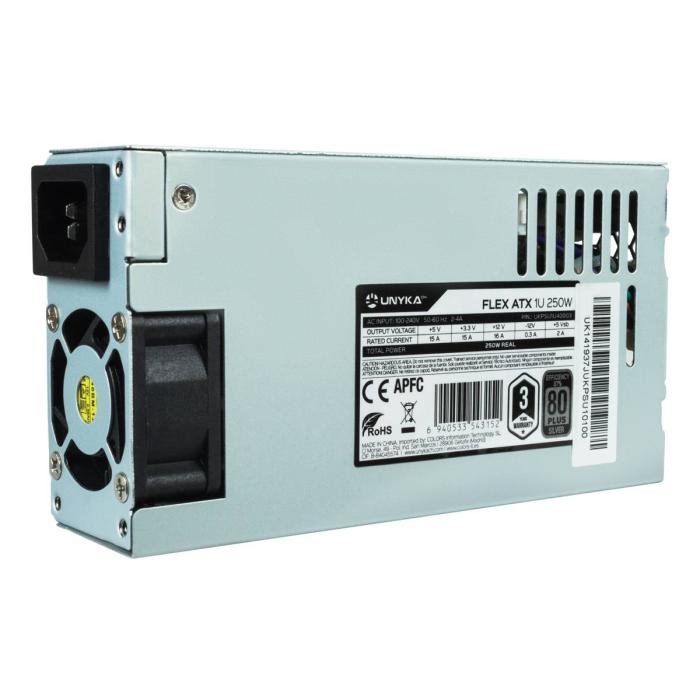

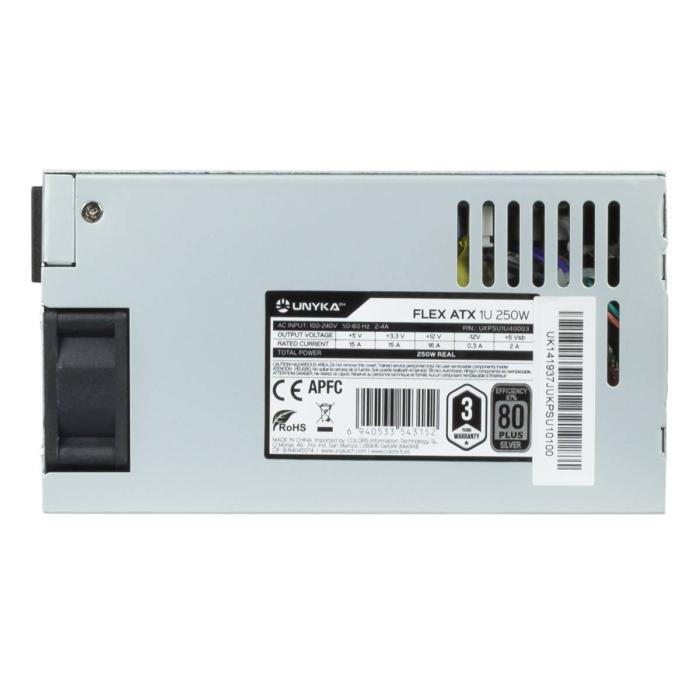

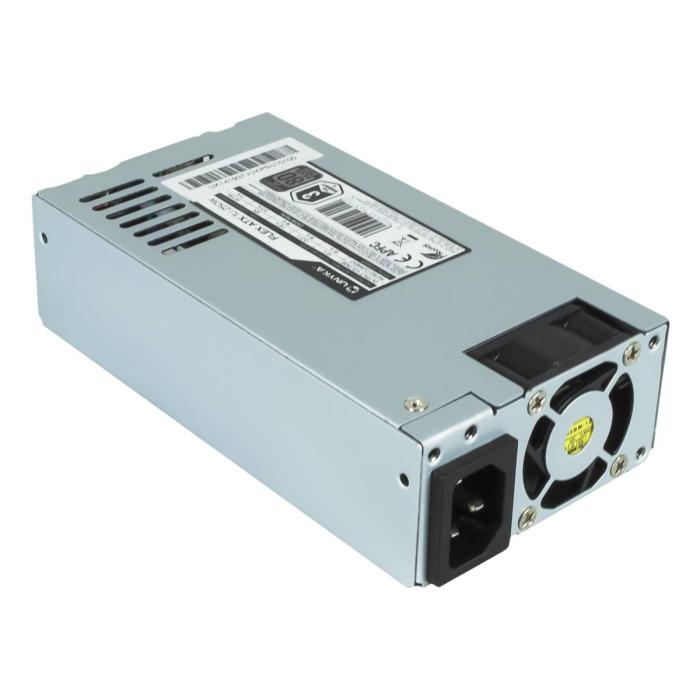

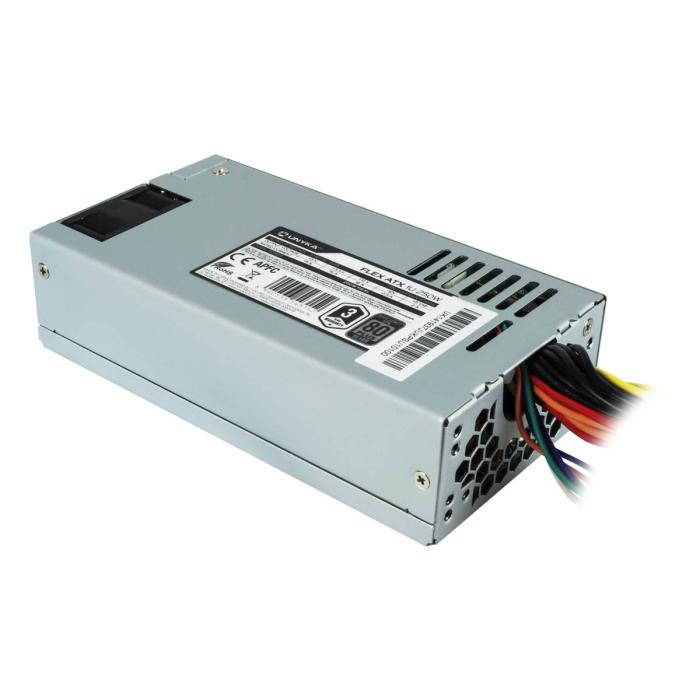

UNYKAch FLEX ATX

$55.23
$55.23 without VAT

UNYKAch FLEX ATX.   More info

Brand: UNYKACH
SKU: 83424 PRC: 269786 EAN: 6940533543152 PN: UKPSU1U40003

Description

Specifications

Power

  • Total power: 250 W
  • AC input voltage: 100 - 250 V
  • AC input frequency: 50 - 60 Hz
  • Power Factor Correction (PFC) type: Active
  • Max output current (+3.3V): 15 A
  • Max output current (+12V1): 16 A
  • Max output current (+5V): 15 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 2 A
  • Efficiency: 87%
  • Power protection features: Over current, Over voltage, Short circuit, Under voltage

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 33 cm
  • Peripheral (Molex) power connectors (4-pin): 2
  • Peripheral (Molex) power cable length: 470, 620 mm
  • Cabling type: Non-Modular

Performance

  • Purpose: Server
  • Power supply unit (PSU) form factor: 1U
  • ATX version: 2.3

Design

  • Product colour: Silver
  • Cooling type: Active
  • Fan diameter: 4 cm
  • Number of fans: 1 fan(s)
  • Fan speed: 0 - 1000 RPM
  • Fan location: Rear

Certificates

  • Compliance certificates: RoHS
  • Certification: CE

Weight & dimensions

  • Width: 85 mm
  • Depth: 150 mm
  • Height: 40 mm
  • Weight: 750 g

Packaging data

  • Package width: 85 mm
  • Package depth: 150 mm
  • Package height: 40 mm
  • Package weight: 750 g

Other features

  • Mounting type: Rack mounting
  • Screws included: Yes
  • Package volume: 300 cm³
