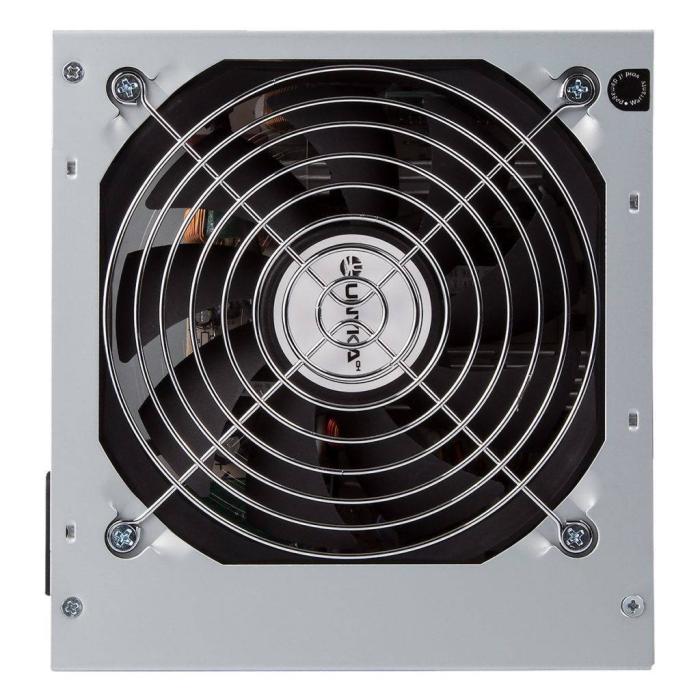

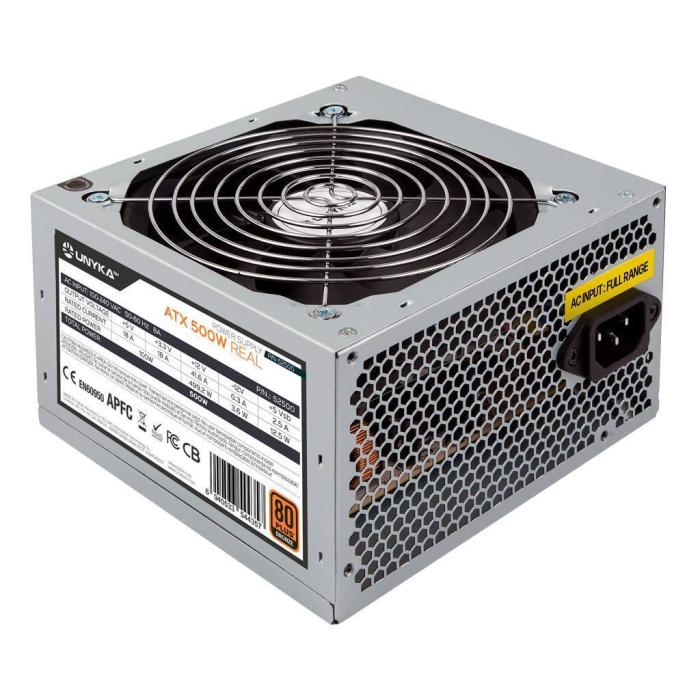

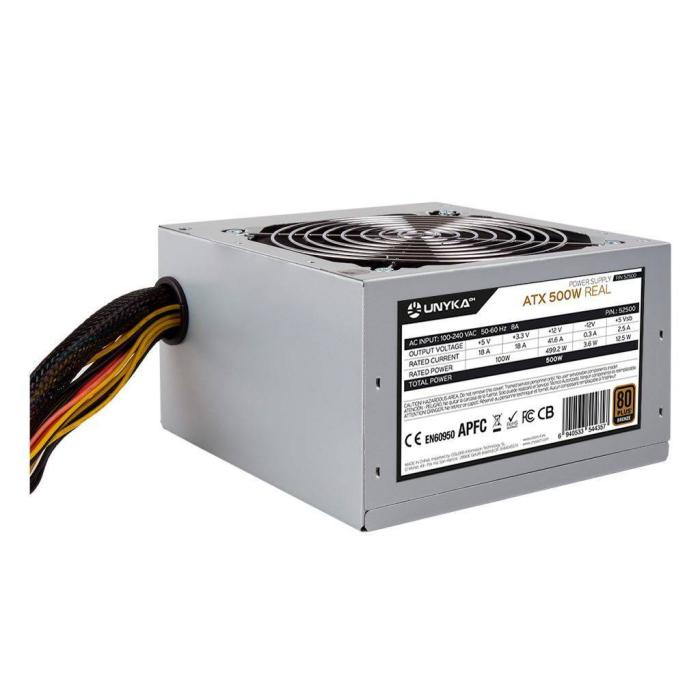

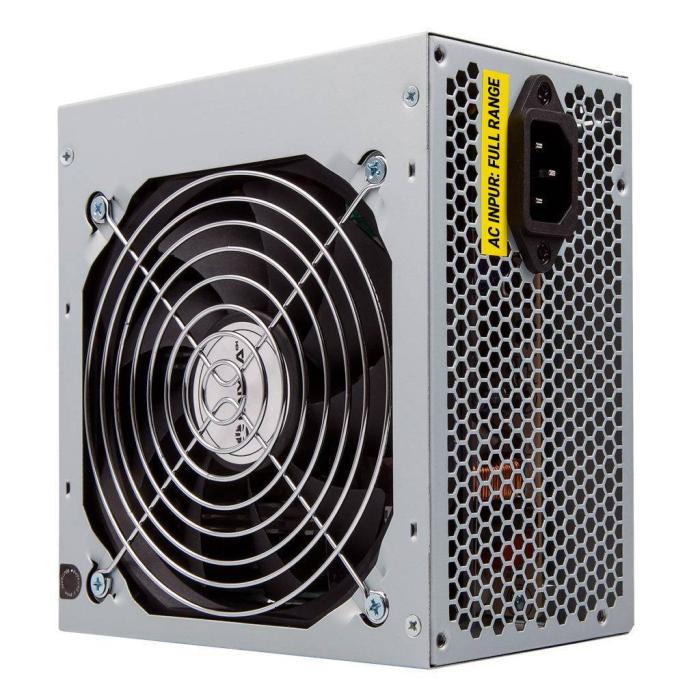

UNYKAch Power Supply ATX 500W 80+ Bronze

$42.85
$42.85 without VAT

UNYKAch Power Supply ATX 500W 80+ Bronze.   More info

Brand: UNYKACH
SKU: 108269 PRC: 546429 EAN: 6940533544357 PN: 52500

Description

Power Supply ATX 500W 80+ Bronze

Specifications

Power

  • Total power: 500 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power Factor Correction (PFC) type: Active
  • Max output current (+3.3V): 18 A
  • Max output current (+12V1): 41.6 A
  • Max output current (+5V): 18 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 2.5 A
  • Power protection features: Over power, Over voltage, Overcharge, Under voltage

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 50 cm
  • Number of SATA power connectors: 2
  • SATA power cable length: 350, 500 mm
  • Peripheral (Molex) power connectors (4-pin): 2
  • Peripheral (Molex) power cable length: 500, 650 mm
  • EPS power connector (4+4 pin): Yes
  • PCI Express power connectors (6+2 pin): 1
  • PCI Express power cable length: 55 cm
  • ATX power connector (20+4 pin): Yes
  • Cabling type: Non-Modular

Performance

  • 80 PLUS certification: 80 PLUS Bronze
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.3
  • Noise level: 28 dB

Design

  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • On/off switch: Yes
  • Product colour: Silver
  • Cooling type: Active

Certificates

  • Compliance certificates: RoHS
  • Certification: CE / EN60950 / TÜV

Weight & dimensions

  • Width: 150 mm
  • Depth: 140 mm
  • Height: 85 mm
  • Weight: 1.14 kg

Packaging data

  • Package width: 150 mm
  • Package depth: 140 mm
  • Package height: 85 mm
  • Package weight: 1.14 kg

Logistics data

  • Country of origin: Taiwan

Other features

  • Package volume: 1800 cm³
