Ubiquiti Pro Max 16 L3 2.5G Ethernet (100/1000/2500) 1U Grey
More info
Brand: UBIQUITI NETWORKS
319.48 €
264.03 €
without VAT
incl. 21 % VAT
Stock available: 11 units.
Get it
on the
October 16
/
October 19
SKU:
115209
PRC:
582265
EAN:
810084694565
PN:
USW-PRO-MAX-16
Description
Ubiquiti Pro Max 16 L3 2.5G Ethernet switch, in 1U format with a grey finish, features 16 RJ-45 ports with 2.5G speed (compatible with 100/1000/2500 Mbps), 4 of which are dedicated 2.5G, along with 2 SFP+ slots for 10G links. This L3 layer model offers support for VLAN (up to 1000), IPv4 routing with 512 routes, QoS, flow control, rate limiting, link aggregation, and port mirroring, in addition to complying with the IEEE 802.1x standard. Its advanced management allows you to administrate demanding corporate or home networks, while storm control and expandability via SFP+ ensure stable performance.
Specifications
Management features
- Quality of Service (QoS) support: Yes
- Switch layer: L3
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Gigabit Ethernet (copper) ports quantity: 12
- 2.5G Ethernet (copper) ports quantity: 4
- SFP+ module slots quantity: 2
- Power connector: AC/DC
Network
- Link aggregation: Yes
- IPv4 routes: 512
- Number of VLANs: 1000
- Networking standards: IEEE 802.1x
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- VLAN support: Yes
- Virtual LAN features: Voice VLAN
Data transmission
- MAC address table: 16000 entries
- Packet buffer memory: 1.5 MB
- Switching capacity: 84 Gbit/s
- Throughput: 42 Gbit/s
- Forwarding rate: 62 Mpps
- Static route: Yes
- Jumbo frames support: Yes
Security
- Authentication type: IEEE 802.1x
- DHCP features: DHCP guarding, DHCP relay, DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Loop protection: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Grey
- Housing material: SGCC
- Reset button: Yes
- LED indicators: Link, Network, Speed, Status
- Display type: LCM
Performance
- Fanless: Yes
Power
- Input current: 5 A
- Input voltage: 4.8 - 5.2 V
- Power supply included: Yes
- Redundant power supply (RPS) support: Yes
- Power consumption (max): 25 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Heat dissipation: 85.3 BTU/h
- Operating temperature (T-T): -5 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 325.1 mm
- Depth: 160 mm
- Height: 43.7 mm
- Weight: 1.95 kg

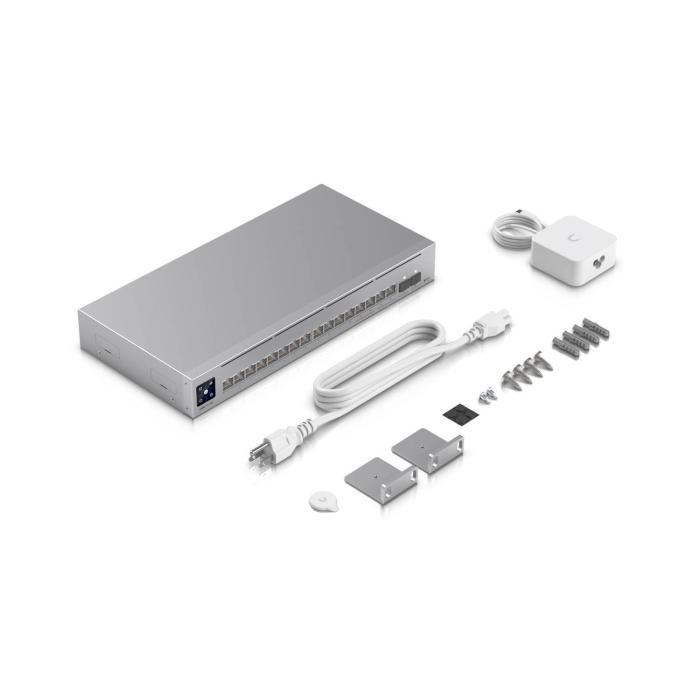

Packaging content
- Cables included: Power
- Rack mount kit: Yes
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
