Description

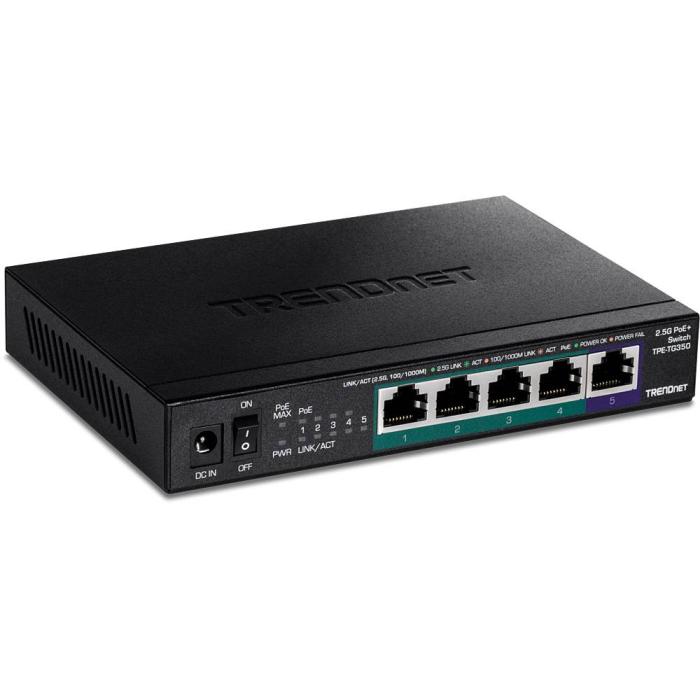

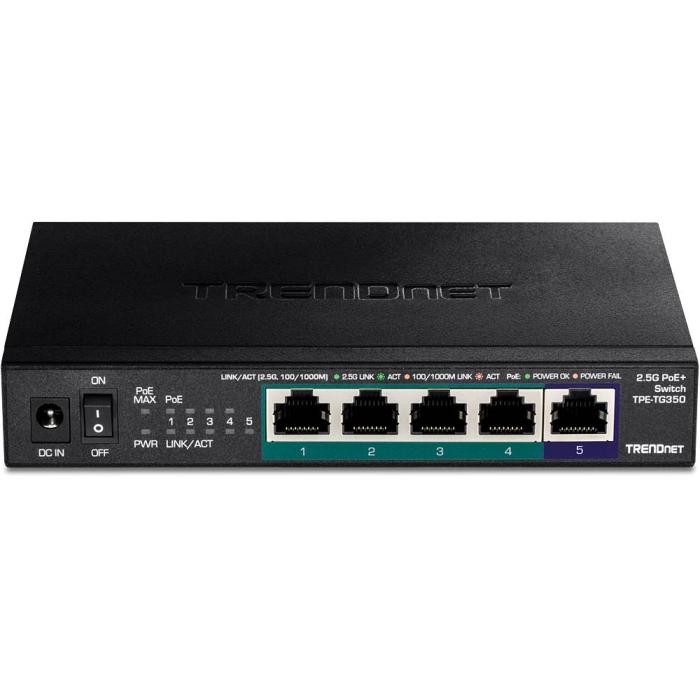

The unmanaged Trendnet TPE-TG350 switch in black features five 2.5G Ethernet ports with PoE support to power compatible network devices. This model has a metal housing, LED indicators for activity, link, PoE and power, and supports jumbo frames up to 12000 bytes. With a switching capacity of 25 Gbit/s and a forwarding rate of 18.6 Mpps, it manages up to 16000 entries in its MAC address table. Its full-duplex and half-duplex operation, along with Cat5e cable compatibility, makes it easy to integrate into home or small office networks requiring speeds above Gigabit.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Cable types supported: Cat5e
- Full duplex: Yes
- Half duplex: Yes
- Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Data transmission
- Switching capacity: 25 Gbit/s
- Forwarding rate: 18.6 Mpps
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet buffer memory: 1.5 MB
Design
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, PoE, Power
- Wall mountable: Yes
Performance
- Fanless: Yes
- MTBF (PoE): 830917 h
Power
- Power source: AC/DC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 7.83 W
- Power cable length: 1.5 m
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 55 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 286 mm
- Depth: 102 mm
- Height: 27 mm
- Weight: 900 g
Packaging content
- Cables included: DC
- Quick start guide: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
