Description

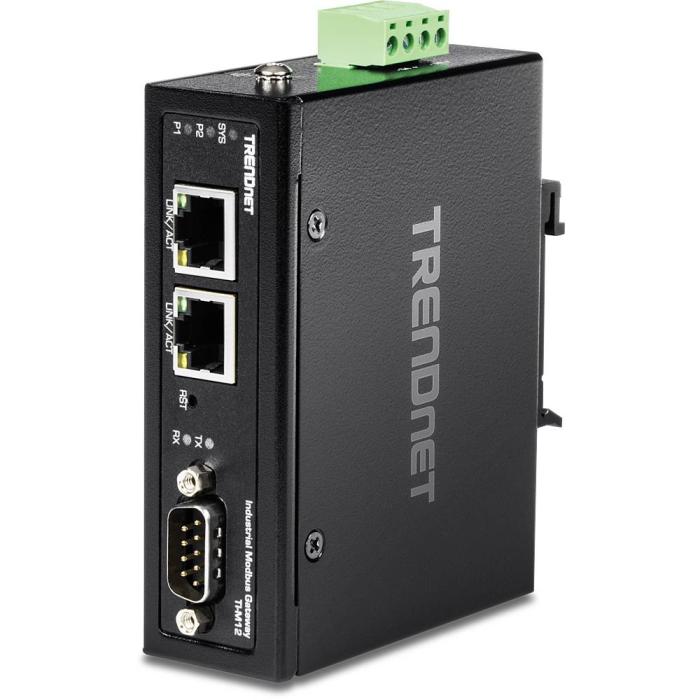

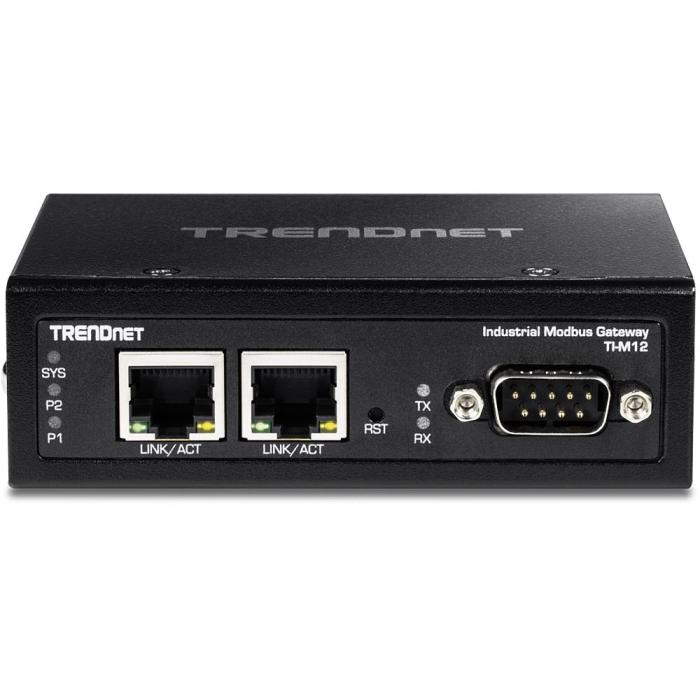

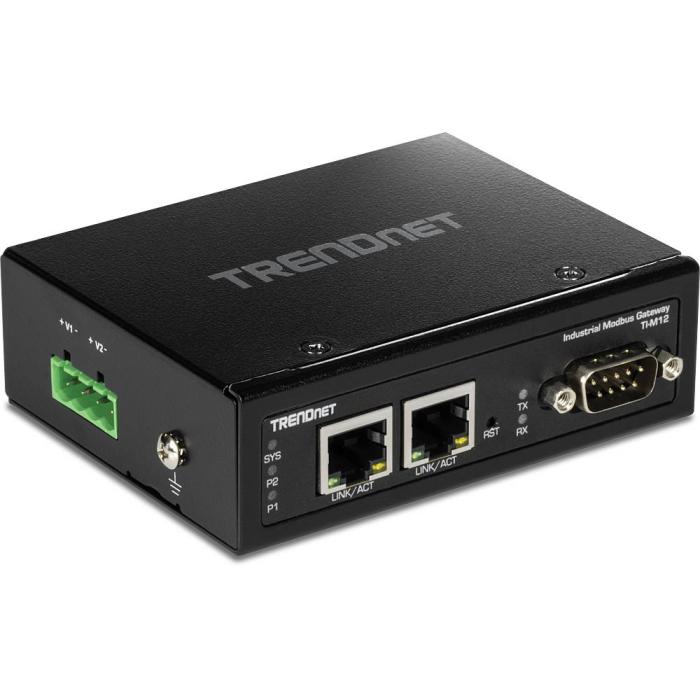

Trendnet TI-M12 gateway/controller with 10 and 100 Mbit/s Ethernet, designed for industrial installations on DIN rail with a black metal housing and IP30 protection. This device offers two RJ-45 ports compatible with IEEE 802.3, 802.3u and 802.3x, and supports full duplex and flow control for stable communication. It features an RS-232 serial interface, DHCP server functions and status LED indicators. The unit operates with an input voltage of 12 to 56 V and consumes up to 3.84 W, with reliability proven by its mean time between failures of 521243 hours; its dimensions are 103 mm in height and 31 mm in width.
Specifications
Design
- Product colour: Black
- Enclosure material: Metal

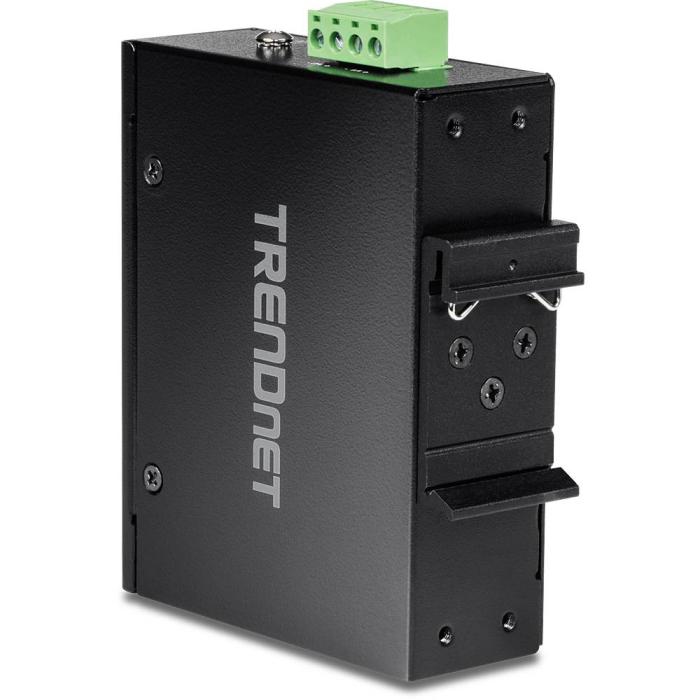

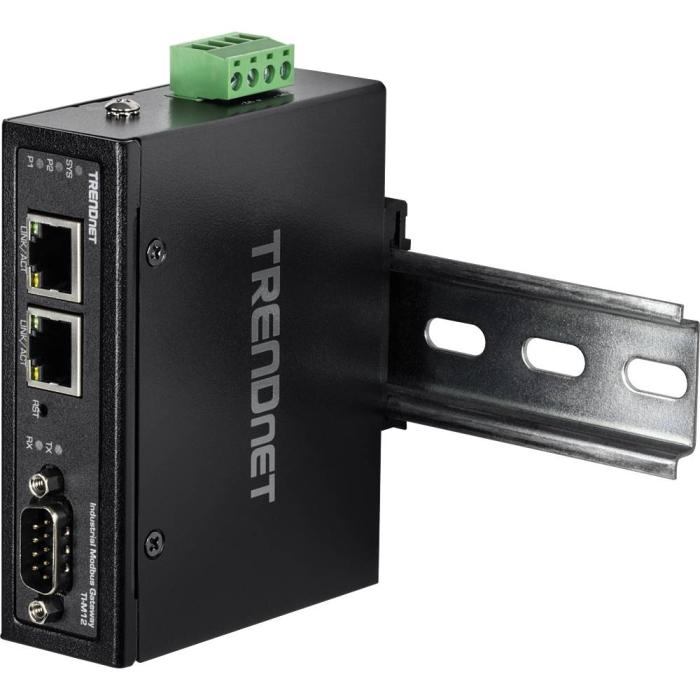

- Mounting type: DIN-rail
- LED indicators: Yes
- International Protection (IP) code: IP30
Features
- Mean time between failures (MTBF): 521243 h
Protocols
- DHCP server: Yes
Network
- Ethernet LAN data rates: 10, 100 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Wi-Fi: No
- Flow control support: Yes
- Full duplex: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- Serial interface type: RS-232
Power
- Power consumption (max): 3.84 W

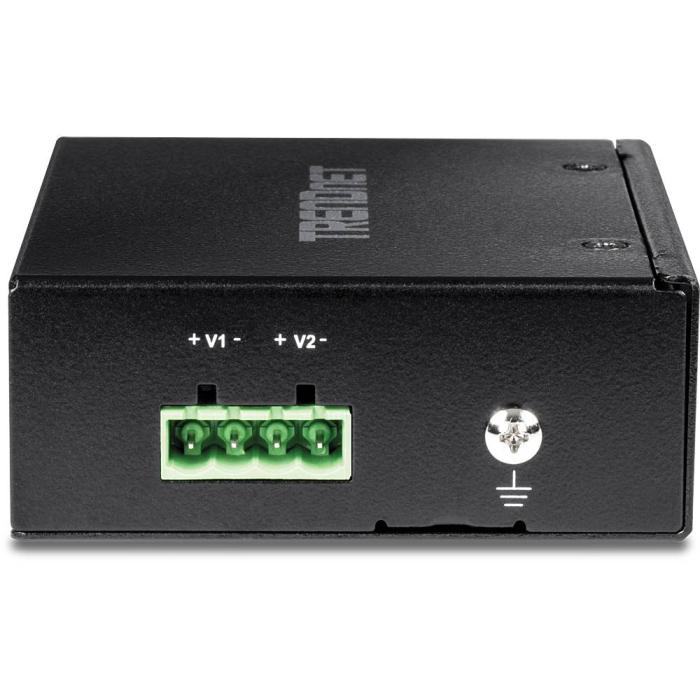

- Input voltage: 12 - 56 V
Weight & dimensions
- Width: 31 mm
- Depth: 80 mm
- Height: 103 mm
- Weight: 154 g
Packaging content
- Quick installation guide: Yes
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE
- Certification: FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
