Description

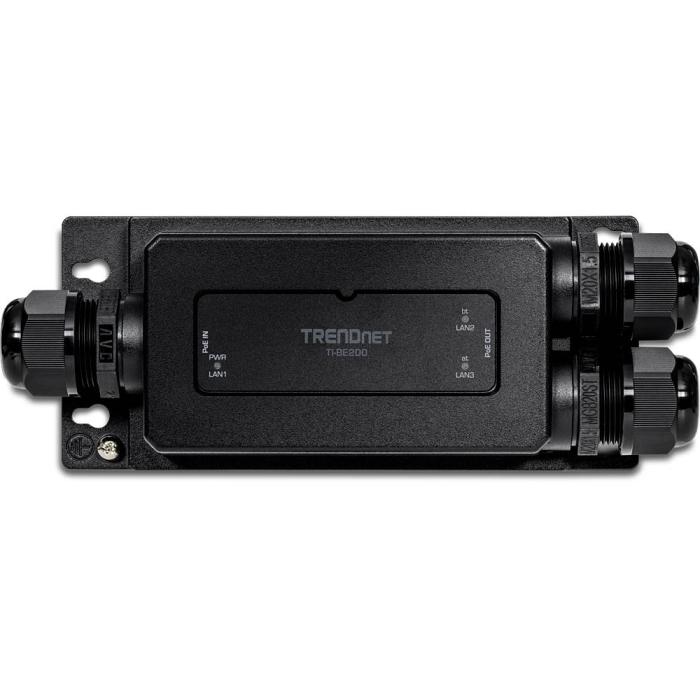

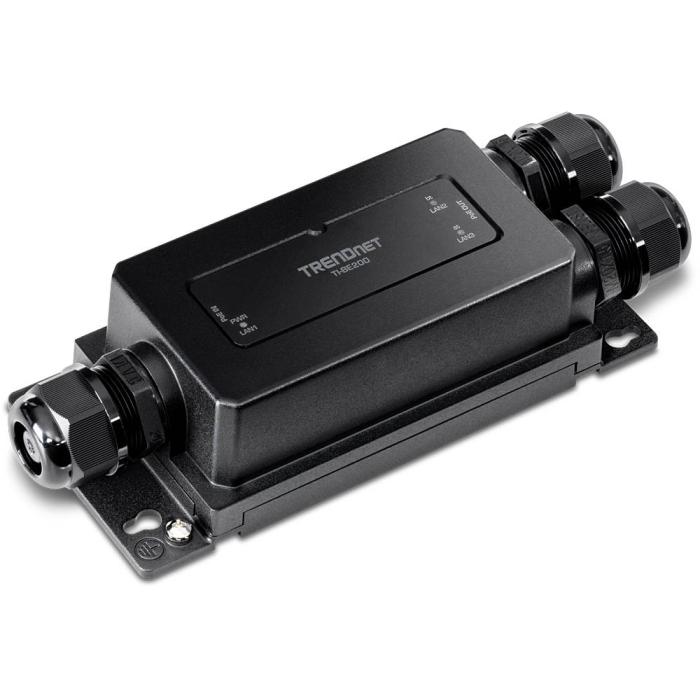

The Trendnet TI-BE200 network extender in black extends your wired network up to 100 metres using 10/100/1000Base-T(X) technology, with three Ethernet LAN RJ-45 ports supporting speeds of 10, 100 and 1000 Mbit/s. This network extender supports Jumbo Frames, full or half duplex mode and a MAC address table of 2048 entries, managing data transfer of up to 2000 Mbit/s. Its rugged design with IP67 rating, FCC certification and wall mounting makes it suitable for demanding environments, while LED indicators facilitate status monitoring. It is powered via PoE with a 60 W budget and consumes only 2.8 W, complying with IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u and IEEE 802.3x standards.
Specifications
Performance
- Jumbo frames support: Yes
- Duplex system: Full, Half
- MAC address table: 2048 entries
- International Protection (IP) code: IP67
- Type: Network transmitter & receiver
- Maximum transfer distance: 100 m
- Data transfer rate: 2000 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Network
- Cabling technology: 10/100/1000Base-T(X)
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Ports & interfaces

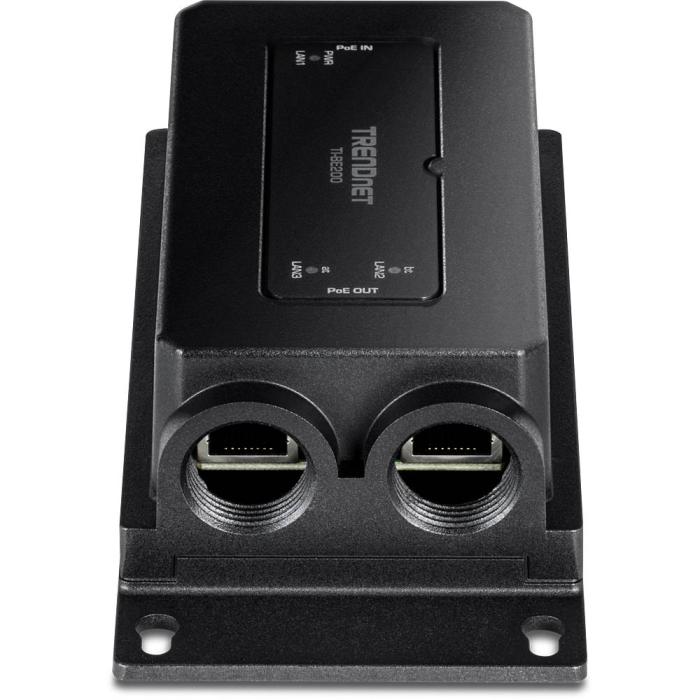

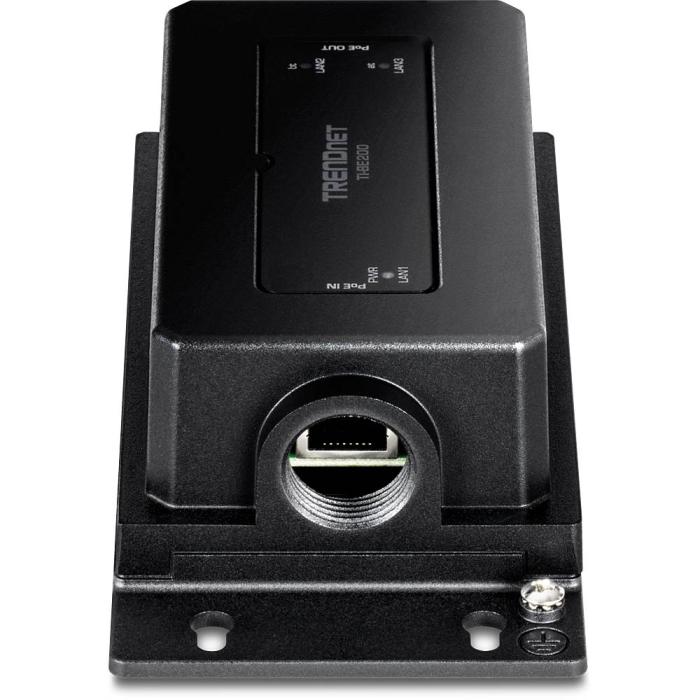

- Ethernet LAN (RJ-45) ports: 3
Design
- Product colour: Black
- Mounting type: Wall
- LED indicators: Yes
- Certification: FCC IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Power
- Power consumption (typical): 2.8 W
- External power adapter: No
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 167 mm
- Depth: 74 mm
- Height: 44 mm
- Weight: 364 g

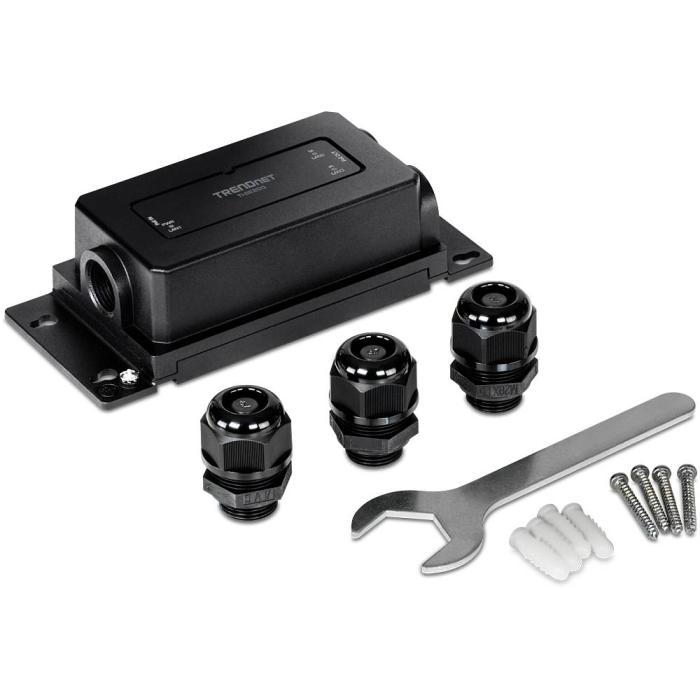

Packaging content
- Quick start guide: Yes
- Wall mounting kit: Yes
- AC adapter included: No
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE
