Description

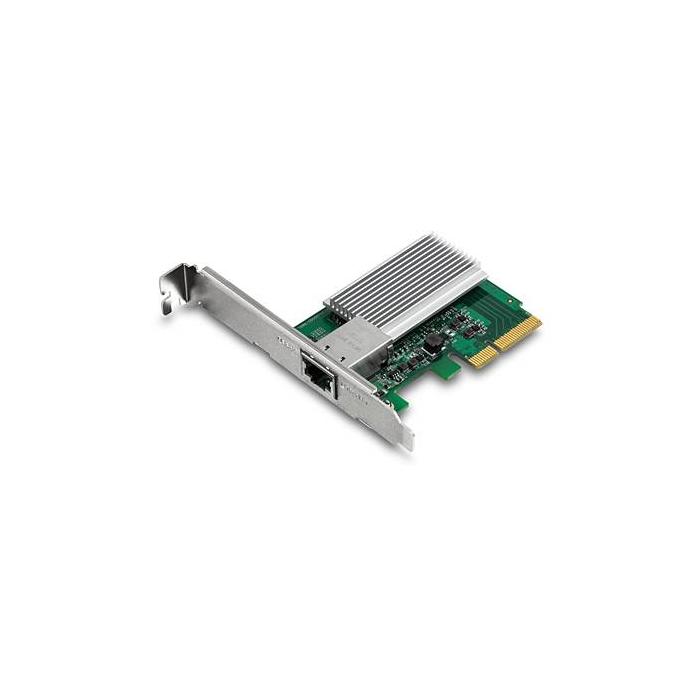

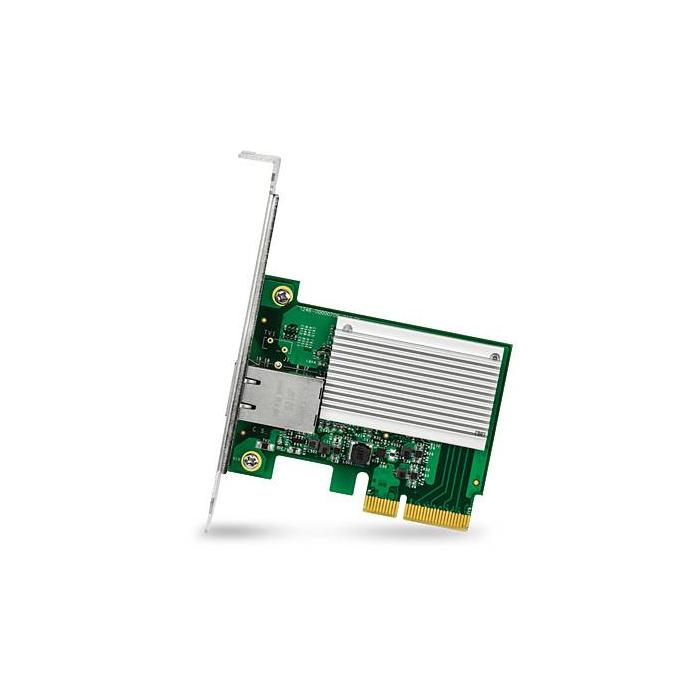

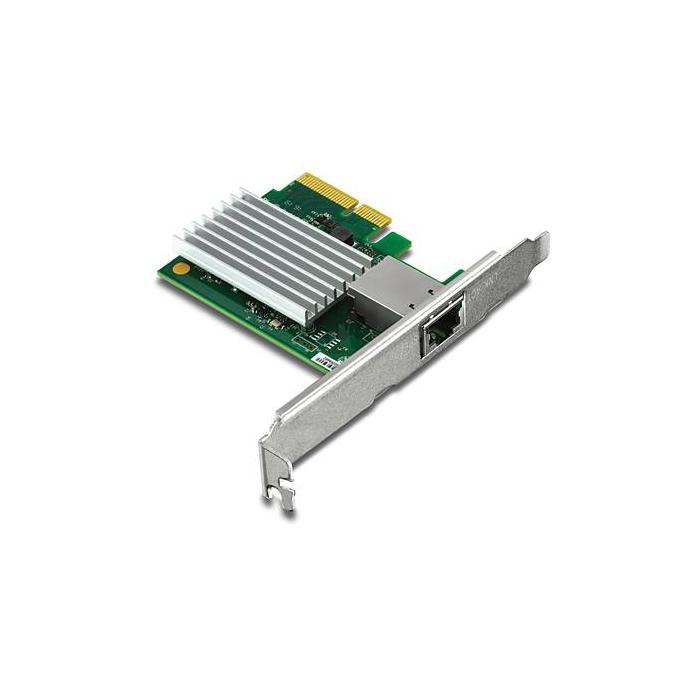

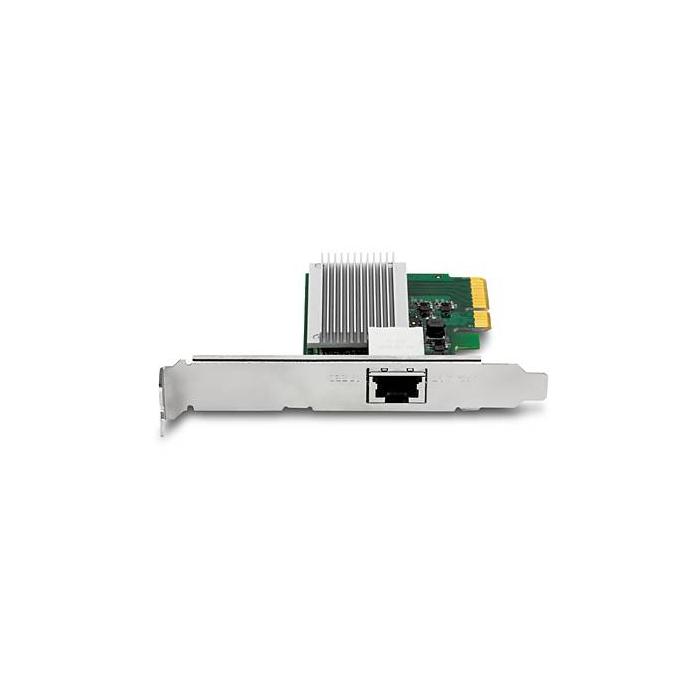

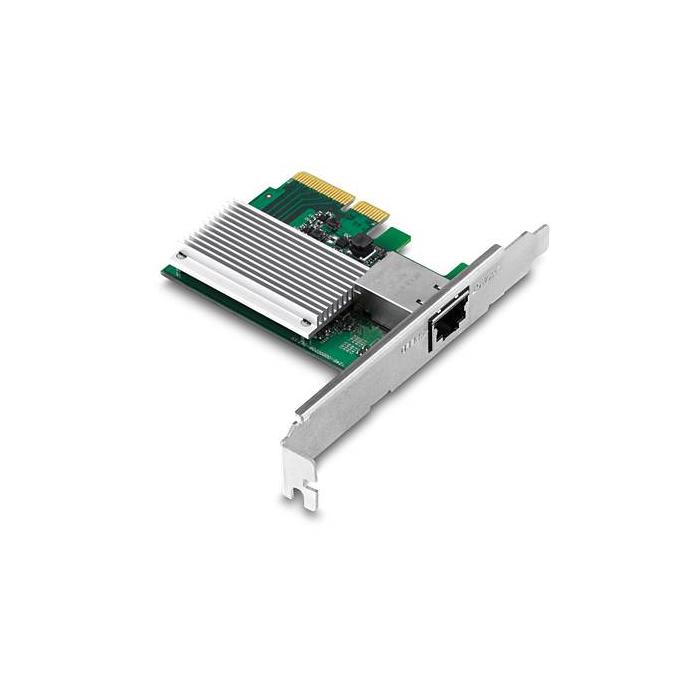

The Trendnet TEG-10GECTX internal network card, in green and grey, connects to your system via a PCI Express host interface to add an RJ-45 Ethernet port. It achieves data transfer speeds of up to 10000 Mbit/s, with support for 10, 100, 1000 and 10000 Mbit/s speeds according to the 10 Gigabit Ethernet standard. It is compatible with jumbo frames up to 16000 bytes, VLAN tagging and the IEEE 802.1Q, 802.3ab, 802.3ad, 802.3an and 802.3u standards, and also includes LED indicators and FCC and CE certification. It works with Linux operating systems and offers wired connectivity via 10BASE-T, 10GBASE-T, 100BASE-TX and 1000BASE-T copper cabling.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
Network
- Maximum data transfer rate: 10000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3u
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000, 10000 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
- Jumbo frames support: Yes
- Jumbo frames: 16000
- VLAN tagging: Yes
Design
- Product colour: Green, Grey
- Internal: Yes
- LED indicators: Yes
- Certification: FCC, CE
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 84 mm
- Depth: 18 mm
- Height: 63 mm
- Weight: 62 g
Packaging data

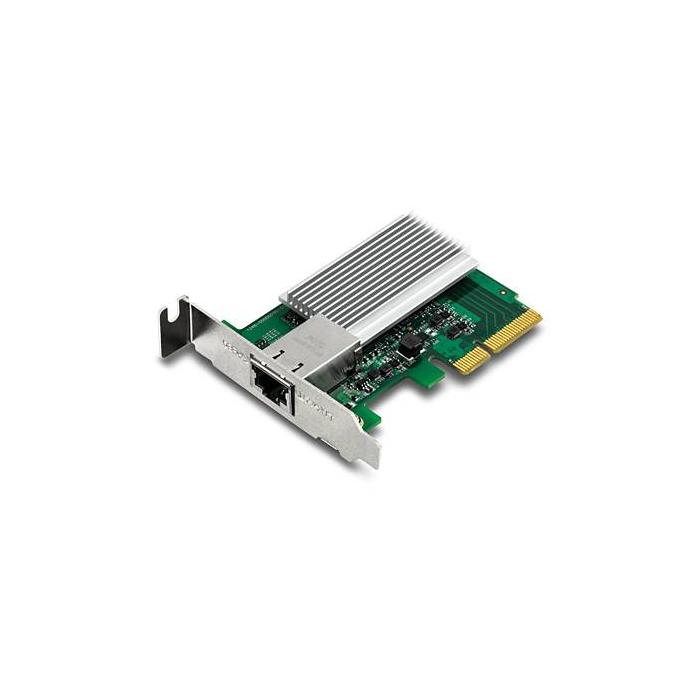

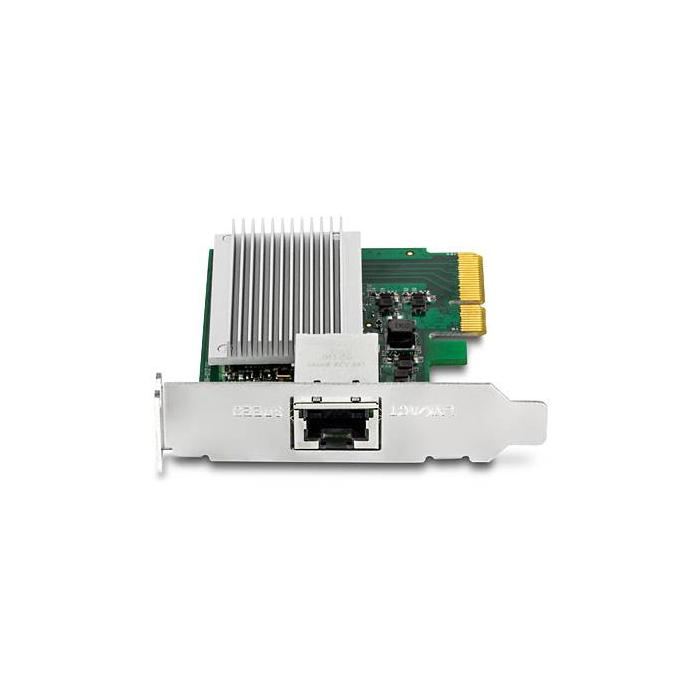

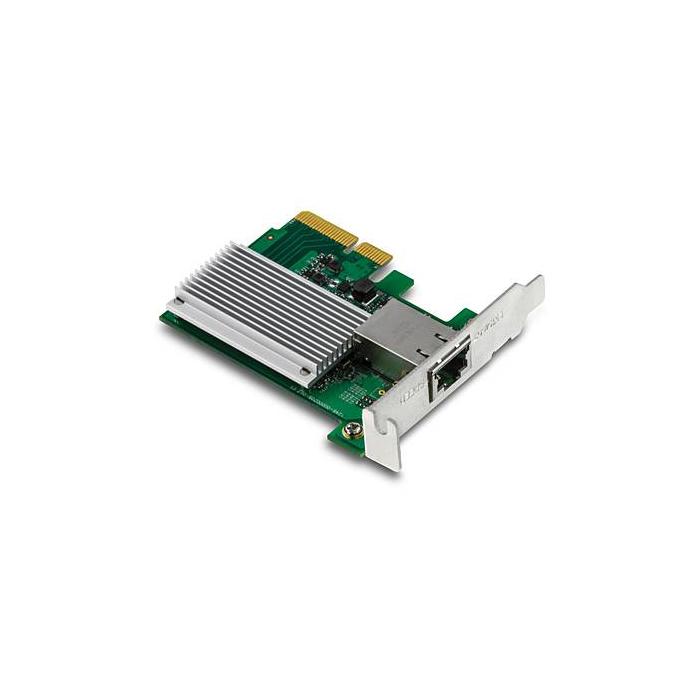

- Low-profile bracket: Yes
Packaging content
- Mounting brackets included: Yes
- Manual: Yes
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Quick start guide: Yes
- Receive Side Scaling (RSS): Yes
