Description

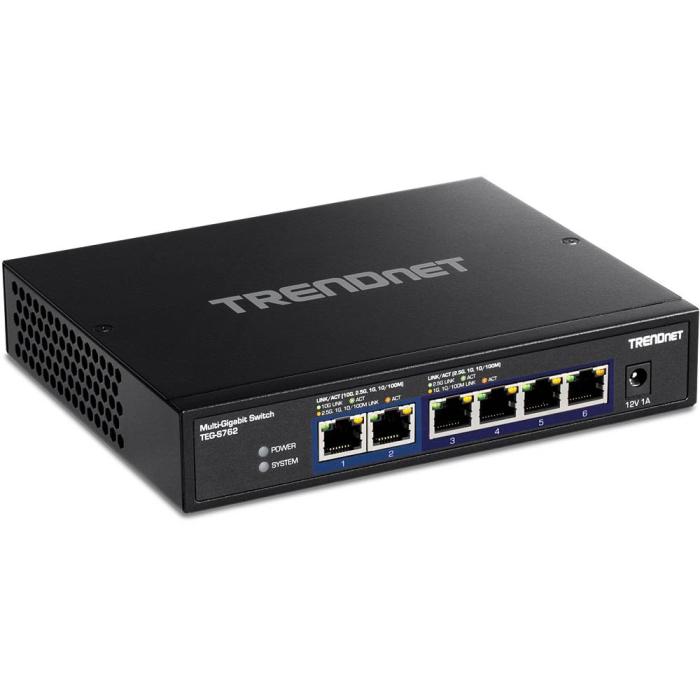

The TRENDNET TEG-S762 switch integrates 6 RJ-45 10G Ethernet ports (100/1000/10000) in a compact form factor without rack mounting, with LED indicators to monitor the status of each connection. Its MAC address table of 16,000 entries and switching capacity of 60 Gbit/s manage intensive traffic with a forwarding rate of 44.64 Mpps, using store-and-forward mode with support for Jumbo Frames and a 2 MB packet buffer. Compatible with IEEE 802.3ab, 802.3an, 802.3az, 802.3bz and 802.3u standards, it supports Cat5e, Cat6 and Cat6a cables for deploying high-speed networks. Its maximum power consumption is 11.9 W with AC input of 100-240 V and a frequency of 50-60 Hz.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 6
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
- 10G support: No
- Cable types supported: Cat5e, Cat6, Cat6a
Data transmission
- Switching capacity: 60 Gbit/s
- Forwarding rate: 44.64 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Packet buffer memory: 2 MB
Design
- Rack mounting: No
- LED indicators: Yes
Performance
- Mean time between failures (MTBF): 379884 h
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 11.9 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 145 mm
- Depth: 180 mm
- Height: 33 mm
- Weight: 2.33 kg
Packaging content
- User guide: Yes
- Cables included: AC
Certificates
- Certification: CE FCC IC
