Description

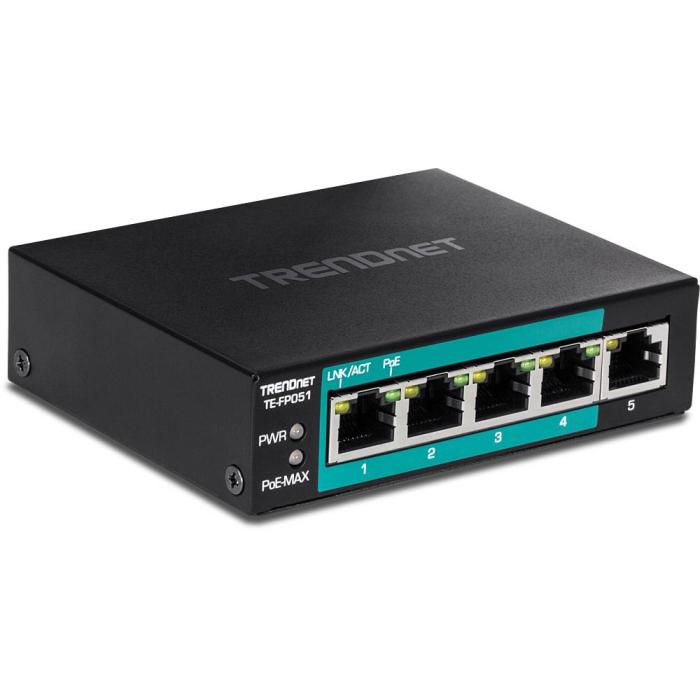

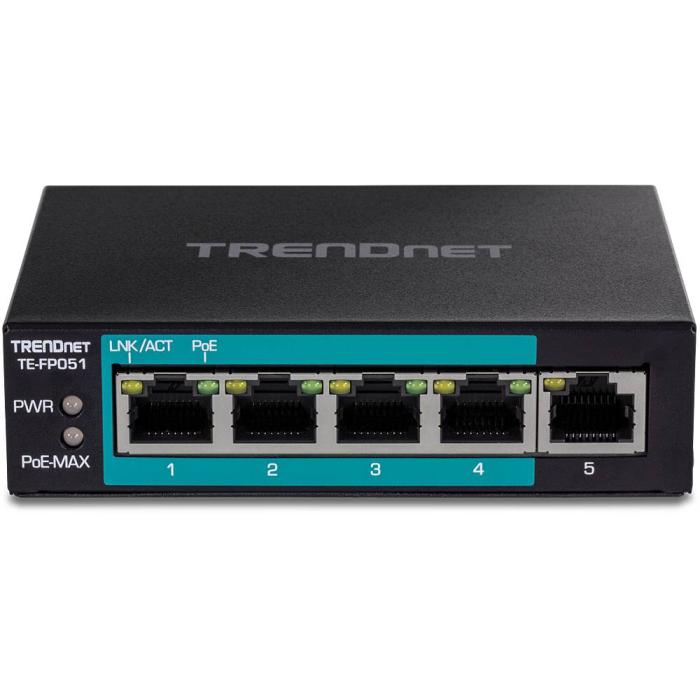

The Trendnet TE-FP051 switch, in a black finish with a metal housing, is an unmanaged switch with five RJ-45 Fast Ethernet (10/100) ports that integrates PoE power supply in accordance with IEEE 802.3af and 802.3at standards. Its switching capacity reaches 1 Gbit/s and the MAC address table supports 1000 entries, with a forwarding rate of 0.744 Mpps. It supports half-duplex and full-duplex transmission, and its operation is based on the IEEE 802.3, 802.3ab, 802.3u, 802.3x and 802.3z standards. With a maximum power consumption of 4.8 W and wall mounting capability, this unit integrates LED indicators and a mean time between failures of 612,220 hours.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Full duplex: Yes
- Half duplex: Yes
- Ethernet LAN data rates: 10,100 Mbit/s
Data transmission
- Switching capacity: 1 Gbit/s
- Forwarding rate: 0.744 Mpps
- MAC address table: 1000 entries
Design
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes

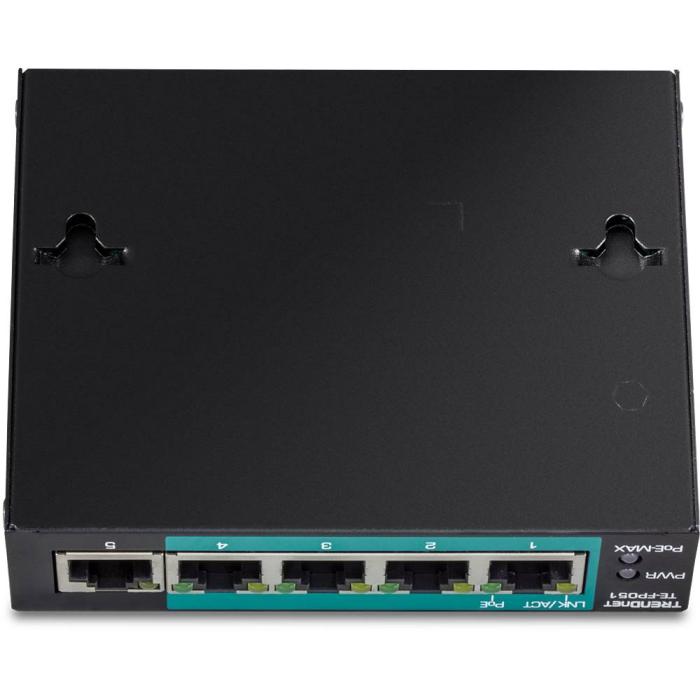

- Wall mountable: Yes
Performance
- Mean time between failures (MTBF): 612220 h
Power

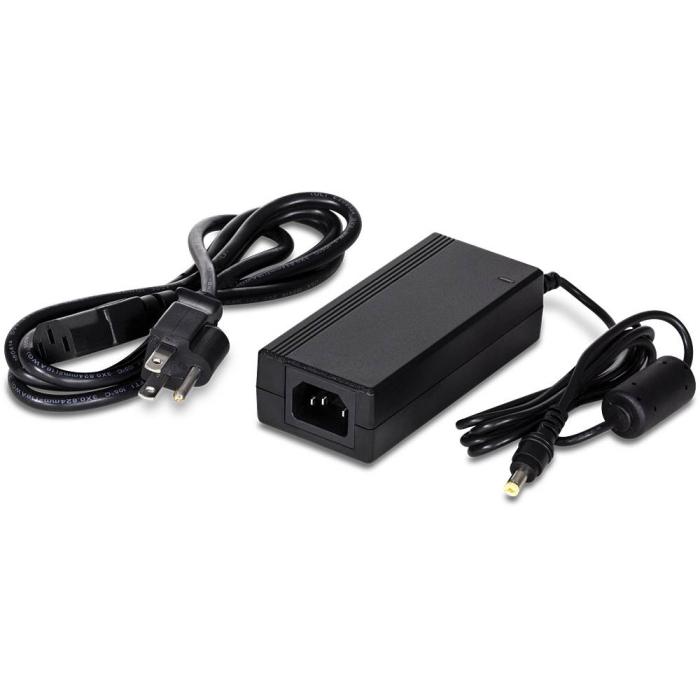

- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz

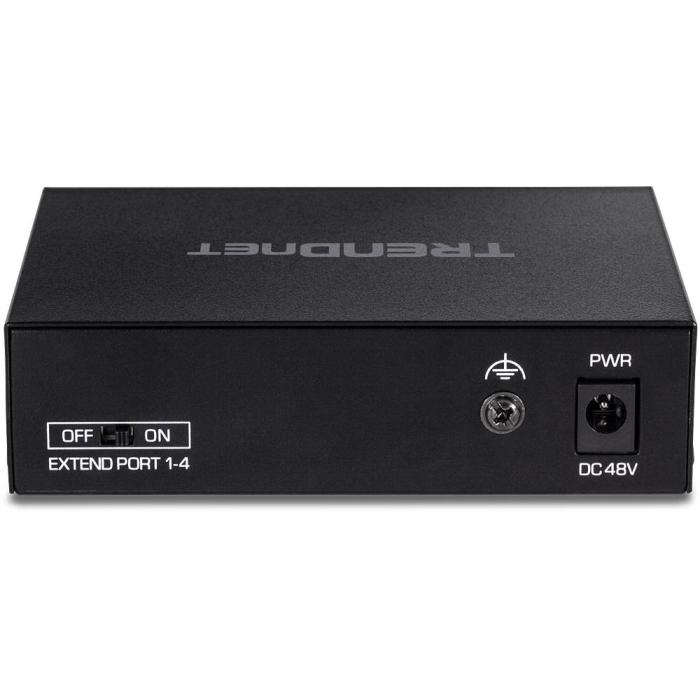

- DC input voltage: 48 V
- Input current: 1.35 A
- Power consumption (typical): 4.8 W
- Power consumption (max): 4.8 W
- Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 105 mm
- Depth: 83 mm
- Height: 28 mm
- Weight: 200 g
Packaging content
- Quick start guide: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
