Description

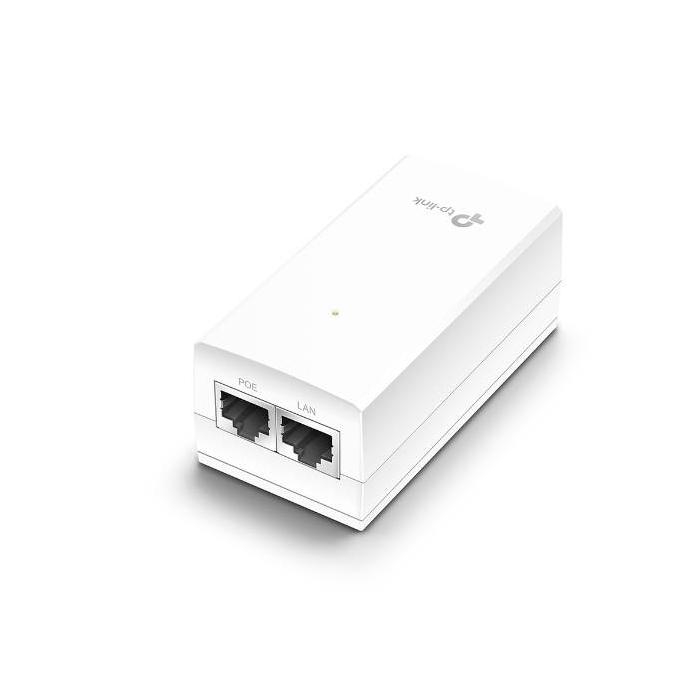

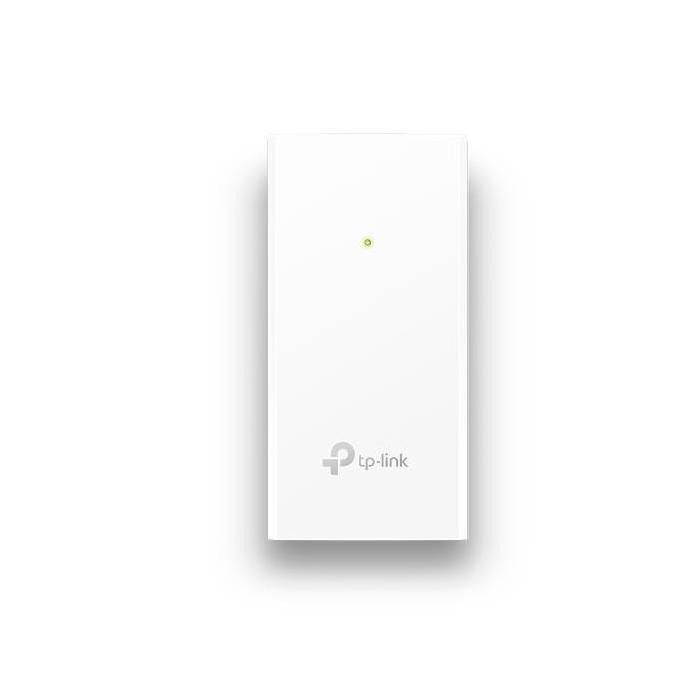

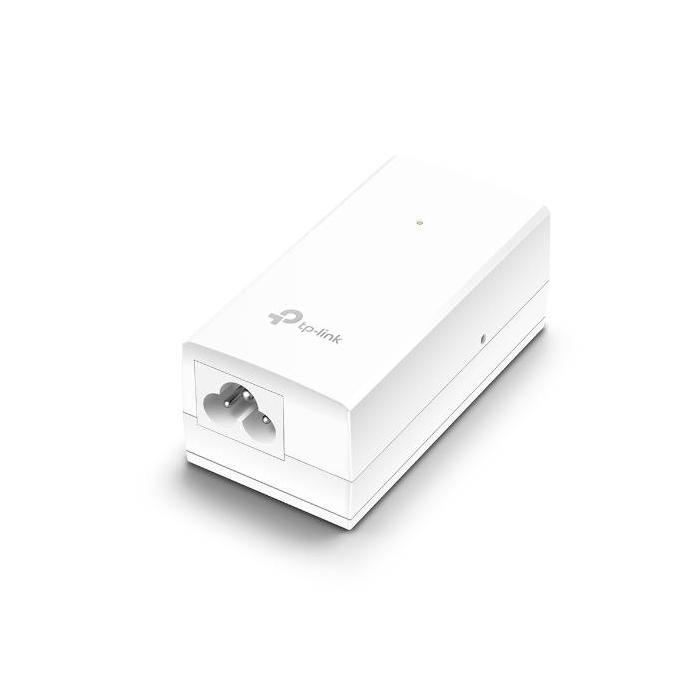

The TP-LINK Gigabit Ethernet PoE adapter and injector powers network devices through the Ethernet cable itself. With a compact white format and dimensions of 85.8 x 35 x 43.9 mm (width x height x depth), it incorporates two Ethernet LAN ports (RJ-45) and supports speeds of 10, 100 and 1000 Mbit/s over Cat3, Cat4, Cat5, Cat5e and Cat6 cabling. Its Gigabit Ethernet technology and auto-negotiation function adjust the link to the available capacity, while Auto MDI/MDI-X resolves the connection without crossover cables. It provides Power over Ethernet at 24 V with an output power of 12 W, enough to power compatible equipment in installations of up to 100 m maximum distance. The LED indicator shows the power status and the Plug and Play function allows it to be started up without configuration. You can fix it to the wall thanks to its wall mounting and it has FCC, CE and RoHS certification.
Specifications
Network
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Cabling technology: 10/100/1000
- Power over Ethernet (PoE): Yes
- Auto MDI/MDI-X: Yes
- Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Features
- Product colour: White
- Wall mountable: Yes
- Plug and Play: Yes
- Maximum operating distance: 100 m
- LED indicators: Power
- Auto-negotiation: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
Power
- Power over Ethernet (PoE) voltage: 24 V
- Output power: 12 W
Certificates
- Compliance certificates: RoHS
- Certification: FCC, CE, RoHS
Operational conditions
- Operating temperature (T-T): 32 - 104 °F
- Operating relative humidity (H-H): 10 - 90%
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 85.8 mm
- Depth: 43.9 mm
- Height: 35 mm
- Dimensions (WxDxH): 43.9 x 85.8 x 35 mm
Packaging content
- Number of products included: 1 pc(s)
- Wall mounting kit: Yes
- Power cord included: Yes
Packaging data
- Package width: 125 mm
- Package depth: 180 mm
- Package height: 60 mm
- Package weight: 290 g
Logistics data
- Harmonized System (HS) code: 85044095
