Description

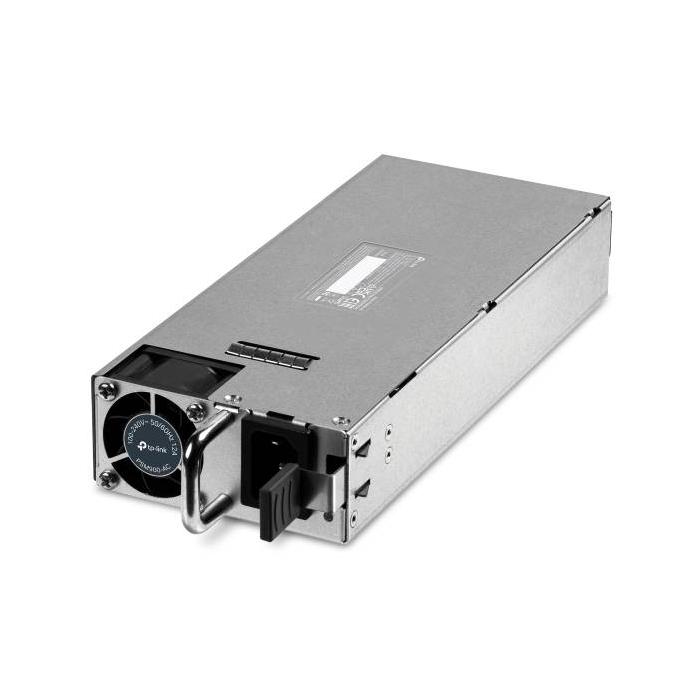

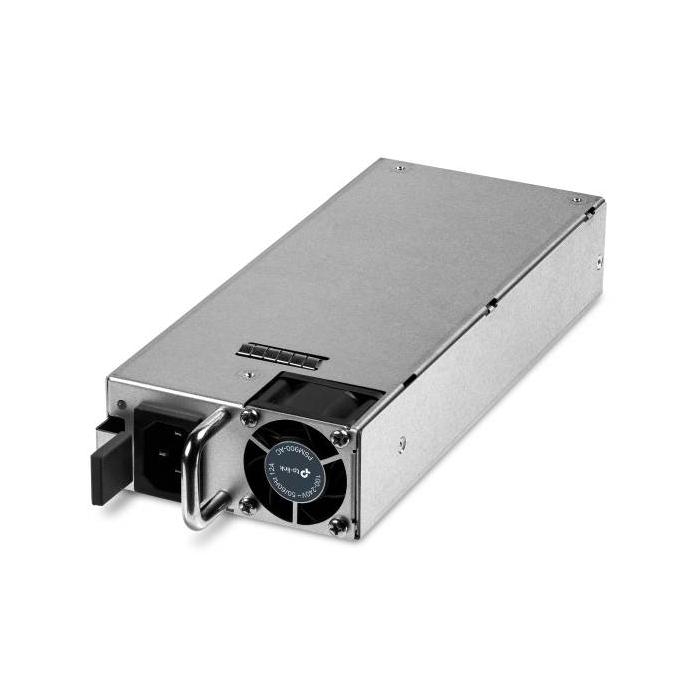

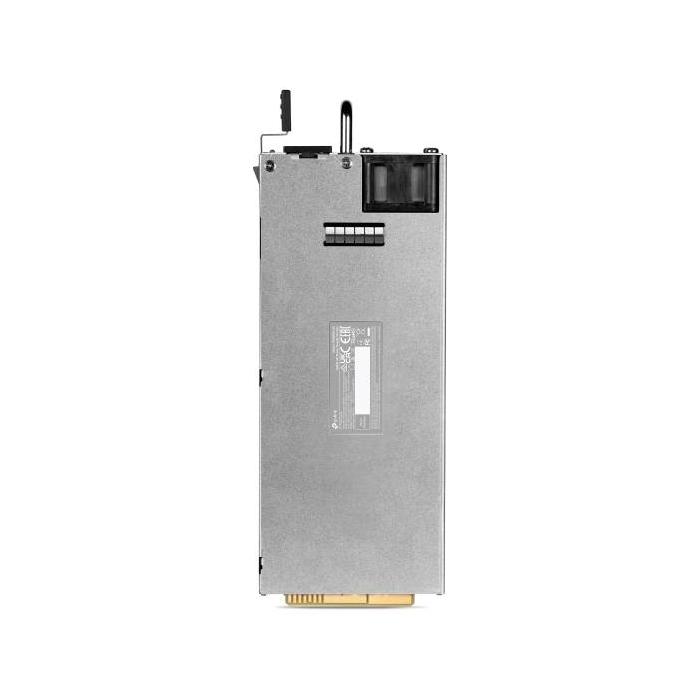

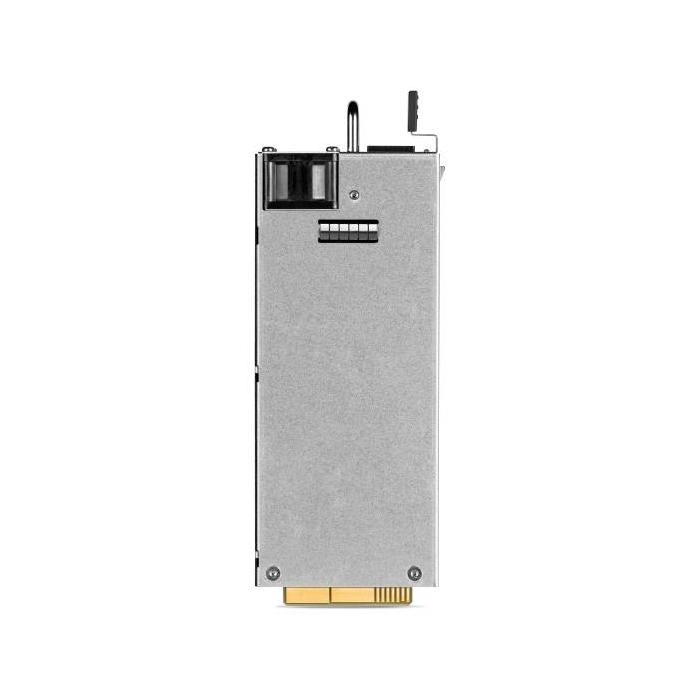

Metallic 900 W power supply unit from TP-Link, model PSM900-AC, designed for rack mounting and intended for network equipment such as the SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y and S6500-48MPP6Y switches. It accepts AC input voltage from 100 to 240 V with a frequency of 50/60 Hz, supporting a maximum current of 12 A at 110 V and 10 A at 220 V. It includes protections against overcurrent, overvoltage, short circuit and undervoltage, along with LED indicators to monitor its status. It operates in a temperature range of 0 to 45 °C and supports storage from -40 to 70 °C, with a relative operating humidity of 10 to 90 %.
Specifications
Power
- Total power: 900 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Maximum input current (@110V): 12 A
- Maximum input current (@220V): 10 A
- Power protection features: Over current, Over voltage, Short circuit, Under voltage
Performance
- Compatible products: SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
Design
- Product colour: Metallic
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 95.8 mm
- Depth: 259.5 mm
- Height: 40.1 mm
Logistics data
- Quantity per pack: 1 pc(s)
Other features
- Mounting type: Rack mounting
