Description
AISENS power supply with TFX form factor, 500 W in black, designed for compact builds requiring a reliable and tidy power solution. It operates with an input voltage of 220 V and a frequency of 50/60 Hz, offering a maximum output current of 20 A on the +12 V rail, along with 28 A on +3.3 V and 30 A on +5 V to cover the needs of conventional components. It includes protections against overcurrent, overvoltage, undervoltage, short circuit, surge, and overheating, contributing to safe system operation.
Specifications
Power
- Total power: 500 W
- AC input voltage: 220 V
- AC input frequency: 50/60 Hz
- Input current: 2.5 - 5 A
- Max output current (+3.3V): 28 A
- Max output current (+12V): 20 A
- Max output current (+5V): 30 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Under voltage, Short circuit, Over power, Overheating
Ports & interfaces

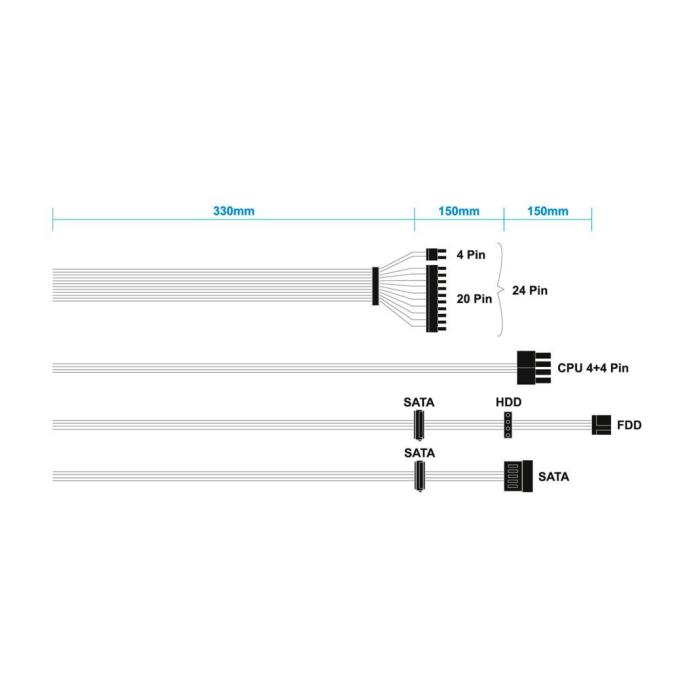

- ATX power connector (20+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 35 cm
- Number of SATA power connectors: 2
- SATA power cable length: 480, 330 mm
- Peripheral (Molex) power connectors (4-pin): 1
- Peripheral (Molex) power cable length: 480, 330, 630 mm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 50 cm
Performance
- Purpose: PC
- Power supply unit (PSU) form factor: TFX
- ATX version: 2.0
Design
- Product colour: Black
- Fan diameter: 8 cm
- Number of fans: 1 fan(s)
Certificates
- Compliance certificates: CE, RoHS

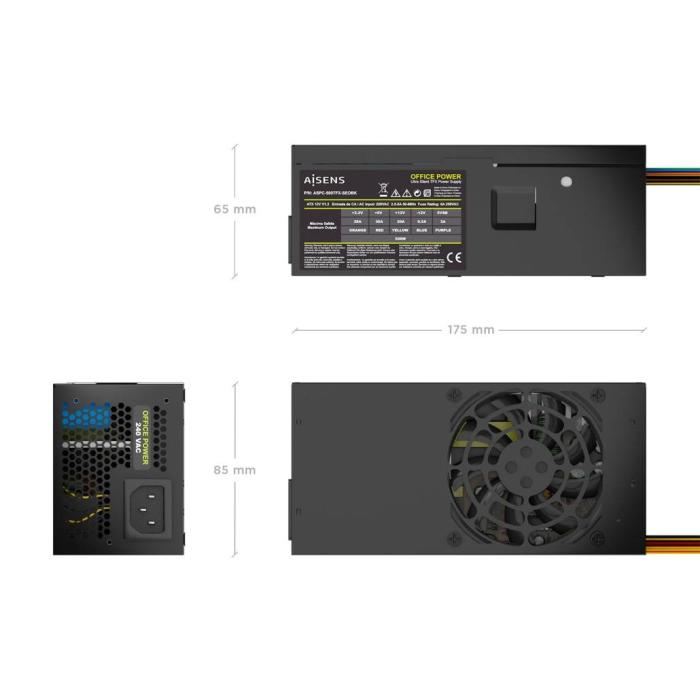

Weight & dimensions
- Width: 175 mm
- Depth: 85 mm
- Height: 65 mm
Packaging data
- Manual: Yes
- Package width: 120 mm
- Package depth: 250 mm
- Package height: 75 mm
- Package weight: 894 g
- Package type: Box
Logistics data
- Master (outer) case width: 265 mm
- Master (outer) case length: 410 mm
- Master (outer) case height: 285 mm
- Master (outer) case net weight: 8.94 kg
- Master (outer) case volume: 30965 cm³
- Products per master (outer) case: 10 pc(s)
Other features
- Package volume: 2250 cm³
