Description
TP-Link Omada EAP225-Outdoor, 2.4 GHz, 5 GHz, 1200 Mbit/s, 802.1x RADIUS, 10,100,1000 Mbit/s
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 1200 Mbit/s
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.4 - 5 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
- MIMO: Yes
- MIMO type: Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
- Virtual LAN features: VLAN mapping
- Rate limiting: Yes
- Band steering: Yes
- Airtime Fairness (ATF): Yes
- Quality of Service (QoS) support: Yes
- BeamForming: Yes
- Transmitting power (CE): 27 dBm
- Transmitting power (FCC): 22 dBm
Security
- Security algorithms: 802.1x RADIUS
- MAC address filtering: Yes
- Service Set Identifier (SSID) features: Multiple SSIDs
- Number of SSID supported: 16
- Access Control List (ACL): Yes
Management features
- Web-based management: Yes
- Syslog: Yes
Ports & interfaces

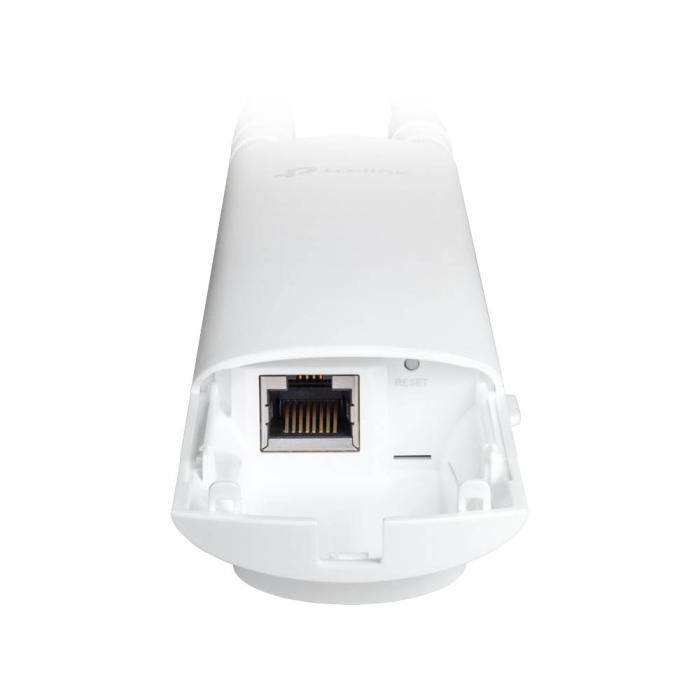

- Ethernet LAN (RJ-45) ports: 1
Power
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Passive PoE
- Output voltage: 24 V
- Power consumption (typical): 10.5 W
Design

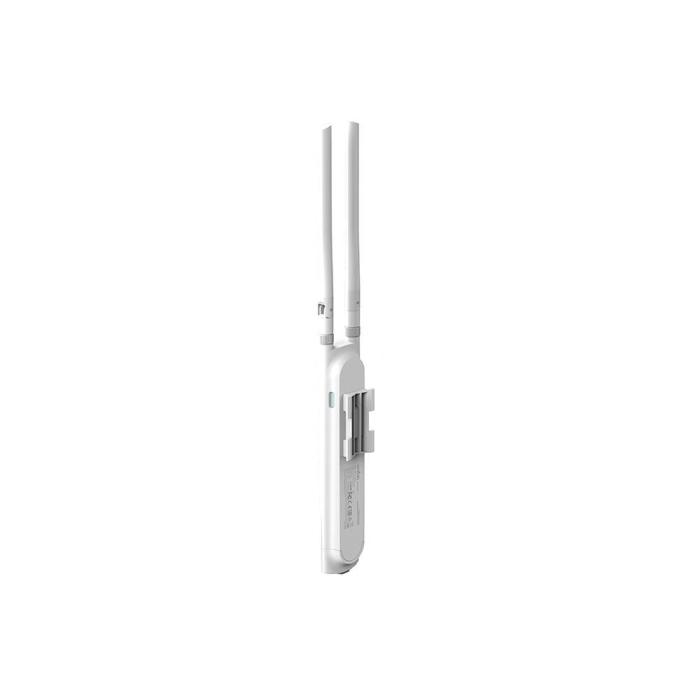

- Placement: Pole, Wall
- Product colour: White
- International Protection (IP) code: IP65
- Reset button: Yes
Antenna
- Antenna type: External
- Antenna direction type: Omni-directional
- Antenna features: Detachable antenna
- Antennas quantity: 2
- Antenna gain level (max): 4 dBi
Performance
- Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
- Width: 215 mm
- Depth: 46 mm
- Height: 27 mm
Packaging data
- Package width: 140 mm
- Package depth: 270 mm
- Package height: 100 mm
- Package weight: 640 g

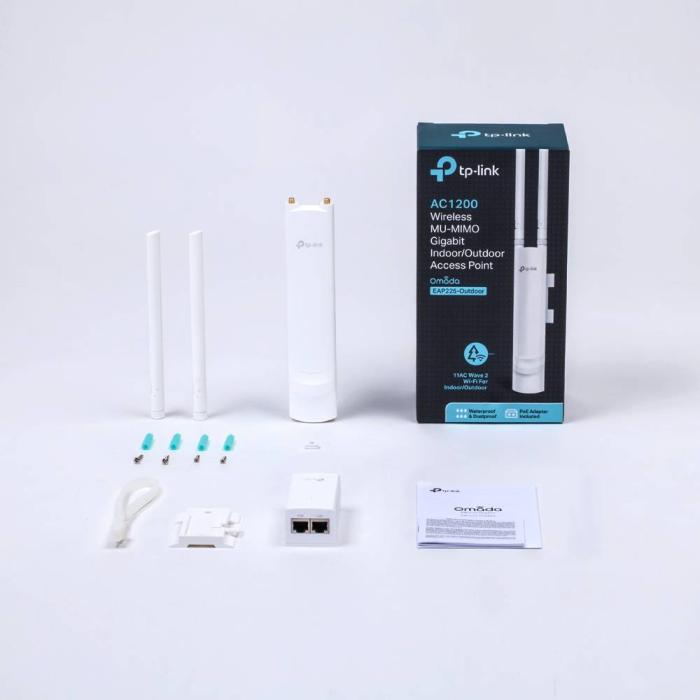

Packaging content
- Quantity per pack: 1 pc(s)
- AC adapter included: Yes
- Mounting kit: Yes
- Quick start guide: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -30 - 70 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
Sustainability
- Sustainability compliance: Yes
Logistics data
- Harmonized System (HS) code: 85176990
