Description
The TP-Link Omada EAP225 wireless access point, in white, offers a maximum data transfer rate of 1350 Mbit/s thanks to its simultaneous operation in the 2.4 GHz and 5 GHz bands, with 450 Mbit/s and 867 Mbit/s respectively. It incorporates Multi User MIMO, BeamForming and band steering technology, as well as ATF connection fairness to optimise network performance. Its 10/100/1000Base-T(X) cabling supports Power over Ethernet in accordance with the IEEE 802.3af standard, which simplifies installation. It is compatible with the IEEE 802.11a, ac, b, g and n standards, and supports VLAN with VLAN mapping. It also features Wi-Fi Multimedia (WMM/WME) and a rate limiting function. With dimensions of 205.5 x 37.1 x 181.5 mm (width x height x depth), it reaches a transmission power of 23 dbm (CE) and 24 dbm (FCC).
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 1350 Mbit/s
- Maximum data transfer rate (2.4 GHz): 450 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
- MIMO: Yes
- MIMO type: Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
- Virtual LAN features: VLAN mapping
- Rate limiting: Yes
- Band steering: Yes
- Airtime Fairness (ATF): Yes
- Quality of Service (QoS) support: Yes
- BeamForming: Yes
- Transmitting power (CE): 23 dBm
- Transmitting power (FCC): 24 dBm
Security
- Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
- MAC address filtering: Yes
- Service Set Identifier (SSID) features: Multiple SSIDs
- Number of SSID supported: 16
- Access Control List (ACL): Yes
Management features
- Web-based management: Yes
- Syslog: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Passive PoE
- Output voltage: 12 V
- Output current: 1.5 A
- Power consumption (typical): 10.15 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- On/off switch: Yes
- Reset button: Yes
- LED indicators: Power, WLAN
Antenna
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antennas quantity: 5
- Antenna gain level (max): 5 dBi
- Antenna type: Internal
Performance
- Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Mobile network
- SIM card slot: No
Weight & dimensions
- Width: 205.5 mm
- Depth: 181.5 mm
- Height: 37.1 mm
Packaging data
- Package width: 228 mm
- Package depth: 340 mm
- Package height: 65 mm
- Package weight: 910 g
- Package type: Box

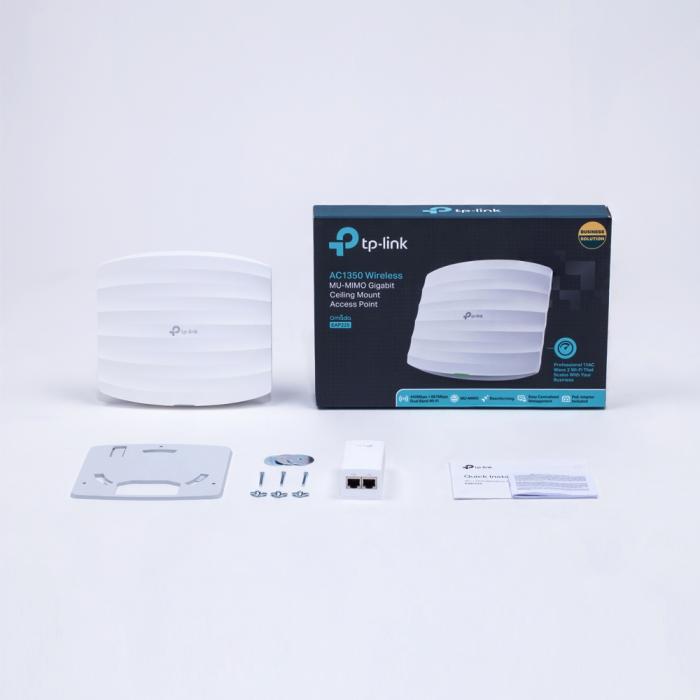

Packaging content
- Quantity per pack: 1 pc(s)
- AC adapter included: Yes
- PoE adapter included: Yes
- Mounting kit: Yes
- Quick start guide: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
Sustainability
- Sustainability compliance: Yes
Logistics data
- Harmonized System (HS) code: 85176990
