Description

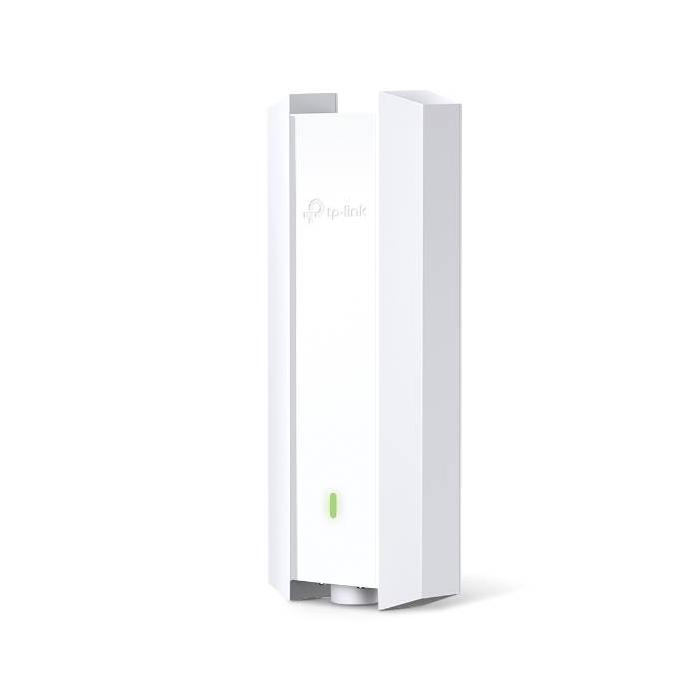

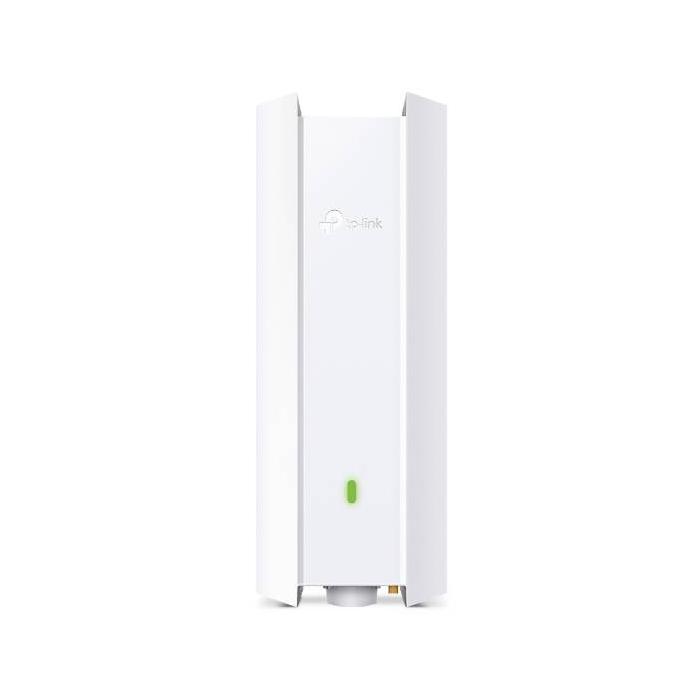

The TP-Link Omada EAP610-Outdoor access point is a white device with a maximum data transfer rate of 1800 Mbit/s, split into 574 Mbit/s on the 2.4 GHz band and 1201 Mbit/s on the 5 GHz band. It operates on the 2.4 - 5 GHz frequency band, features Power over Ethernet (PoE) and mounts an internal antenna with a maximum gain of 5 dBi. It offers one Ethernet LAN (RJ-45) port with a speed of 10 / 100 / 1000 Mbit/s and supports up to 16 SSIDs and 250 users. Its MIMO type is Multi User MIMO and it supports WEP, WPA, WPA2 and WPA3 security algorithms. Management is carried out through the Omada platform, with web-based administration, SNMP v1/v2c and Syslog management protocols. It has an IP67 code and can be installed on a pole or wall, with dimensions of 280.4 x 56.9 x 106.5 mm (width x height x depth).
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 1800 Mbit/s
- Maximum data transfer rate (2.4 GHz): 574 Mbit/s
- Maximum data transfer rate (5 GHz): 1201 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.4 - 5 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Number of users: 250 user(s)
- Automatic channel selection: Yes
- Automatic channel scanning: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
- Rate limiting: Yes
- Wireless isolation: Yes
- Band steering: Yes
- Quality of Service (QoS) support: Yes
- BeamForming: Yes
Security
- Security algorithms: WEP, WPA, WPA2, WPA3
- MAC address filtering: Yes
- Number of SSID supported: 16
- Remote Authentication Dial-In User Service (RADIUS): Yes
Protocols
- Management protocols: SNMP v1/v2c
Management features
- Web-based management: Yes
- Syslog: Yes
- Management platform: Omada
Ports & interfaces

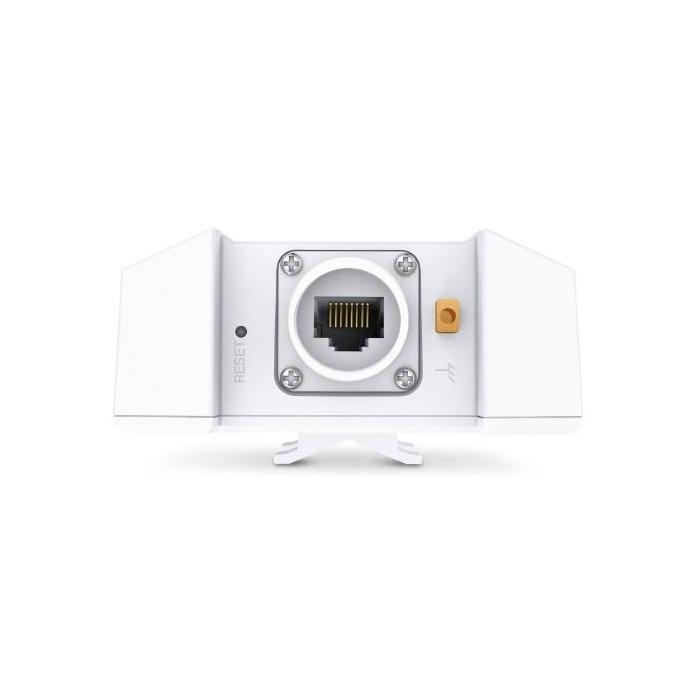

- Ethernet LAN (RJ-45) ports: 1
Power
- Power over Ethernet (PoE): Yes
Design

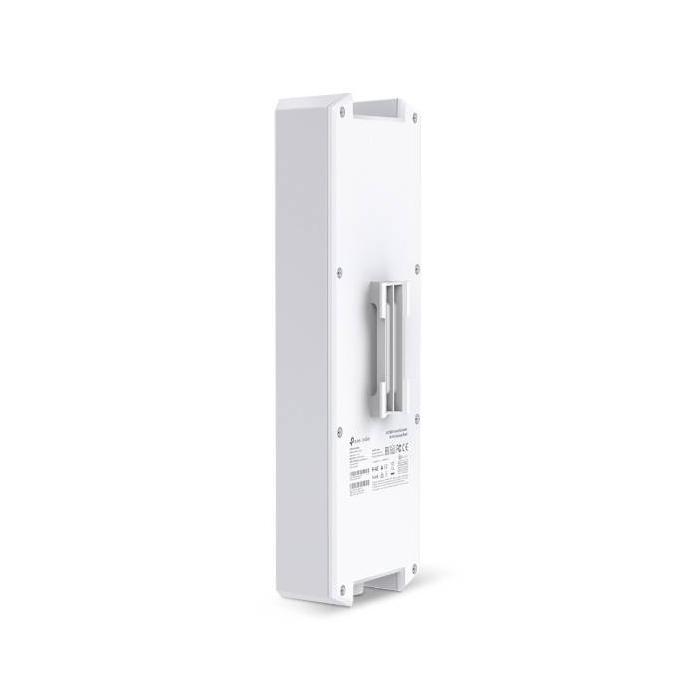

- Placement: Pole, Wall
- Product colour: White
- International Protection (IP) code: IP67
- LED indicators: Yes
Antenna
- Antenna type: Internal
- Antenna features: Integrated antenna
- Antenna gain level (max): 5 dBi
Weight & dimensions
- Width: 280.4 mm
- Depth: 106.5 mm
- Height: 56.9 mm
Packaging data
- Package width: 241 mm
- Package depth: 325 mm
- Package height: 67 mm
- Package weight: 1.29 kg
Packaging content
- Quantity per pack: 1 pc(s)
- PoE adapter included: Yes
- Mounting kit: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -30 - 70 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
Logistics data
- Harmonized System (HS) code: 85176990
