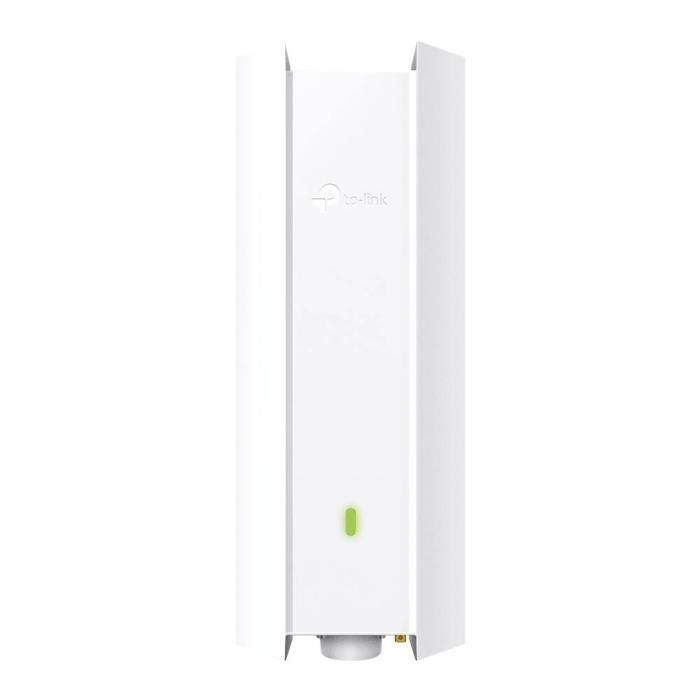

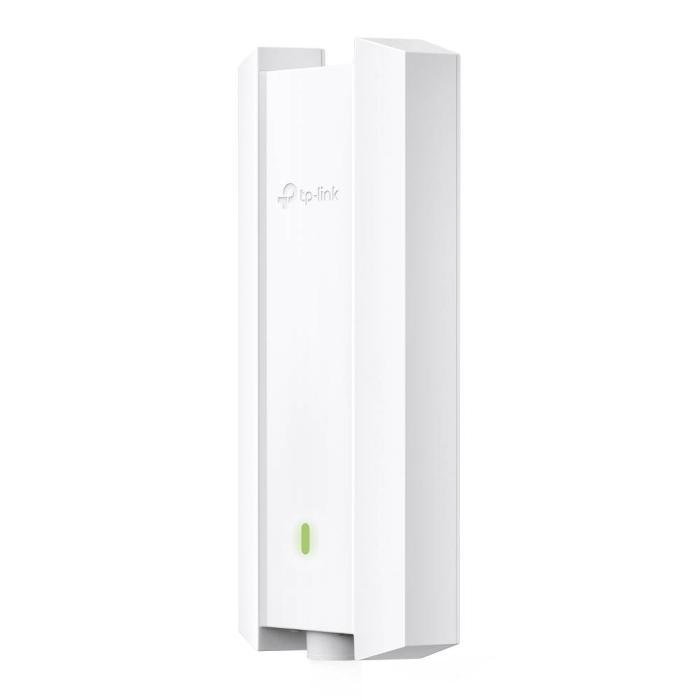

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point, 2.4 GHz, 5 GHz, 1800 Mbit/s, SNMP, SNMPv2, SNMPv3, SSH, 10,100,1000 Mbit/s

Specifications

Features


  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • 6 GHz: No
  • Maximum data transfer rate: 1800 Mbit/s
  • Maximum data transfer rate (2.4 GHz): 574 Mbit/s
  • Maximum data transfer rate (5 GHz): 1201 Mbit/s
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Frequency band: 2.4 - 5 GHz
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Cabling technology: 10/100/1000Base-T(X)
  • Number of users: 1020 user(s)
  • Automatic channel selection: Yes
  • Automatic channel scanning: Yes
  • MIMO: Yes
  • MIMO type: Multi User MIMO
  • VLAN support: Yes
  • Rate limiting: Yes
  • Band steering: Yes
  • Airtime Fairness (ATF): Yes
  • Quality of Service (QoS) support: Yes
  • BeamForming: Yes
  • Transmitting power (CE): < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
  • Transmitting power (FCC): < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

Security


  • Security algorithms: SNMP, SNMPv2, SNMPv3, SSH
  • MAC address filtering: Yes
  • Remote Authentication Dial-In User Service (RADIUS): Yes
  • Access Control List (ACL): Yes

Management features


  • Web-based management: Yes
  • Syslog: Yes

Ports & interfaces

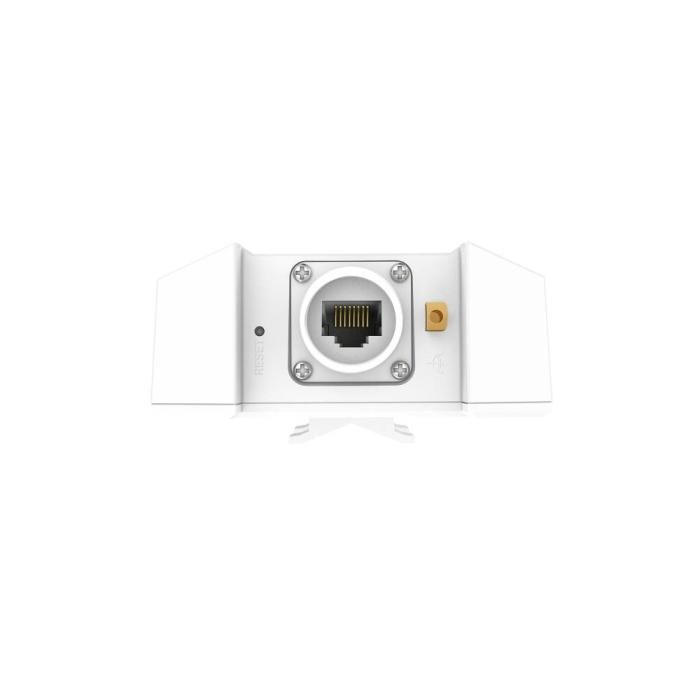

  • Ethernet LAN (RJ-45) ports: 1

Power


  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: Passive PoE

Design


  • Placement: Pole
  • Product colour: White
  • Reset button: Yes
  • LED indicators: Yes

Antenna


  • Antenna type: Internal
  • Antenna direction type: Omni-directional
  • Antenna features: Integrated antenna
  • Antennas quantity: 2

Certificates


  • Certification: CE, FCC, RoHS

Weight & dimensions


  • Width: 280.4 mm
  • Depth: 106.5 mm
  • Height: 56.8 mm

Packaging content


  • Quantity per pack: 1 pc(s)

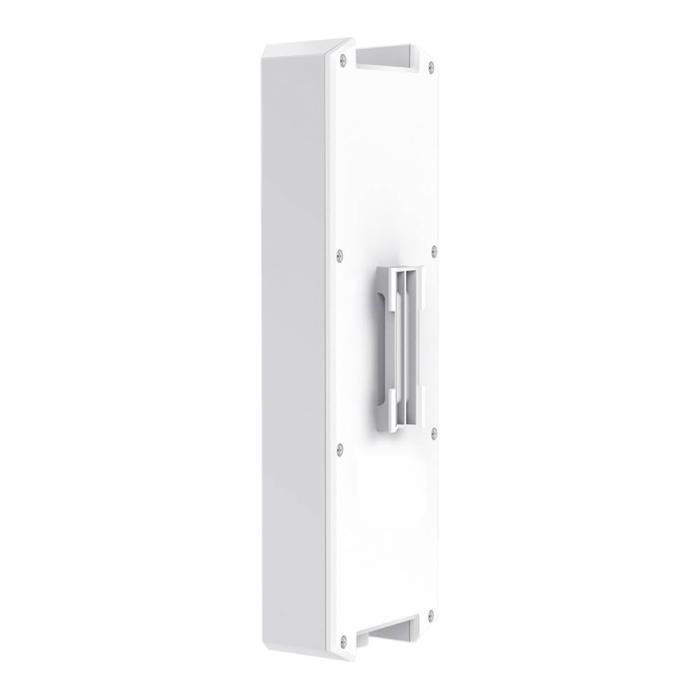

  • Mounting kit: Yes
  • Quick start guide: Yes

Operational conditions


  • Operating relative humidity (H-H): 10 - 90%
  • Operating temperature (T-T): -30 - 70 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Storage relative humidity (H-H): 5 - 90%
