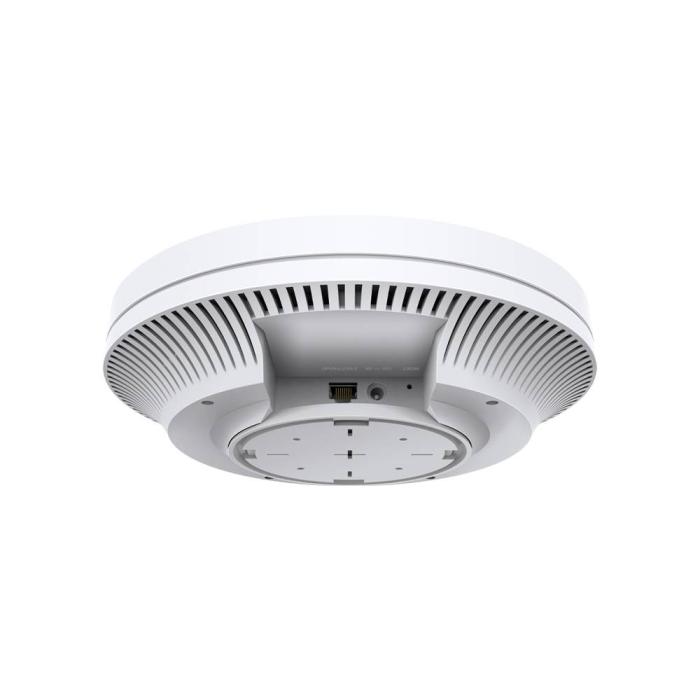

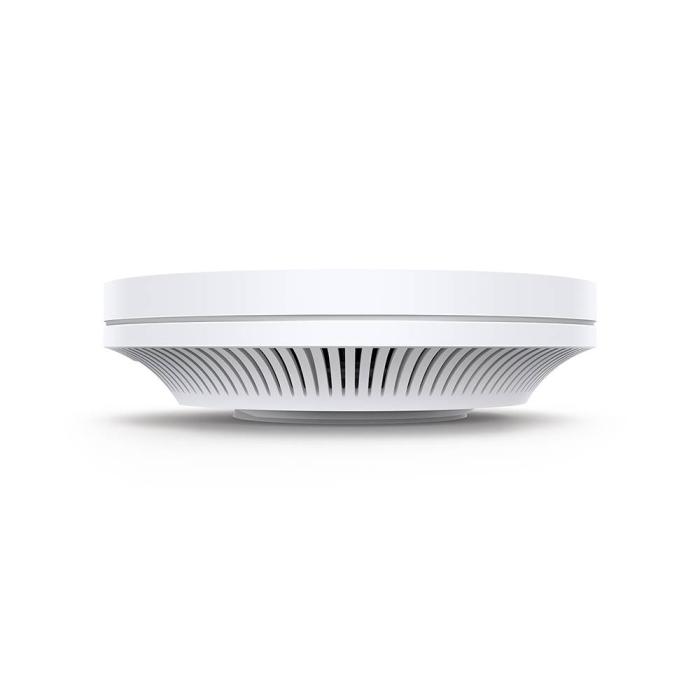

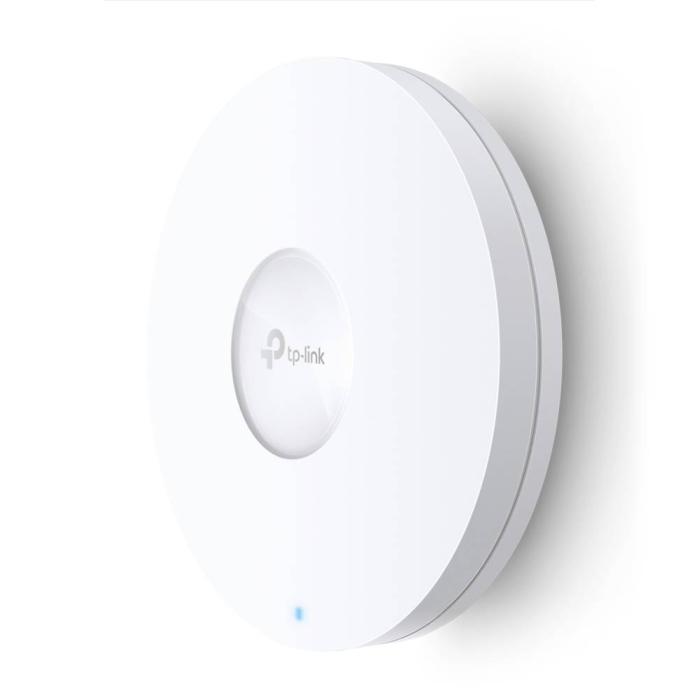

Name: TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point
Brand: TP-LINK
Price: 125.69 USD
Availability: InStock

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point

$125.69

$125.69 without VAT

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point. More info

Amount

Brand: TP-LINK

SKU: 86948 PRC: 309135 EAN: 6935364030742 PN: EAP620 HD

Description

Specifications

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 1201 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Number of users: 1020 user(s)
Automatic channel selection: Yes
Automatic channel scanning: Yes
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Fit AP mode features: Mesh networking
VLAN support: Yes
Rate limiting: Yes
Flow control support: Yes
Band steering: Yes
Airtime Fairness (ATF): Yes
Quality of Service (QoS) support: Yes
BeamForming: Yes
Transmitting power (CE): 20/23 dBm
Transmitting power (FCC): 23 dBm

Security

Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
MAC address filtering: Yes
Remote Authentication Dial-In User Service (RADIUS): Yes
Access Control List (ACL): Yes

Management features

Web-based management: Yes
Syslog: Yes
Firmware upgradeable: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Active PoE, Passive PoE
DC voltage range: 12 V

Design

Placement: Ceiling, Wall
Product colour: White
Reset button: Yes
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional

Certificates

Certification: CE, FCC, RoHS

Weight & dimensions

Width: 160 mm
Depth: 160 mm
Height: 33 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Mounting kit: Yes
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
