Description
The TP-Link Omada EAP235-Wall access point, in white, brings network connectivity to the wall with dimensions of 143 x 20 x 86 mm. It offers dual band with 300 Mbit/s on 2.4 GHz and 867 Mbit/s on 5 GHz, over a frequency band of 2.4 to 5 GHz. It incorporates multiuser MIMO and BeamForming to optimise coverage, as well as Band steering and automatic channel selection, which distribute clients between both bands. It supports the IEEE 802.11a, ac, b, g, n, 802.1x, 802.3af and 802.3at standards, with 10/100/1000Base-T(X) cabling technology and Ethernet LAN speeds of 10, 100 and 1000 Mbit/s. Transmission power reaches 20 - 23 dbm (CE) and 21 dbm (FCC). It includes VLAN, QoS and rate limiting support to segment and prioritise traffic. Power is supplied via Power over Ethernet (PoE).
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 1167 Mbit/s
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.4 - 5 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Cabling technology: 10/100/1000Base-T(X)
- Automatic channel selection: Yes
- Automatic channel scanning: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN, VLAN mapping
- Rate limiting: Yes
- Wireless isolation: Yes
- Band steering: Yes
- Quality of Service (QoS) support: Yes
- BeamForming: Yes
- Transmitting power (CE): 20 - 23 dBm
- Transmitting power (FCC): 21 dBm
Security
- Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterpri
- MAC address filtering: Yes
- Service Set Identifier (SSID) features: Multiple SSIDs
- Number of SSID supported: 16
- Remote Authentication Dial-In User Service (RADIUS): Yes
- Access Control List (ACL): Yes
Protocols
- Universal Plug and Play (UPnP): Yes
Management features
- Web-based management: Yes
- Syslog: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 4
- WAN connection: Ethernet (RJ-45)
Power

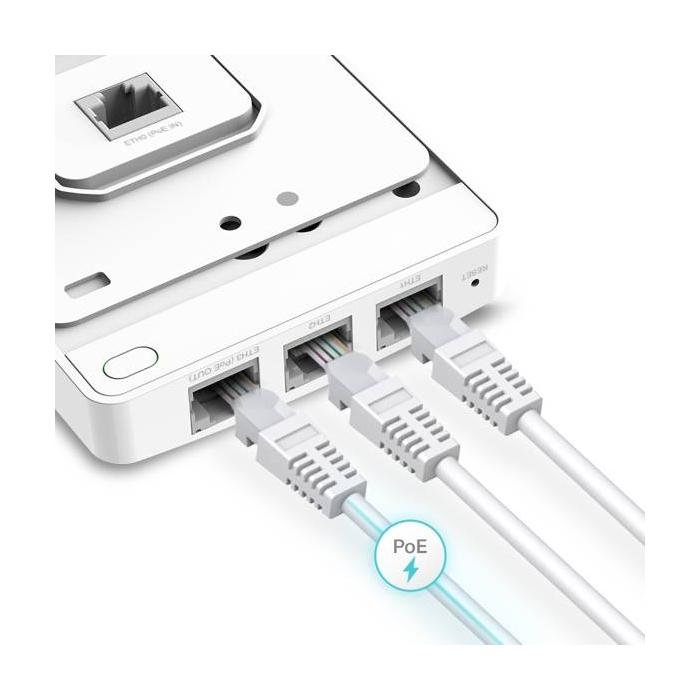

- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Active PoE, Passive PoE
- Power consumption (typical): 24.4 W
Design
- Placement: Wall
- Product colour: White
- Cable lock slot: Yes
- Reset button: Yes
- LED indicators: LAN, Power, Status, WAN, WLAN
Antenna
- Antenna type: Internal
- Antenna features: Integrated antenna
- Antennas quantity: 2
- Antenna gain level (max): 4 dBi
Performance
- Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

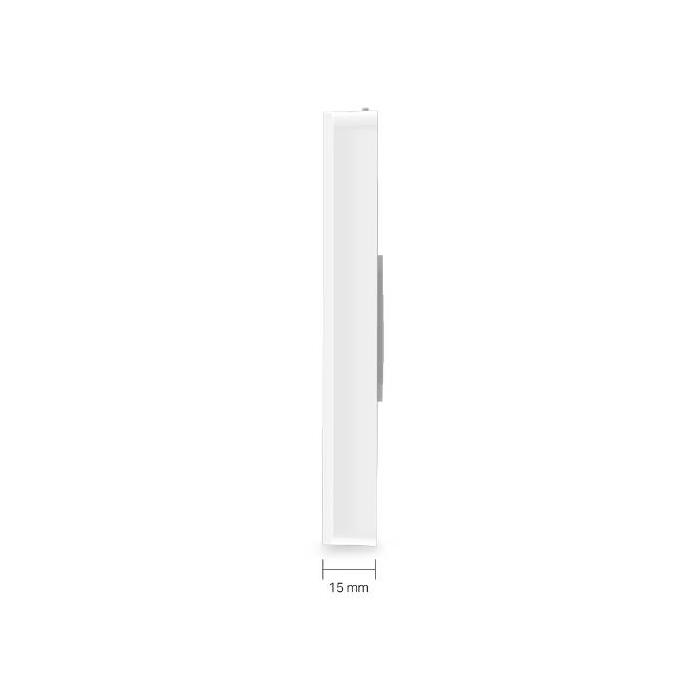

Weight & dimensions
- Width: 143 mm
- Depth: 86 mm
- Height: 20 mm
Packaging data
- Package width: 117 mm
- Package depth: 184 mm
- Package height: 33 mm
- Package weight: 300 g
- Package type: Box
Packaging content
- Quantity per pack: 1 pc(s)
- Mounting kit: Yes
- Quick start guide: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
Sustainability
- Sustainability compliance: Yes
Logistics data
- Harmonized System (HS) code: 85176990
