Return

Description

Specifications

WAN connection


  • Ethernet WAN: Yes
  • DSL WAN: No
  • SIM card slot: No
  • 3G/4G USB modem compatibility: No
  • WAN connection type: RJ-45

Wireless LAN features


  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (max): 867 Mbit/s
  • Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
  • WLAN data transfer rate (first band): 300 Mbit/s
  • WLAN data transfer rate (second band): 867 Mbit/s

Network


  • Number of guest networks (5 GHz): 1
  • Wireless Distribution System (WDS) bridge: Yes
  • Receiver sensitivity: 5GHz: 11a 6Mbps:-93dBm;11a 54Mbps:-78dBm; 11ac HT20 mcs8:-69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54
  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Cabling technology: 10/100/1000Base-T(X)
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Port forwarding: Yes
  • Port triggering: Yes
  • Dynamic DNS (DDNS): Yes
  • Number of guest networks (2.4 GHz): 1

Mobile network


  • 3G: No
  • 4G: No

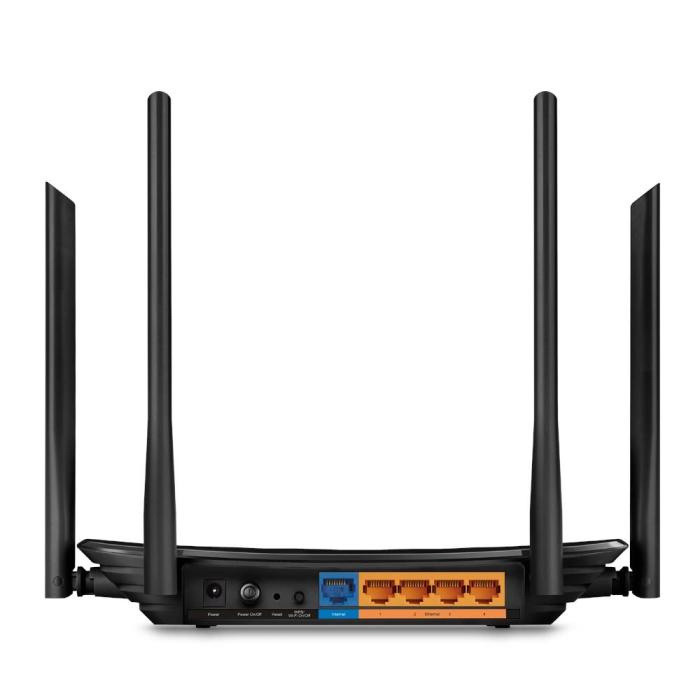

Ports & interfaces


  • Ethernet LAN (RJ-45) ports: 4
  • USB port: No
  • DC-in jack: Yes

Management features


  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Quality of Service (QoS) support: Yes
  • Reset button: Yes
  • WPS push button: Yes
  • MU-MIMO technology: Yes

Security


  • Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
  • Firewall: Yes
  • Firewall security: DoS, SPI Firewall, IP and MAC Address Binding
  • Guest access: Yes
  • DoS attack prevention: Yes
  • Parental control: Yes
  • DMZ support: Yes
  • Network address translation (NAT): Yes

Protocols


  • DHCP client: Yes
  • DHCP server: Yes
  • Universal Plug and Play (UPnP): Yes
  • Routing protocols: IP
  • Supported network protocols: IPv4, IPv6

Design


  • Product colour: Black
  • Wall mountable: Yes
  • LED indicators: LAN, Power, Status, WLAN, WPS
  • On/off switch: Yes
  • Product type: Tabletop router

Packaging content


  • Cables included: LAN (RJ-45)
  • AC adapter included: Yes
  • Quick start guide: Yes

Antenna


  • Antenna design: External
  • Antennas quantity: 5
  • Transmit power: CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz)

Power


  • Power source type: DC
  • Output voltage: 12 V
  • Output current: 1 A

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%

System requirements


  • Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
  • Linux operating systems supported: Yes
  • Mac operating systems supported: macOS
  • Mac compatibility: Yes

Weight & dimensions


  • Width: 230 mm
  • Depth: 144 mm
  • Height: 35 mm

Packaging data


  • Package width: 350 mm
  • Package depth: 240 mm
  • Package height: 82 mm
  • Number of products included: 1 pc(s)
