Name: TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point
Brand: TP-LINK
Price: 35.23 USD
Availability: InStock

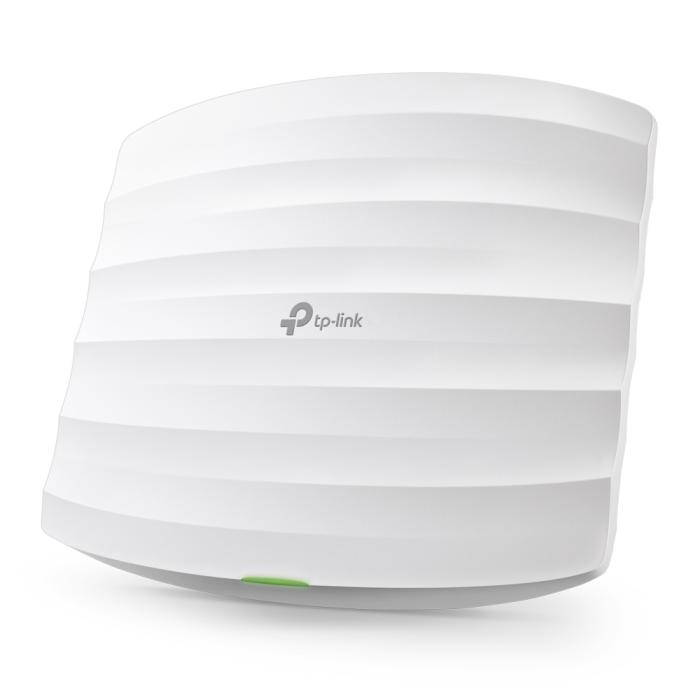

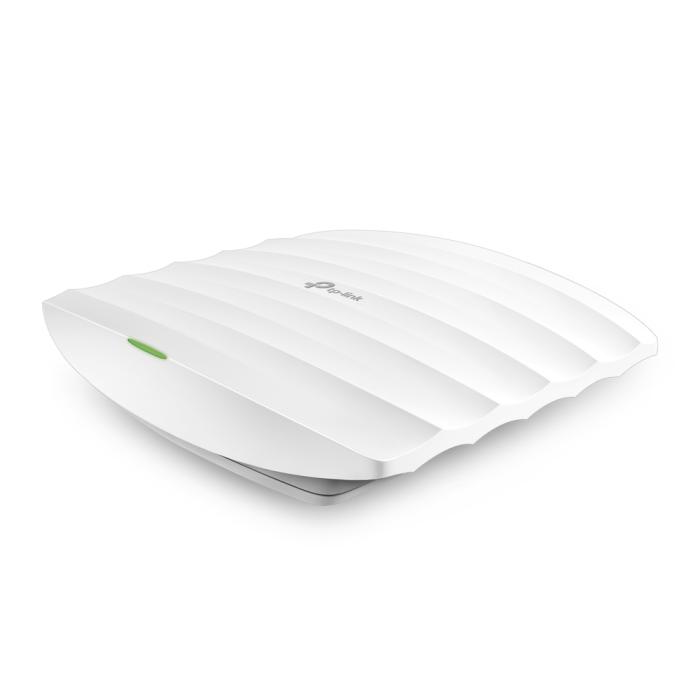

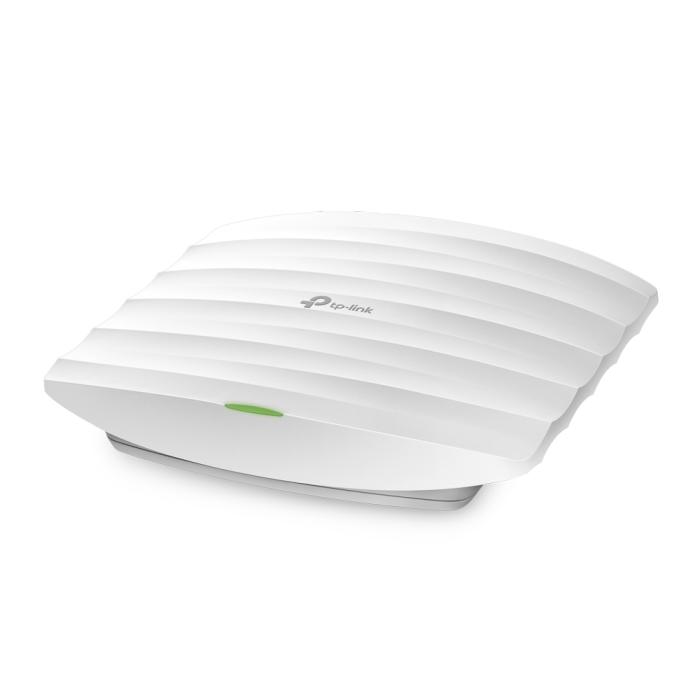

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point

$35.23

$35.23 without VAT

Amount

Brand: TP-LINK

SKU: 77325 PRC: 134754 EAN: 6935364096946 PN: EAP115

Description

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point, 2.4 GHz, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, 10,100,1000 Mbit/s

Specifications

Features

2.4 GHz: Yes
5 GHz: No
6 GHz: No
Maximum data transfer rate: 300 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Frequency band: 2.4 - 2.4835 GHz
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100Base-T(X)
Automatic channel selection: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
VLAN support: Yes
Virtual LAN features: VLAN mapping
Rate limiting: Yes
Wireless isolation: Yes
Quality of Service (QoS) support: Yes
Transmitting power (CE): 19 dBm
Transmitting power (FCC): 21 dBm
Receiver sensitivity: 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER

Security

Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering: Yes
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 8
System status alarm: Yes
Access Control List (ACL): Yes

Management features

Web-based management: Yes
Syslog: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45), Wi-Fi

Power

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Passive PoE
Output voltage: 12 V
Output current: 1 A
Power consumption (typical): 5 W

Design

Placement: Ceiling, Wall
Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington
On/off switch: Yes
Reset button: Yes
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 2
Antenna gain level (max): 3 dBi

Performance

Minimum system requirements: Microsoft Windows 10/8/7/Vista/XP

Certificates

Compliance certificates: Federal Communications Commission (FCC), CE, RoHS
Certification: CE, FCC, RoHS

Weight & dimensions

Width: 180 mm
Depth: 180 mm
Height: 47.5 mm

Packaging data

Package width: 246 mm
Package depth: 268 mm
Package height: 69 mm
Package weight: 600 g

Packaging content

Quantity per pack: 1 pc(s)
PoE adapter included: Yes
Mounting kit: Yes
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Sustainability

Sustainability compliance: Yes

Logistics data

Harmonized System (HS) code: 85176990
