Description

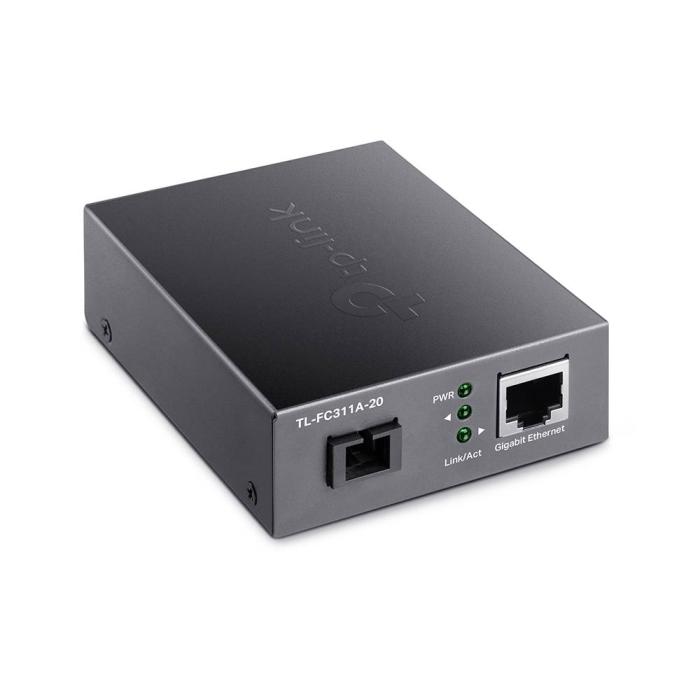

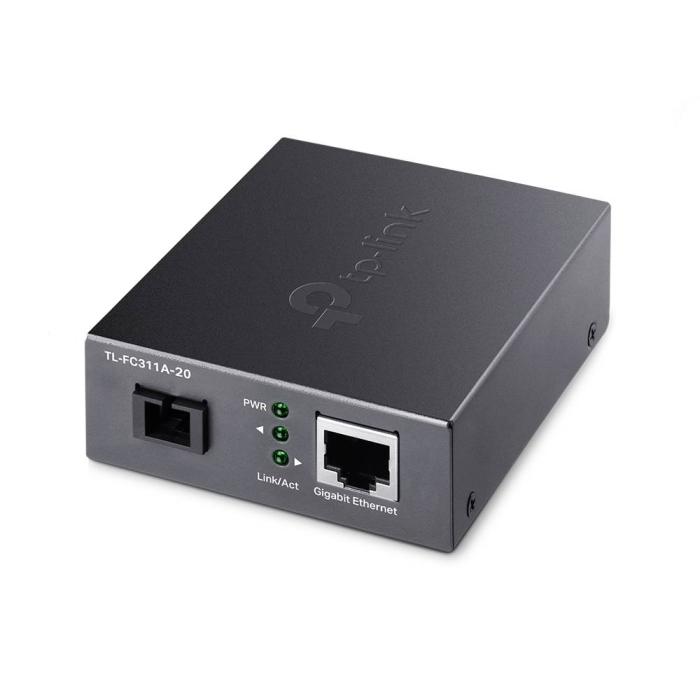

TP-Link Gigabit WDM Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, 1000 Mbit/s, 20000 m
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Data transfer rate: 1000 Mbit/s
Performance
- Maximum transfer distance: 20000 m
- Wavelength-division multiplexing (WDM): Yes
- Fiber mode structure: Single-mode
- Fiber cable diameters supported (core/cladding): 9/125 µm
Features
- Internal: No

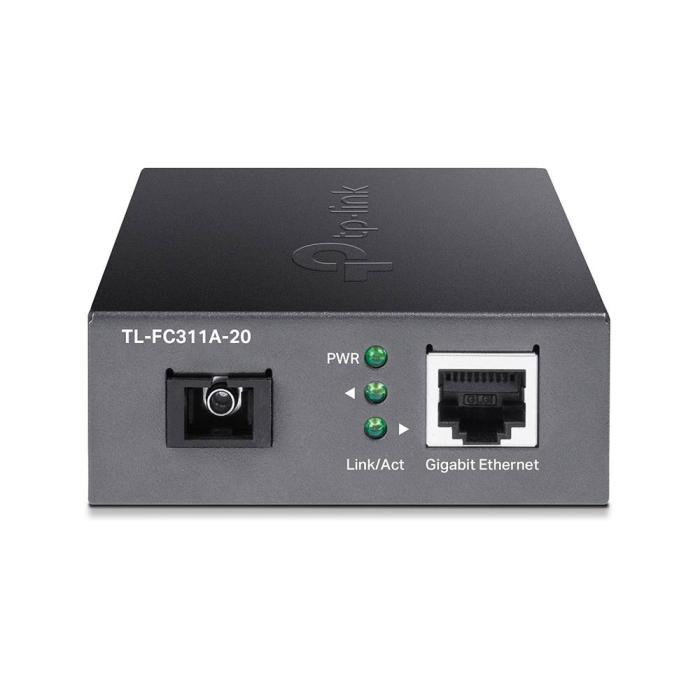

- LED indicators: Activity, Link, Power
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC

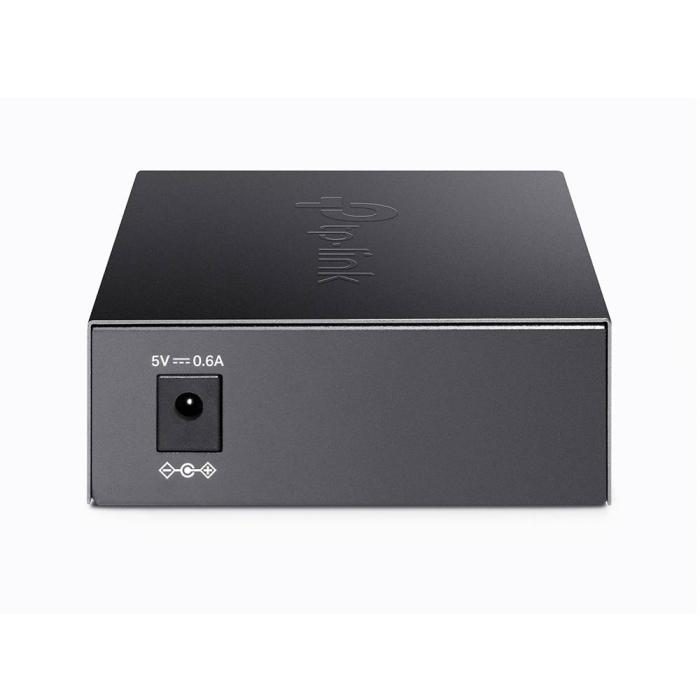

- DC-in jack: Yes
Power
- Output voltage: 5 V
- Output current: 0.6 A
Weight & dimensions
- Width: 94.5 mm
- Depth: 73 mm
- Height: 27 mm
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Packaging content
- AC adapter included: Yes
- Quick installation guide: Yes
Packaging data
- Package width: 165 mm
- Package depth: 204 mm
- Package height: 65 mm
- Package weight: 560 g
Logistics data
- Harmonized System (HS) code: 85176990
