Description

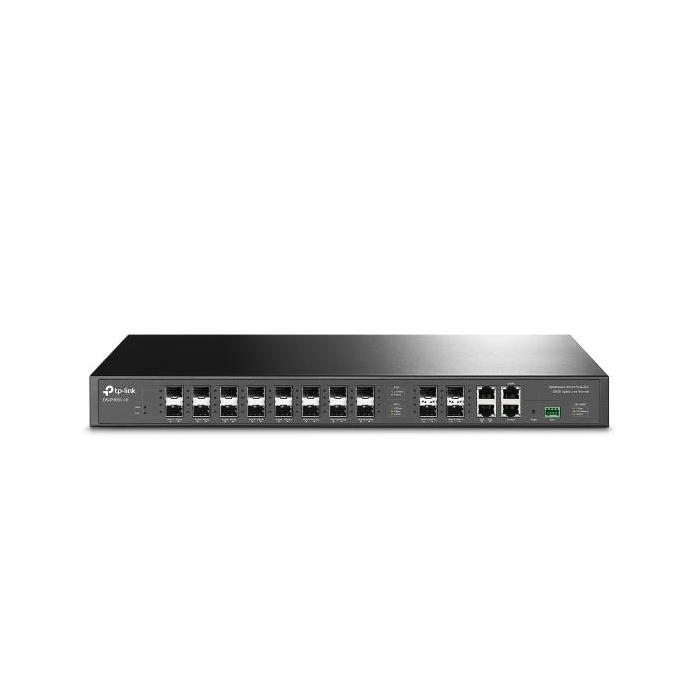

TP-Link DeltaStream DS-P7001-16, an optical line terminal with 16 GPON ports and a maximum split ratio of 1:128, designed for large-scale access networks. This model integrates 4 SFP/SFP+ ports and 4 Gigabit Ethernet LAN interfaces for uplinks, along with full support for QoS, ACL, and multicast features such as IGMP and MLD to optimise traffic. It manages address assignment via a DHCP server and DHCP relay, and incorporates static routes for precise routing control. Its power supply supports both 100-240 V AC and 38.4-72 V DC, with a maximum power consumption of 103 W, and operates with a logical GPON distance of up to 60 kilometres.
Specifications
Features
- Static route: Yes
- DHCP server: Yes
- DHCP relay: Yes
- IGMP snooping: Yes
- Multicast Listener Discovery (MLD) snooping: Yes
- Quality of Service (QoS) support: Yes
- GPON split ratio (max): 1:128
- Maximum operating distance (GPON): 60000 m
- Access Control List (ACL): Yes
Ports & interfaces
- Upstream ports: Gigabit Ethernet
- Ethernet LAN (RJ-45) ports: 4
- GPON ports quantity: 16
- SFP/SFP+ slots quantity: 4
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC voltage range: 38.4 - 72 V
- Power consumption (max): 103 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 440 mm
- Depth: 440 mm
- Height: 44 mm
