Description

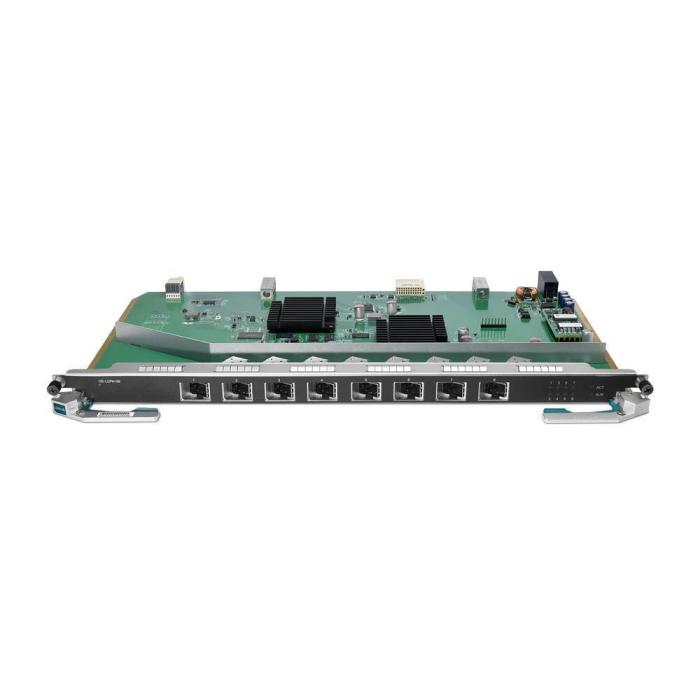

The TP-Link DeltaStream DS-LGPA-08 is an optical line terminal with 8 GPON ports and 8 RJ-45 Ethernet LAN ports, with a maximum GPON split ratio of 1:128 and a maximum logical distance of 20000 m. It incorporates an L2/L3 switch layer and supports the IEEE 802.1p and IEEE 802.1x network standards. It offers static route, DHCP server, DHCP relay, IGMP and MLD multicast performance intrusion, as well as support for QoS quality of service, voice VLAN and ACL access control list. It operates with a DC voltage range of -38.4 to -57.6 V and a maximum power consumption of 30 W. It supports an operating temperature range of 0 to 50 °C and an operating relative humidity of 10 to 90%. It has CE and FCC conformity certificates, and its dimensions are 390.8 x 22.5 x 257.5 mm (width x height x depth).
Specifications
Features
- Switch layer: L2/L3
- Static route: Yes
- DHCP server: Yes
- DHCP relay: Yes
- IGMP snooping: Yes
- Multicast Listener Discovery (MLD) snooping: Yes
- Quality of Service (QoS) support: Yes
- Voice VLAN: Yes
- GPON split ratio (max): 1:128
- Maximum operating distance (GPON): 20000 m
- Access Control List (ACL): Yes
Ports & interfaces
- Networking standards: IEEE 802.1p, IEEE 802.1x
- Ethernet LAN (RJ-45) ports: 8
- GPON ports quantity: 8
Power
- DC voltage range: -38.4 - -57.6 V
- Power consumption (max): 30 W
Sustainability
- Sustainability compliance: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC)
Weight & dimensions
- Width: 390.8 mm
- Depth: 257.5 mm
- Height: 22.5 mm
