Description

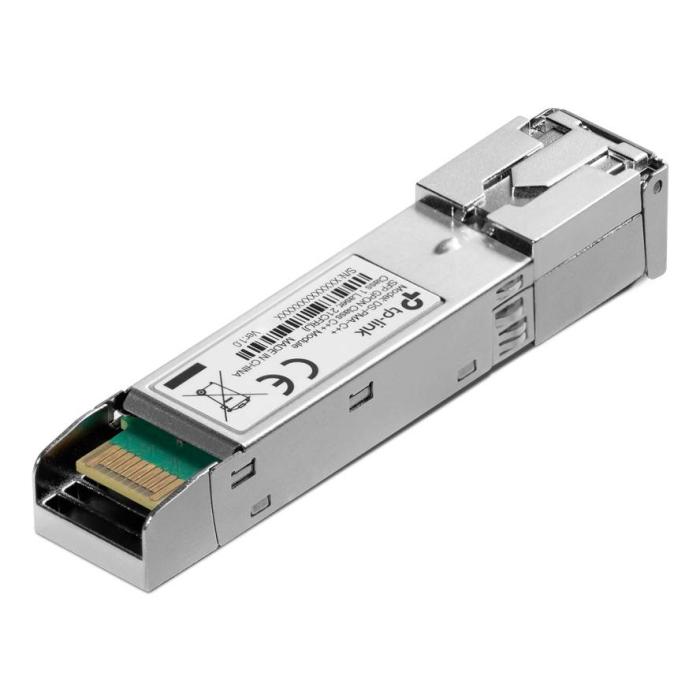

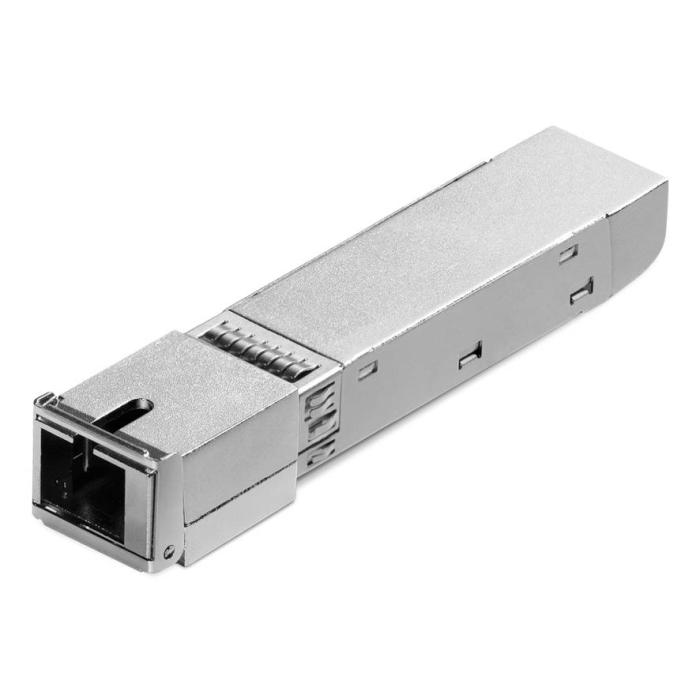

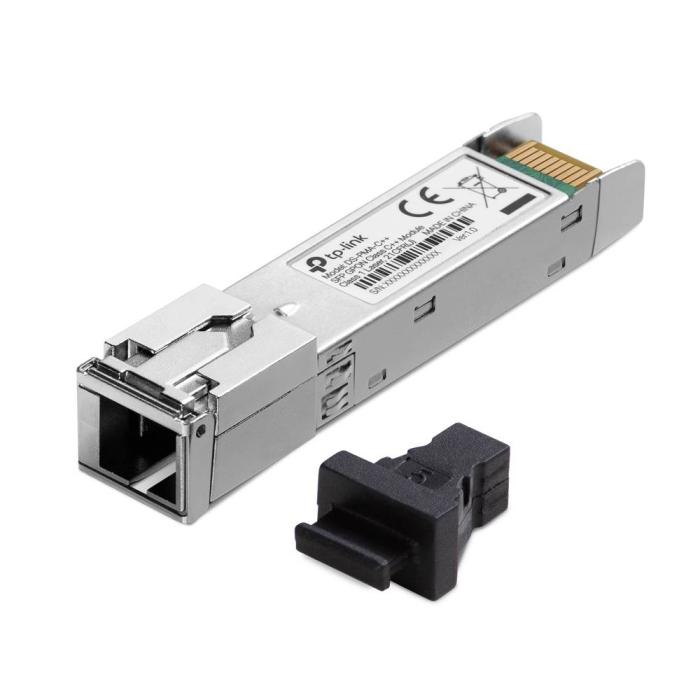

The TP-Link DS-PMA-C++GPON transceiver module is a fibre optic SFP component in metallic colour designed to be integrated into compatible network equipment. It reaches a maximum data transfer speed of 2500 Mbit/s and works with single-mode fibre (SMF), making it suitable for long-distance deployments. Its SC/UPC connector and support for fibre diameters of 9/125 µm are compatible with standard single-mode fibre installations. The maximum transfer distance reaches up to 20000 m, a figure that covers urban and metropolitan links without the need for intermediate repeaters. On the optical side, it transmits at a wavelength of 1490 nm and receives at 1310 nm, with a maximum Rx power of 5 dBmW. It includes Digital Diagnostics Monitoring (DDM), so you can monitor link parameters from the host equipment.
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 2500 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: SC/UPC
- Fiber cable diameters supported (core/cladding): 9/125 µm
- Maximum transfer distance: 20000 m
- Tx wavelength (max): 1490 nm
- Rx wavelength (max): 1310 nm
- Rx power (max): 5 dBmW
- Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
- Fiber ethernet cabling technology: 1000BASE
- Digital Diagnostics Monitoring (DDM): Yes
Features
- Product colour: Metallic
- Form factor: SFP
- Plug and Play: Yes
- Hot-swap: Yes
- Easy to install: Yes
Power
- Input voltage: 3.3 V
Certificates
- Compliance certificates: CE
Packaging content
- Packaging content: 2× 10 SFF
