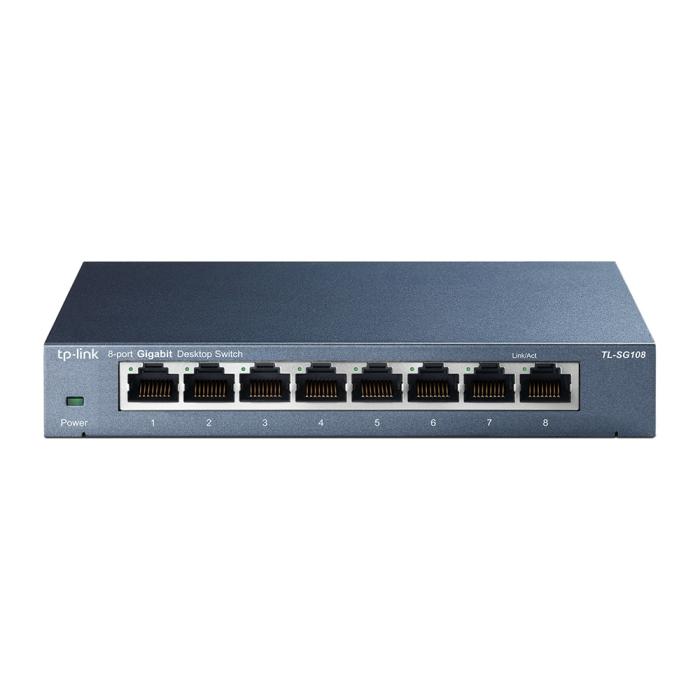

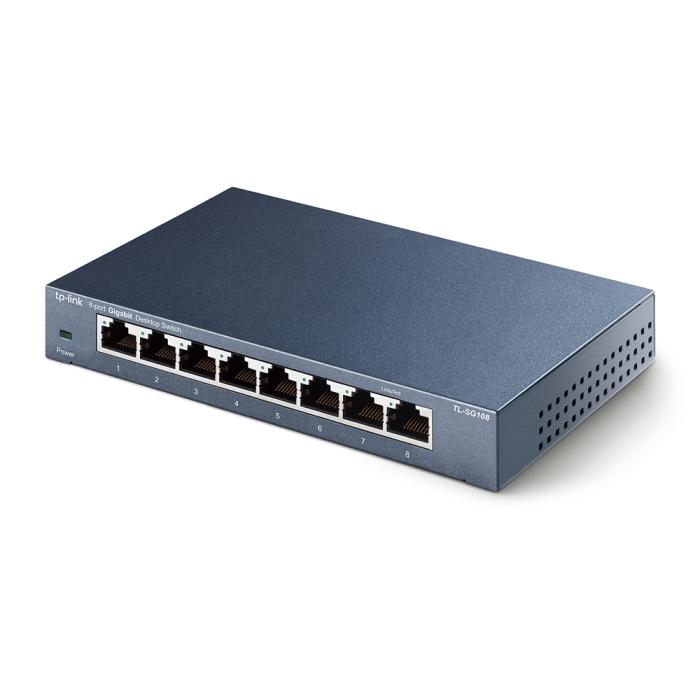

Name: TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch
Brand: TP-LINK
Price: 24.76 USD
Availability: InStock

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch

$24.76

$24.76 without VAT

Amount

Brand: TP-LINK

SKU: 71164 PRC: 4545 EAN: 6935364021153 PN: TL-SG108

Description

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

Specifications

Management features

Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support: No
Full duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-negotiation: Yes

Data transmission

Supported data transfer rates: 10/100/1000Mbps
Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 4000 entries
Store-and-forward: Yes
Maximum data transfer rate: 2 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 16000
Packet buffer memory: 1.5 MB

Security

IGMP snooping: Yes

Protocols

Switching protocols: CSMA/CD

Design

Product colour: Black
LED indicators: Yes

Power

Power source: DC
Power supply included: Yes
Input current: 0.6 A
Input voltage: 9 V
Power consumption (max): 3.31 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Other features

Connectivity technology: Wired
Bandwidth: 16 Gbit/s
Packet transfer speed: 14880pps/148800pps/1488000pps
Wi-Fi: No
Power LED: Yes
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 158 mm
Depth: 101 mm
Height: 25 mm

Packaging content

User guide: Yes

Packaging data

Package width: 130 mm
Package depth: 191 mm
Package height: 92 mm
Package weight: 510 g

Certificates

Certification: CE, FCC, RoHS

Logistics data

Harmonized System (HS) code: 85176990
