Description

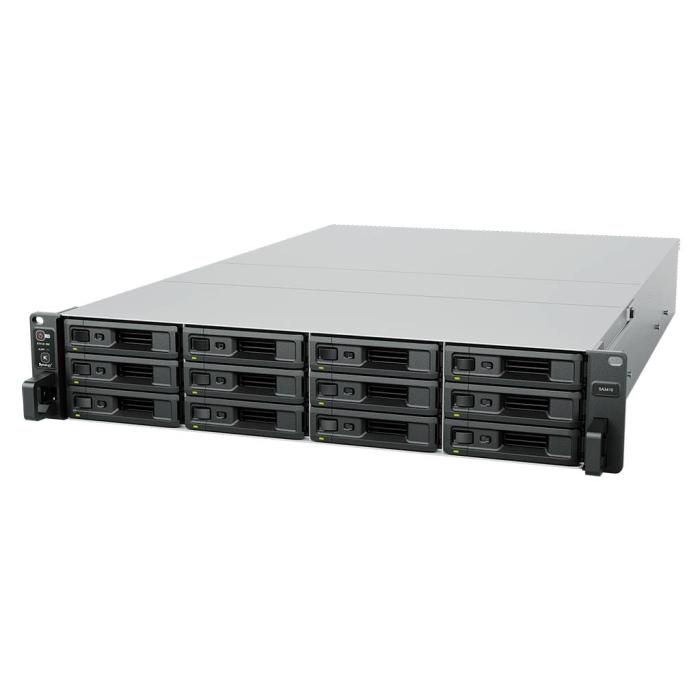

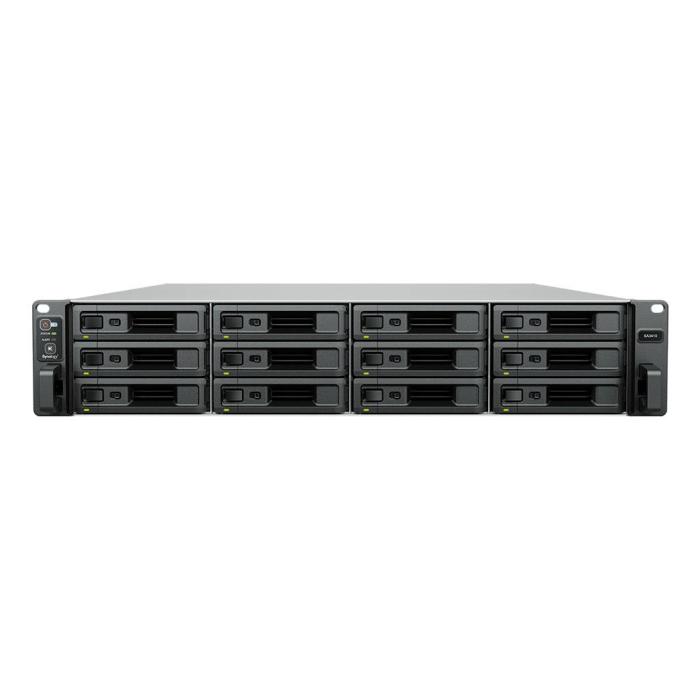

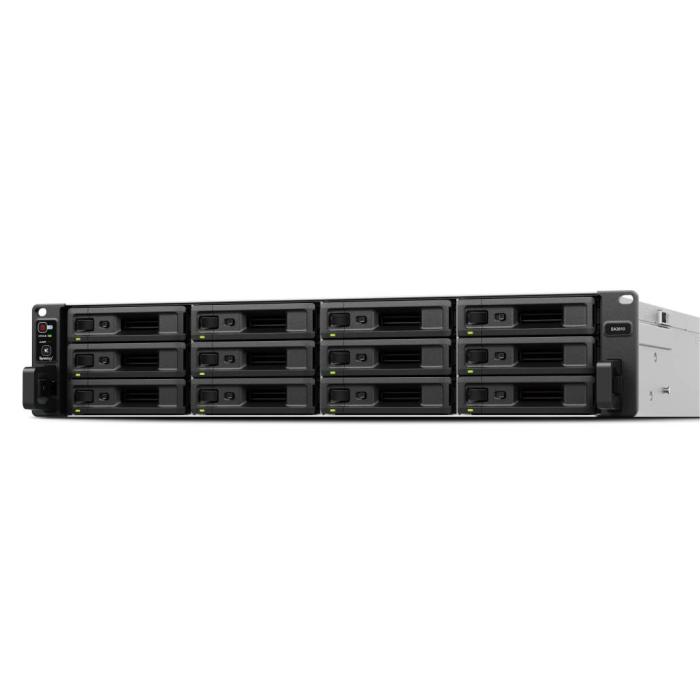

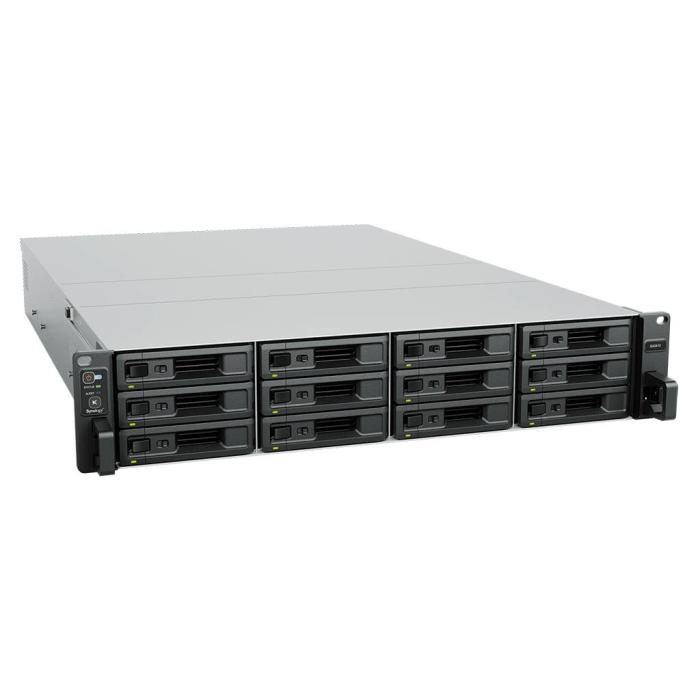

The Synology SA3410 is a 2U rackmount NAS storage server in black and grey, powered by an 8-core Intel Xeon D-1541 processor and 16 GB of DDR4 memory. This model, with no drives installed, offers 12 hot-swap bays compatible with 2.5-inch and 3.5-inch SATA or SAS disks, along with support for HDDs and SSDs, and a total installed capacity of 0 TB that you will need to expand according to your requirements. Its configurations include RAID levels 0, 1, 5, 6, 10, F1, and JBOD, with online RAID migration and expansion to adapt storage without interrupting service. The DiskStation Manager operating system manages a wide range of file systems such as BTRFS, ext4, NTFS, exFAT, HFS+, or FAT, facilitating integration into heterogeneous environments.
Specifications
Storage
- Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)
- Storage drive sizes supported: 2.5, 3.5"
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, F1, JBOD
- Online RAID migration: Yes
- Online RAID expansion: Yes
- Hot-swap drive bays: Yes
- Supported file systems: BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 12
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Xeon®
- Processor model: D-1541
- Processor frequency: 2.1 GHz
- Processor boost frequency: 2.7 GHz
- Processor cores: 8
- CPU configuration (max): 1
- Number of processors supported: 1
- Conflict-Free processor: Yes
Memory
- Internal memory: 16 GB
- Internal memory type: DDR4
- Maximum RAM supported: 128 GB
- Memory slots: 4
- Memory form factor: RDIMM
- ECC: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000, 10000 Mbit/s
- Ethernet LAN data rate supported (max): 10000 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, Cal
- Link aggregation: Yes

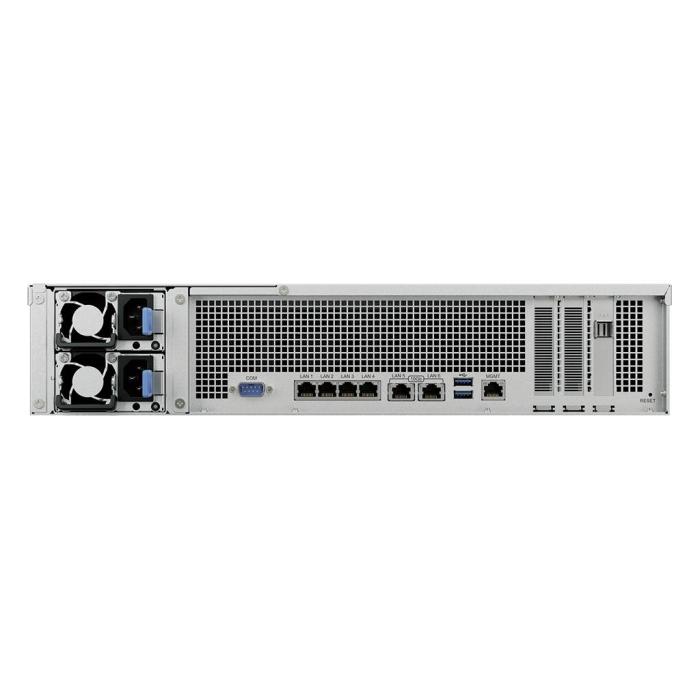

Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Serial ports quantity: 1
- Ethernet LAN (RJ-45) ports: 7
- PCI Express x8 (Gen 3.x) slots: 2
Design
- Chassis type: Rack (2U)
- Cooling type: Active
- Product colour: Black, Grey
- Number of fans: 4 fan(s)
- Fan diameter: 8 cm
- LED indicators: Yes
- Built-in display: No
- Built-in speaker(s): No
Performance
- Type: NAS
- Device class: Small & Medium Business
- Backup function: Yes
- Backup features: Cloud, iSCSI LUN
- Buzzer: Yes
- Multilingual support: Yes
- Noise level: 49.8 dB
- Card reader integrated: No
- Snapshot: Yes
- Management protocols: SNMP
- Security algorithms: AES
- Access Control List (ACL): Yes
- Reset button: Yes
- On/off switch: Yes
- Built-in UPnP AV media server: Yes
- Built-in FTP server: Yes
- Browser supported: Google Chrome Firefox Microsoft Edge Safari
- System log: Yes
Software
- Operating system installed: DiskStation Manager
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 550 W
- Number of power supply units: 1
- Redundant power supply (RPS) support: No
- Power consumption (typical): 136.15 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 / 60 Hz
Weight & dimensions
- Width: 482 mm
- Depth: 724 mm
- Height: 88 mm
- Weight: 14.5 kg
Packaging content
- Cables included: AC
- Power cables quantity: 1
Processor special features
- Embedded options available: No
- Enhanced Intel SpeedStep Technology: Yes
- Execute Disable Bit: Yes
- Idle States: Yes
- Intel 64: Yes
- Intel Enhanced Halt State: Yes
- Intel Secure Key Technology version: 1.00
- Intel Trusted Execution Technology: Yes
- Intel TSX-NI: Yes
- Intel TSX-NI version: 1.00
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
Sustainability
- Sustainability compliance: Yes
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 5 - 95%
Other features
- Compliance certificates: CE, RoHS
- Certification: FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
