Name: Synology DiskStation DS1823XS+ NAS/storage server Tower Ryzen Embedded V1780B 8 GB DDR4 0 TB DiskStation Manager Black
Brand: SYNOLOGY
Price: 1940 EUR
Availability: InStock

Synology DiskStation DS1823XS+ NAS/storage server Tower Ryzen Embedded V1780B 8 GB DDR4 0 TB DiskStation Manager Black

1,940.00 €

1,603.31 € without VAT

Amount

Brand: SYNOLOGY

SKU: 98461 PRC: 427607 EAN: 4711174724956 PN: ds1823xs+

Description

Specifications

Storage

Supported storage drive interfaces: Serial ATA
Storage drive sizes supported: 2.5, 3.5, M.2
Number of M.2 (M & B) slots: 2
RAID support: Yes
RAID levels: 0, 1, 5, 6, 10, JBOD
Online RAID migration: Yes
Online RAID expansion: Yes
Hot-swap drive bays: Yes
Supported file systems: BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
Storage drives installed: No
Total installed storage capacity: 0 TB
Number of storage drives supported: 8
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor manufacturer: AMD
Processor generation: AMD Ryzen Embedded V1000 Series
Processor family: Ryzen Embedded
Processor model: V1780B
Processor frequency: 3.35 GHz
Processor boost frequency: 3.6 GHz
Processor cores: 4
Number of processors supported: 1

Memory

Internal memory: 8 GB
Internal memory type: DDR4
Maximum RAM supported: 32 GB
Memory slots: 2
Memory form factor: SO-DIMM
ECC: Yes

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000, 10000 Mbit/s
Ethernet LAN data rate supported (max): 10000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
iSCSI support: Yes
Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, Cal
Link aggregation: Yes

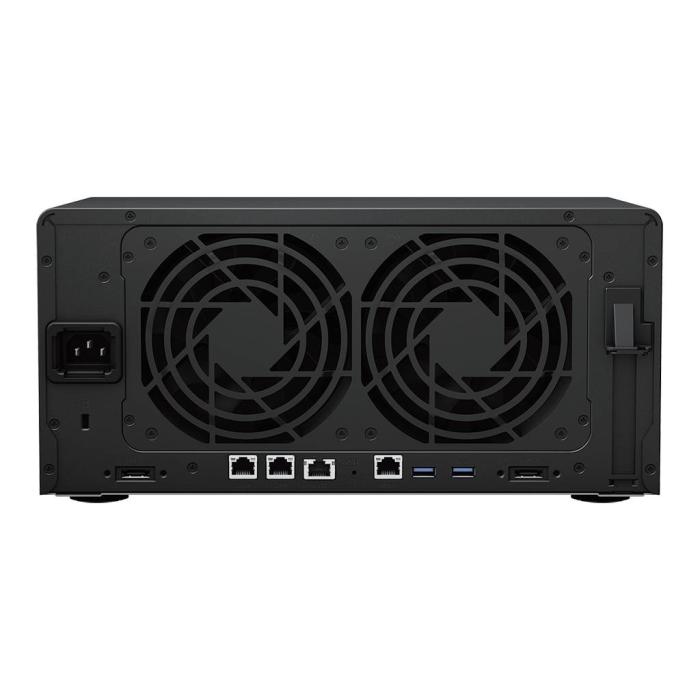

Ports & interfaces

USB port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
eSATA ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
PCI Express x8 (Gen 3.x) slots: 1

Design

Chassis type: Tower
Cooling type: Active
Product colour: Black
Number of fans: 2 fan(s)
Fan diameter: 12 cm
LED indicators: Yes
Built-in display: No
Cable lock slot: Yes
Cable lock slot type: Kensington
Built-in speaker(s): No

Performance

Type: NAS
Device class: Small & Medium Business
Backup function: Yes
Backup features: Cloud, iSCSI LUN
Multilingual support: Yes
Noise level: 23.6 dB
Card reader integrated: No
Snapshot: Yes
Management protocols: SNMP
Security algorithms: AES
Access Control List (ACL): Yes
Reset button: Yes
On/off switch: Yes
Built-in FTP server: Yes
Browser supported: Google Chrome Firefox Microsoft Edge Safari
System log: Yes

Software

Operating system installed: DiskStation Manager
Operating system version: 7.1.1
Server operating systems supported: Windows Server 2019

Power

Power supply location: Built-in
Power supply unit (PSU) capacity: 250 W
Number of power supply units: 1
Redundant power supply (RPS) support: No
Power consumption (typical): 87.93 W
AC input voltage: 100 - 240 V
AC input frequency: 50 / 60 Hz

Weight & dimensions

Width: 343 mm
Depth: 243 mm
Height: 166 mm
Weight: 6.2 kg

Packaging content

Cables included: AC, LAN (RJ-45)
Power cables quantity: 1

Sustainability

Sustainability compliance: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Other features

Compliance certificates: CE, RoHS
Certification: FCC BSMI VCCI RCM EAC CCC KC
