Synology RackStation RS3618xs NAS Rack (2U) Intel® Xeon® D D-1521 8 GB DDR4 0 TB DiskStation Manager Black

Name: Synology RackStation RS3618xs NAS Rack (2U) Intel® Xeon® D D-1521 8 GB DDR4 0 TB DiskStation Manager Black
Brand: SYNOLOGY
SKU: 199918
Price: 3536.82 EUR
Availability: InStock

More info

Brand: SYNOLOGY

3,536.82 €

2,922.99 € without VAT

Stock available: 1 ud.

Get it on the September 1 / September 2

SKU: 113289 PRC: 199918 EAN: 4711174723058 PN: RS3618XS

Description

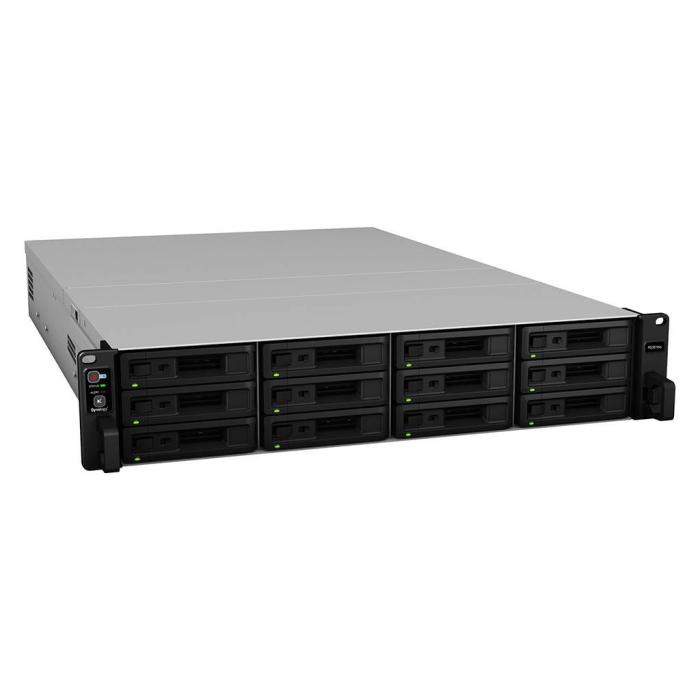

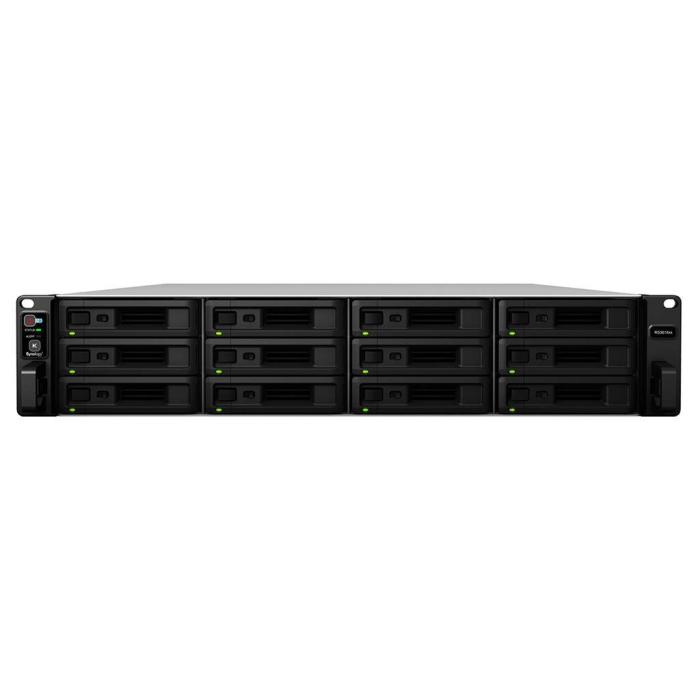

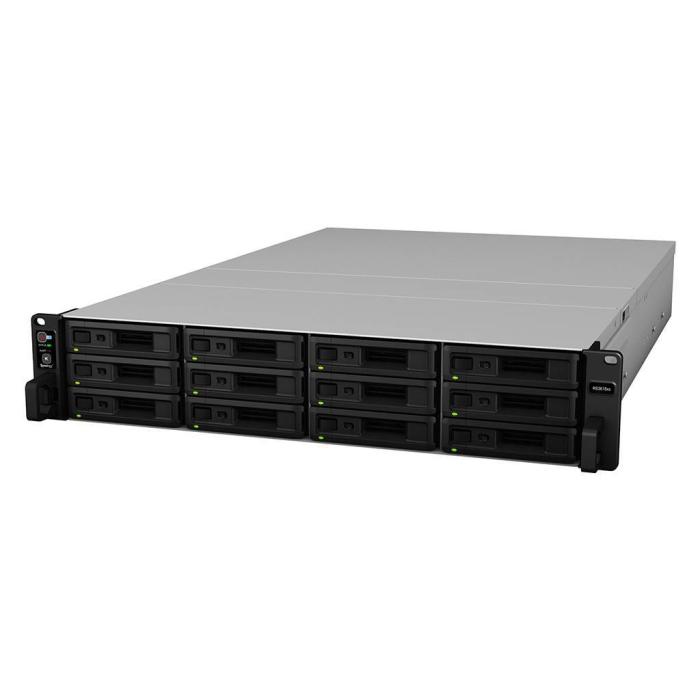

Mount the Synology RackStation RS3618xs in your 2U rack and you will have a desktop NAS aimed at professional environments that supports up to 12 SATA, SAS or SSD storage units in 2.5 and 3.5-inch formats, with hot-swap bays for replacing drives without interrupting service. Its quad-core Intel Xeon D D-1521 processor with 6 MB cache, along with 8 GB DDR4 memory, handles intensive workloads and file systems such as BTRFS, ext4 or NTFS, as well as offering RAID levels 0, 1, 5, 6, 10, F1 and JBOD to protect your data. This model is delivered without drives installed and without internal storage capacity, so you can configure it with the drives you need up to the supported 144 TB.

Specifications

Storage

Storage drive capacity: 0 GB
Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported: 2.5, 3.5"
Maximum supported storage capacity: 144 TB
RAID support: Yes
RAID levels: 0, 1, 5, 6, 10, F1, JBOD
Hot-swap drive bays: Yes
Supported file systems: BTRFS, Fat, HFS+, NTFS, ext3, ext4
Storage drives installed: No
Total installed storage capacity: 0 TB
Number of storage drives supported: 12
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor manufacturer: Intel
Processor family: Intel® Xeon® D
Processor model: D-1521
Processor frequency: 2.4 GHz
Processor boost frequency: 2.7 GHz
Processor cores: 4
Processor threads: 8
Processor cache: 6 MB
CPU configuration (max): 1
ECC supported by processor: Yes
PCI Express configurations: 1x16, 1x4, 1x8
PCI Express slots version: 2.0, 3.0
Processor code: SR2DF
Processor codename: Broadwell
Processor lithography: 14 nm
Processor operating modes: 64-bit
Processor package size: 37.5 x 37.5 mm
Processor series: Intel Xeon D-1500
Processor socket: BGA 1667
Scalability: 1S
Stepping: V2
Thermal Design Power (TDP): 45 W
Maximum internal memory supported by processor: 128 GB
Conflict-Free processor: Yes

Memory

Internal memory: 8 GB
Internal memory type: DDR4
Memory clock speed: 2133 MHz
Maximum RAM supported: 64 GB
Memory slots: 4

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Wi-Fi: No
iSCSI support: Yes
Wake-on-LAN ready: Yes
Supported network protocols: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
Link aggregation: Yes

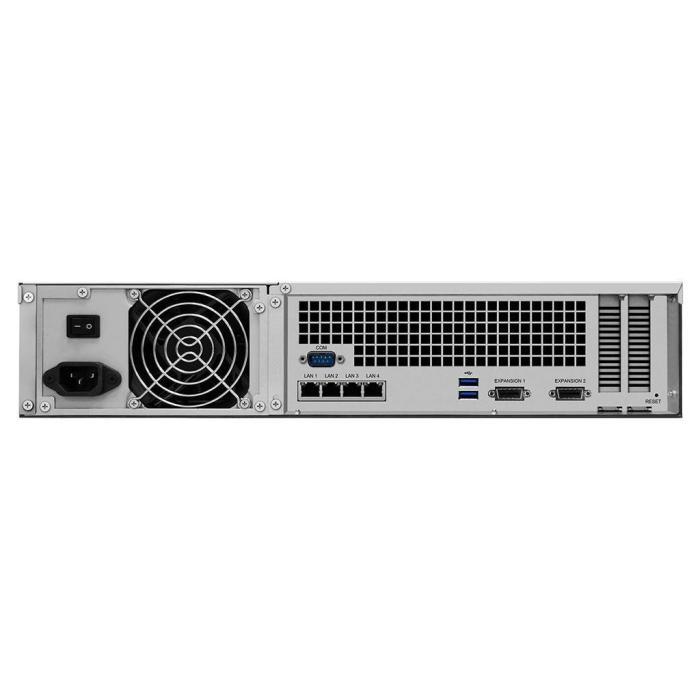

Ports & interfaces

USB port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
PCI Express x8 (Gen 3.x) slots: 2

Design

Chassis type: Rack (2U)
Cooling type: Active
Product colour: Black
Number of fans: 4 fan(s)
Fan diameter: 8 cm
LED indicators: HDD, Power

Performance

Type: NAS
Device class: Small & Medium Business
Backup function: Yes
Backup features: Cloud, iSCSI LUN
Multilingual support: Yes
Number of users: 16000 user(s)
Noise level: 50.2 dB
Web-based management: Yes
Security algorithms: HTTPS, SSH, SSL/TLS
Access Control List (ACL): Yes
Reset button: Yes
On/off switch: Yes
Browser supported: Chrome, Firefox, Internet Explorer 10, Safari
System log: Yes
Hot spare: Yes
S.M.A.R.T. support: Yes
Share folder: CIFS/AFP/FTP

Software

Operating system installed: DiskStation Manager
Windows operating systems supported: Windows 10, Windows 7
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Server operating systems supported: Windows Server 2012, Windows Server 2012 R2
