Description

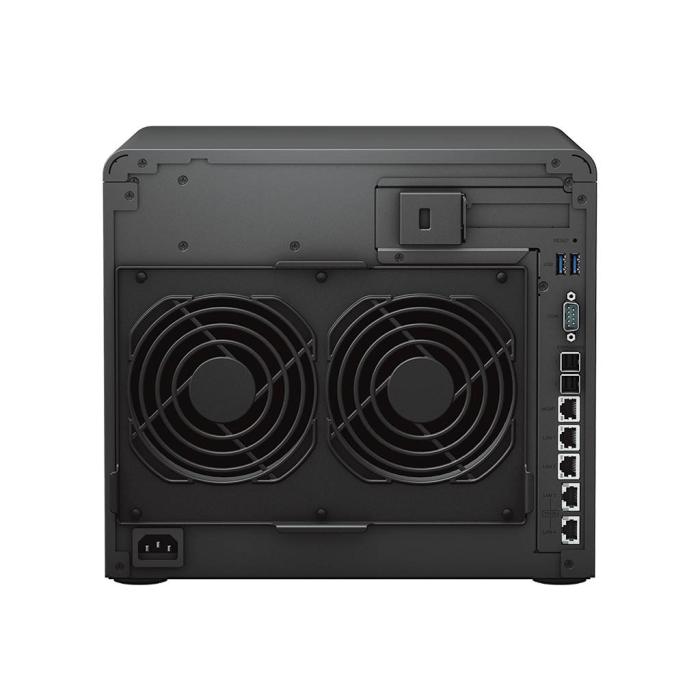

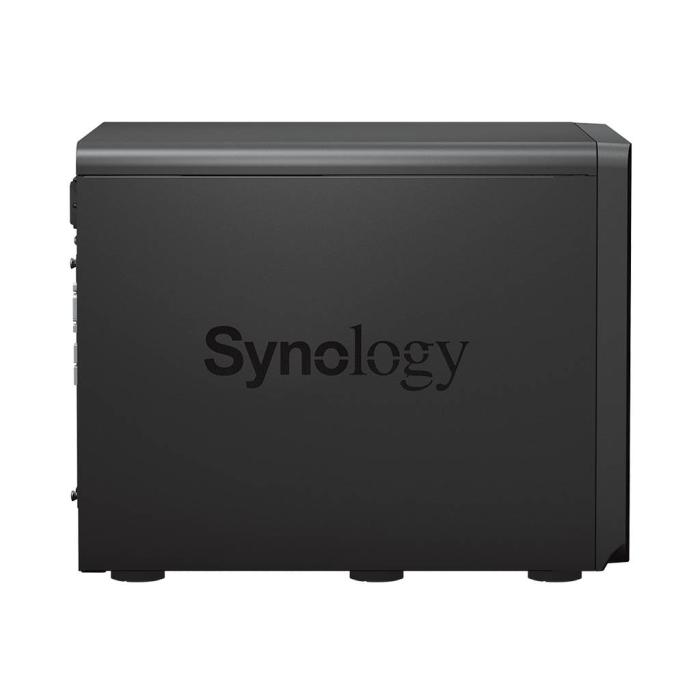

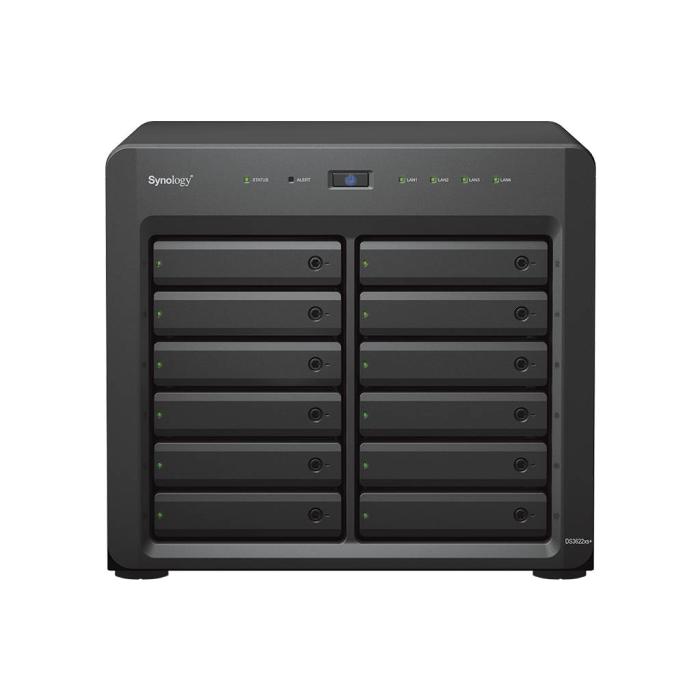

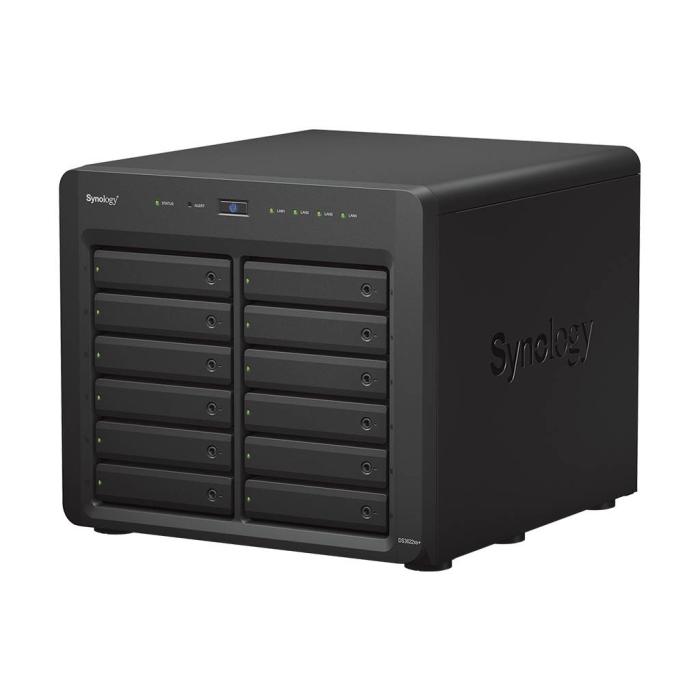

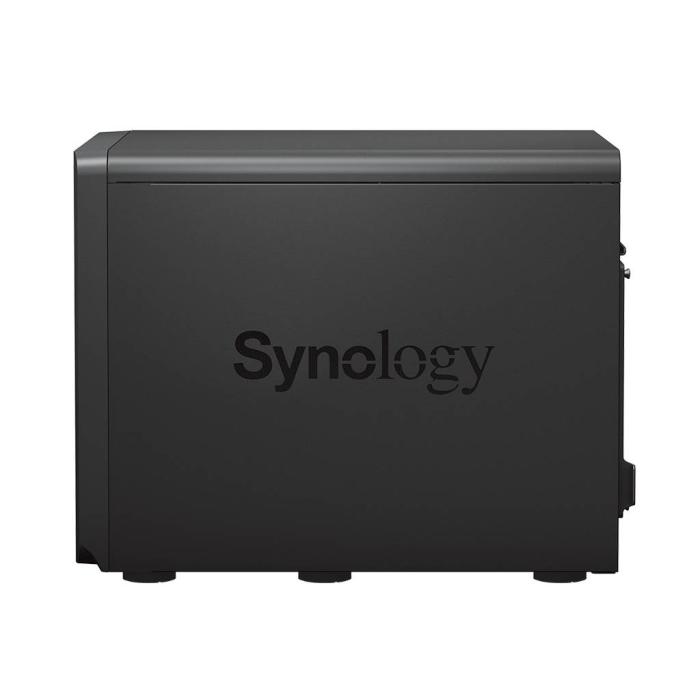

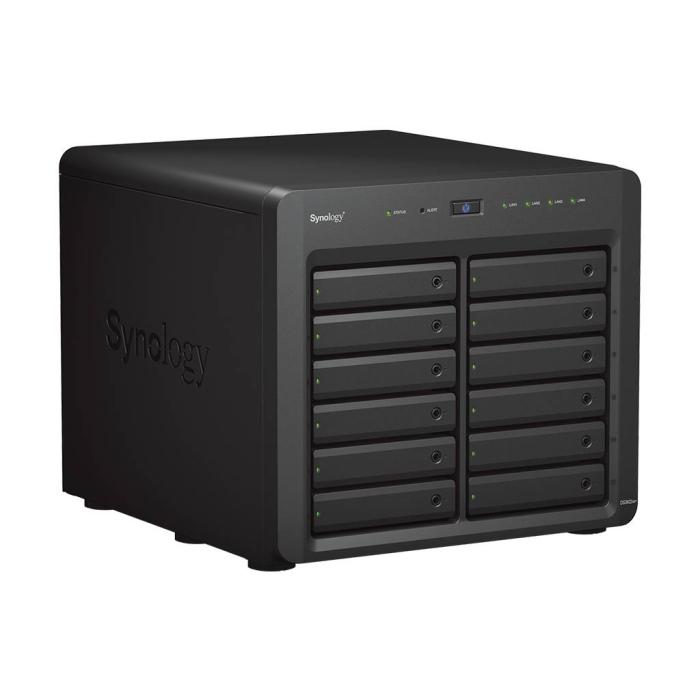

Synology DiskStation DS3622xs+ NAS Tower with Intel® Xeon® D D-1531 six-core processor at 2.2 GHz and 16 GB DDR4 memory, ready to house up to twelve 2.5- or 3.5-inch drives with SATA, SATA II or SATA III interfaces in hot-swap configurations. This model, delivered without installed drives (0 TB), supports file systems such as BTRFS, ext4, NTFS or HFS+ and manages RAID 0, 1, 5, 6, 10 and JBOD levels, with a maximum expandable capacity of up to 200 TB. The unit integrates the DiskStation Manager operating system, providing a solid foundation for setting up centralised storage with support for HDDs and SSDs, designed for environments requiring reliability and scalability.
Specifications
Storage
- Storage drive capacity: 0 GB
- Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5"
- Maximum supported storage capacity: 200 TB
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Hot-swap drive bays: Yes
- Supported file systems: BTRFS, Fat, HFS+, NTFS, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 12
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Xeon® D
- Processor model: D-1531
- Processor frequency: 2.2 GHz
- Processor boost frequency: 2.7 GHz
- Processor cores: 6
- CPU configuration (max): 1
- Number of processors supported: 1
- Conflict-Free processor: Yes
Memory
- Internal memory: 16 GB
- Internal memory type: DDR4
- Maximum RAM supported: 48 GB
- Memory slots: 4
- Memory form factor: SO-DIMM
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 1000, 10000 Mbit/s
- Wake-on-LAN ready: Yes
- Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
- Link aggregation: Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 4
- PCI Express x8 (Gen 3.x) slots: 1
Design
- Chassis type: Tower
- Cooling type: Active
- Product colour: Black
- Number of fans: 2 fan(s)
- Fan diameter: 12 cm
- Fan diameter 2: 12 cm
Performance
- Type: NAS
- Device class: Home & Home Office
- Backup function: Yes
- Multilingual support: Yes
- Noise level: 25 dB
- Web-based management: Yes
- Access Control List (ACL): Yes
- Browser supported: Safari, Google Chrome, Firefox, Microsoft Edge
Software
- Operating system installed: DiskStation Manager
- Server operating systems supported: Windows Server 2016, Windows Server 2019
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 550 W
- Number of power supply units: 1
- Power consumption (typical): 94.42 W
- Power consumption (HDD standby): 54.33 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 300 mm
- Depth: 340 mm
- Height: 270 mm
- Weight: 9.8 kg
Packaging content
- Cables included: AC, LAN (RJ-45)
Processor special features
- Embedded options available: No
- Enhanced Intel SpeedStep Technology: Yes
- Execute Disable Bit: Yes
- Idle States: Yes
- Intel 64: Yes
- Intel Enhanced Halt State: Yes
- Intel Secure Key Technology version: 1.00
- Intel Trusted Execution Technology: Yes
- Intel TSX-NI: Yes
- Intel TSX-NI version: 1.00
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 60 °C
Logistics data
- Harmonized System (HS) code: 84714100
Other features
- Certification: FCC CE BSMI VCCI RCM UKCA EAC KC UL
