Description

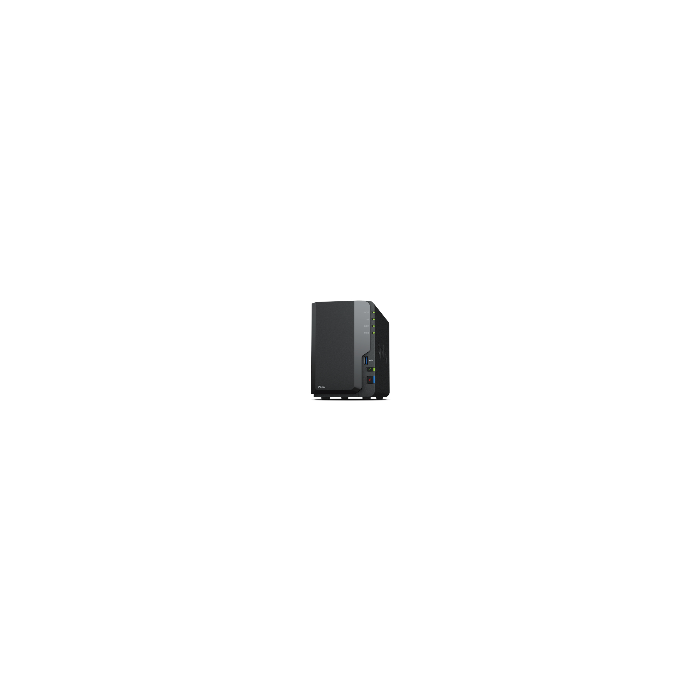

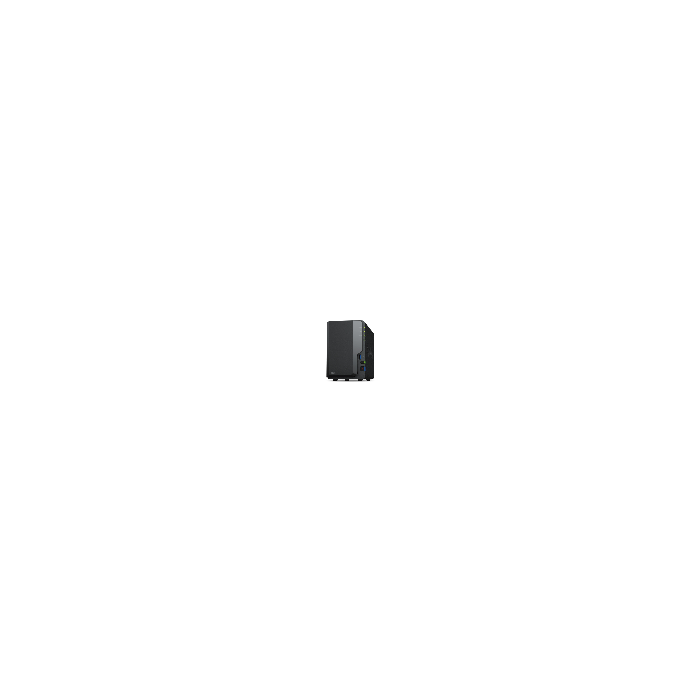

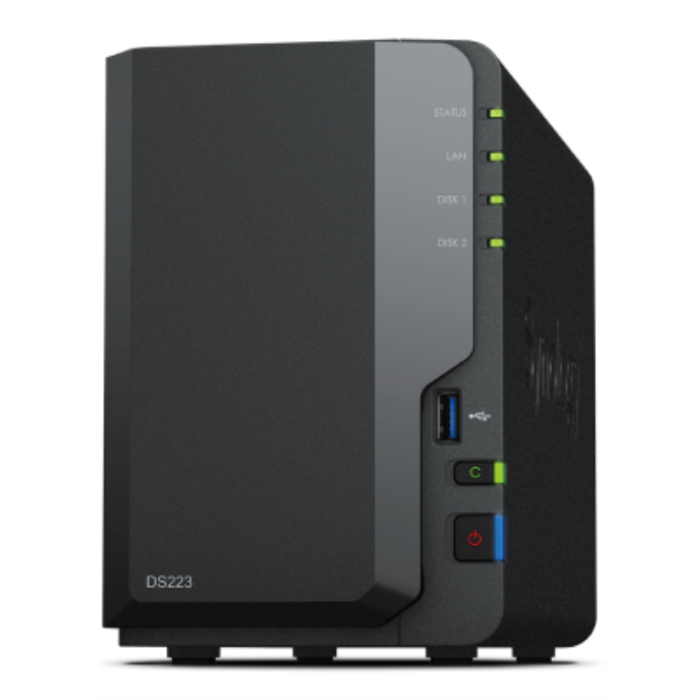

Synology DiskStation DS223 desktop NAS/storage server with a two-bay chassis, compatible with 2.5" or 3.5" HDD and SSD drives, and no disks included, as the total installed capacity is 0 TB. It features a quad-core Realtek RTD1619B processor at 1.7 GHz and 2 GB DDR4 RAM, delivering balanced performance for file sharing and backup tasks on home or small office networks. It supports RAID 0, 1, and JBOD levels, with a Serial ATA III interface, and is compatible with file systems such as BTRFS, ext4, NTFS, exFAT, HFS+, and FAT, facilitating data management from different devices.
Specifications
Storage
- Storage drive capacity: 0 GB
- Storage drive interface: Serial ATA III
- Storage drive size: 2.5/3.5"
- RAID support: Yes
- RAID levels: 0, 1, JBOD
- Supported file systems: BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 2
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: Realtek
- Processor family: Realtek
- Processor model: RTD1619B
- Processor frequency: 1.7 GHz
- Processor cores: 4
Memory
- Internal memory: 2 GB
- Internal memory type: DDR4
Network
- Ethernet LAN: Yes
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Ethernet LAN (RJ-45) ports: 1
Design
- Chassis type: Desktop
- Cooling type: Active
- Number of fans: 1 fan(s)
- Fan diameter: 9.2 cm
- LED indicators: Yes
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Performance
- Type: NAS
- Device class: Home & Home Office
- Backup function: Yes
- Number of users: 1024 user(s)
- Noise level: 14.6 dB
- Access Control List (ACL): Yes
- On/off switch: Yes
- Browser supported: Google Chrome, Firefox, Microsoft Edge, Safari
- USB copy function: Yes
Power
- Power supply unit (PSU) capacity: 60 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 108 mm
- Depth: 232.7 mm
- Height: 165 mm
- Weight: 1.28 kg
Packaging content
- External power adapter: Yes
- Cables included: AC, LAN (RJ-45)
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 60 °C
