Description

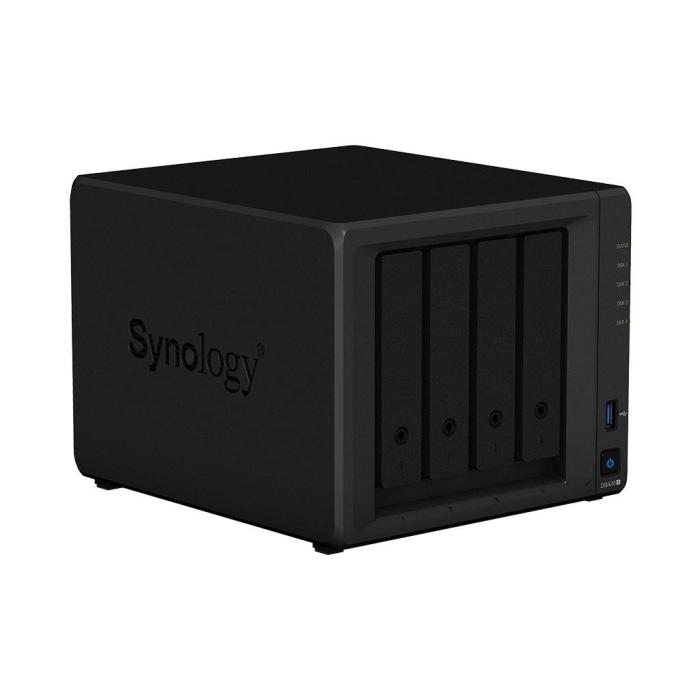

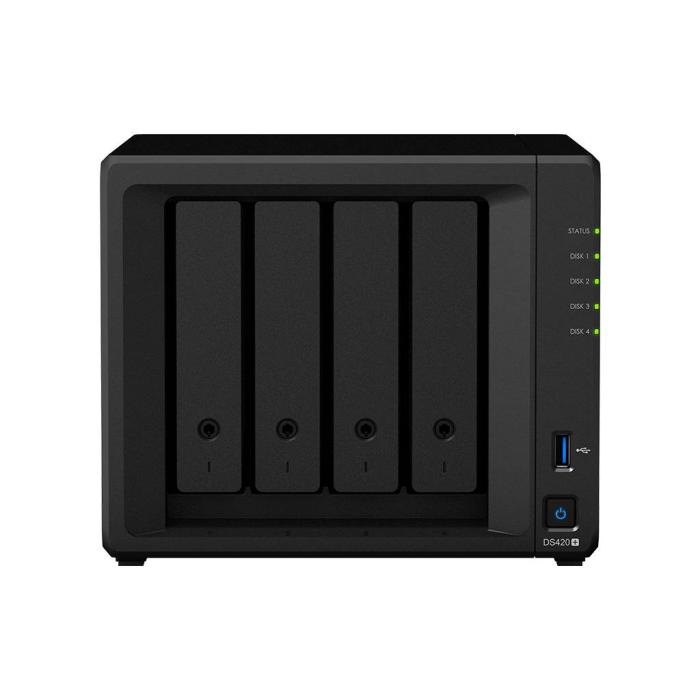

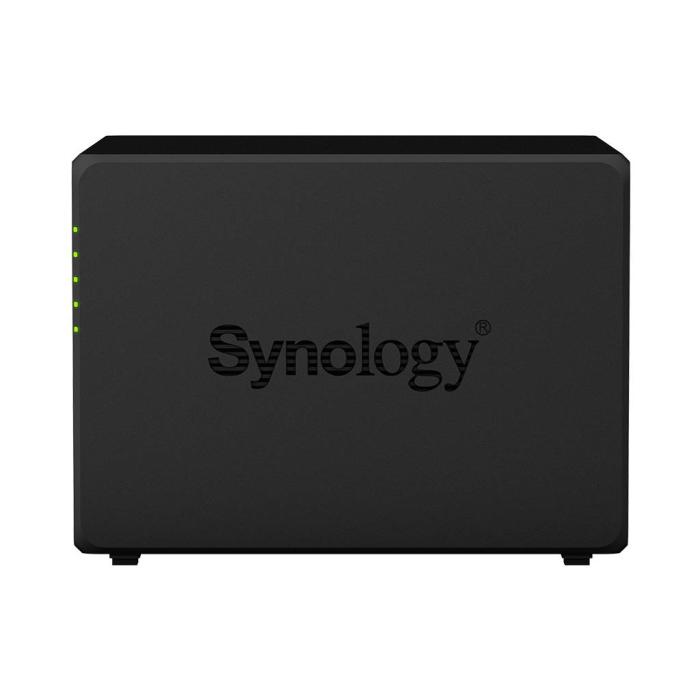

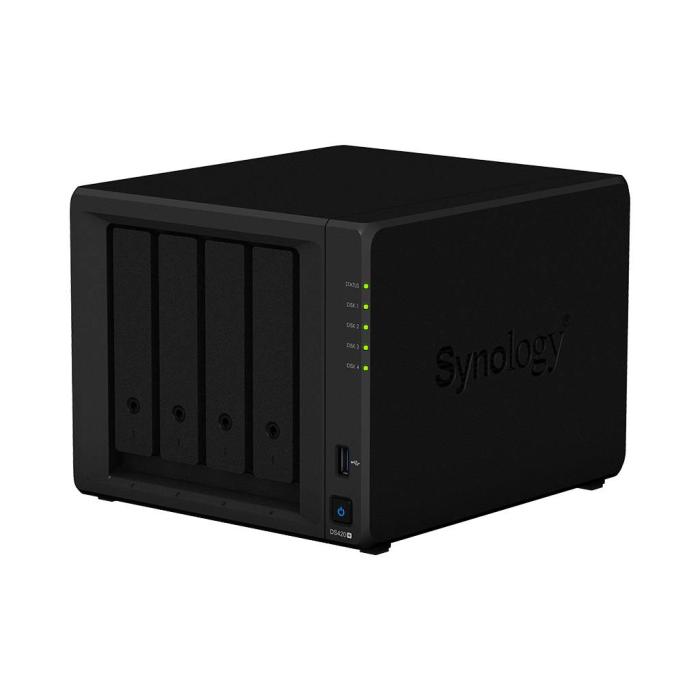

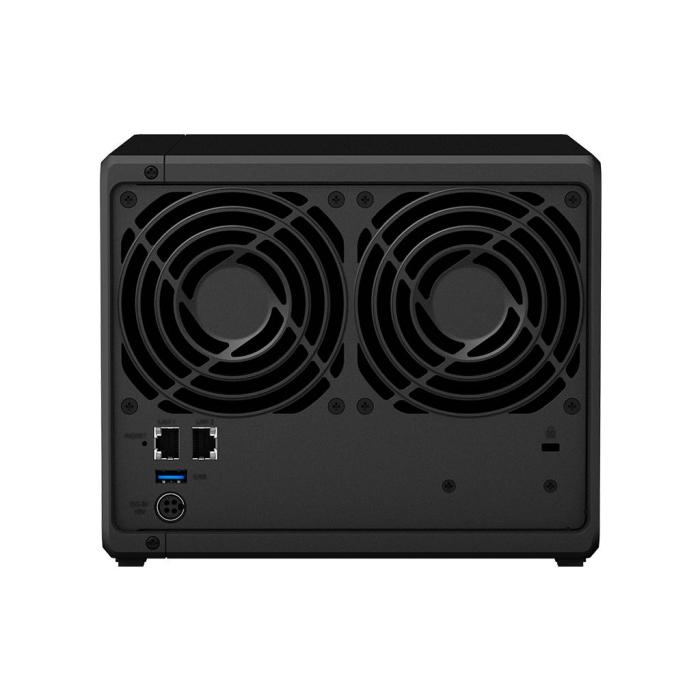

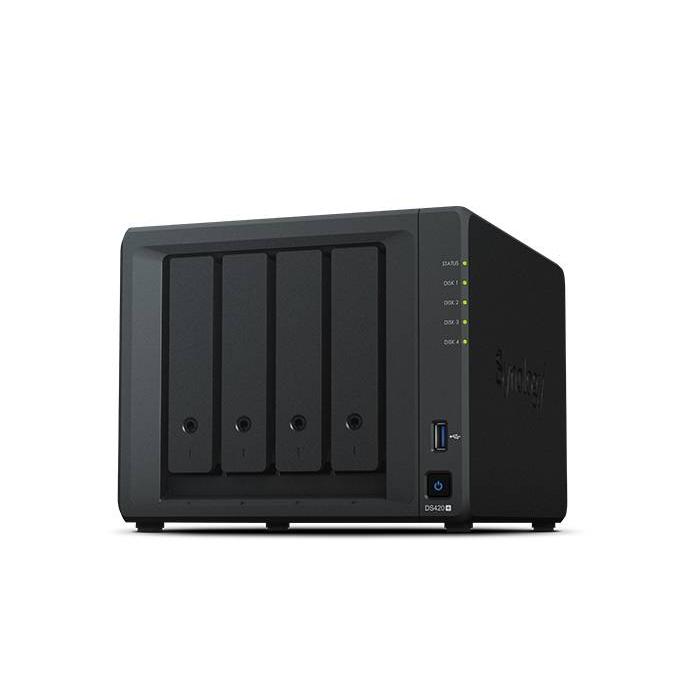

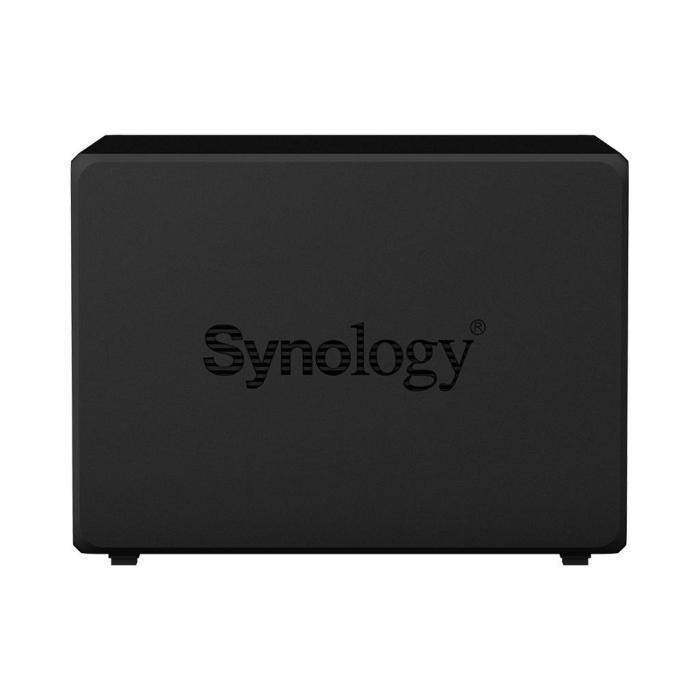

The Synology DiskStation DS420+ in black is a desktop NAS storage server that arrives without drives installed, offering 4 hot-swap bays compatible with 2.5-inch and 3.5-inch HDD or SSD drives, plus 2 M.2 slots for cache, and supports a maximum capacity of 64 TB. It features an Intel Celeron J4025 processor with 2 cores and 2 threads, 2 GB of DDR4 memory, and manages RAID 0, 1, 5, 6, and 10 configurations. This model works with file systems such as BTRFS, ext4, NTFS, exFAT, among others, and its bays allow hot-swapping drives to maintain data availability.
Specifications
Storage
- Storage drive capacity: 0 GB
- Supported storage drive interfaces: M.2, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5"
- Maximum supported storage capacity: 64 TB
- Number of M.2 (M & B) slots: 2
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10
- Hot-swap drive bays: Yes
- Supported file systems: BTRFS, Fat, HFS+, NTFS, exFAT, ext2, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 4
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Celeron®
- Processor model: J4025
- Processor frequency: 2 GHz
- Processor boost frequency: 2.9 GHz
- Processor cores: 2
- Processor threads: 2
- Processor cache: 4 MB
- CPU configuration (max): 1
- PCI Express configurations: 1x4+1x2, 4x1, 2x1+1x2+1x2
- PCI Express slots version: 2.0
- Processor codename: Gemini Lake Refresh
- Processor lithography: 14 nm
- Processor operating modes: 64-bit
- Processor package size: 25 x 24 mm
- Processor socket: BGA 1090
- Tjunction: 105 °C
- Thermal Design Power (TDP): 10 W
- On-board graphics card model: Intel® UHD Graphics 600
- Maximum internal memory supported by processor: 8 GB
Memory
- Internal memory: 2 GB
- Internal memory type: DDR4
- Maximum RAM supported: 6 GB
- Memory slots: 1
- ECC: No
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Ethernet LAN data rate supported (max): 10000 Mbit/s
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 2
Graphics
- On-board graphics card base frequency: 250 MHz
- On-board graphics card burst frequency: 700 MHz
- On-board graphics card dynamic frequency (max): 700 MHz
- On-board graphics card DirectX version: 12.0
- On-board graphics card OpenGL version: 4.4
- On-board graphics card ID: 0x3185
- Maximum on-board graphics card memory: 8 GB
- Number of displays supported (on-board graphics): 3
Design
- Chassis type: Desktop
- Cooling type: Active
- Product colour: Black
- Number of fans: 2 fan(s)
- Fan diameter: 9.2 cm
- Fan diameter 2: 9.2 cm
- Drive bay locking: Yes
- LED indicators: Yes
Performance
- Type: NAS
- Device class: Home & Home Office
- Backup function: Yes
- Noise level: 19 dB
- On/off switch: Yes
Power
- Power supply location: External
- Power supply unit (PSU) capacity: 90 W
- Number of power supply units: 1
- Power consumption (typical): 28.3 W
- Power consumption (HDD standby): 8.45 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 / 60 Hz
Weight & dimensions
- Width: 199 mm
- Depth: 223 mm
- Height: 166 mm
- Weight: 2.18 kg
Processor special features
- Embedded options available: No
- Enhanced Intel SpeedStep Technology: Yes
- Execute Disable Bit: Yes
- Idle States: Yes
- Intel 64: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Intel® Anti-Theft Technology (Intel® AT): No
- Intel® Hyper Threading Technology (Intel® HT Technology): No
- Intel® Identity Protection Technology (Intel® IPT): Yes
- Intel® OS Guard: Yes
- Intel® Quick Sync Video Technology: Yes
- Intel® Secure Key: Yes
- Intel® Smart Response Technology: No
- Intel® Turbo Boost Technology: No
- Maximum number of PCI Express lanes: 6
- Number of execution units: 12
- Thermal Monitoring Technologies: Yes
- UART: Yes
- Memory types supported by processor: DDR4-SDRAM, LPDDR4-SDRAM
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 5 - 95%
Logistics data
- Harmonized System (HS) code: 84714100
Other features
- Compliance certificates: RoHS
- Certification: EAC VCCI CCC RCM KC FCC CE BSMI
- Processor ARK ID: 197307
