Description

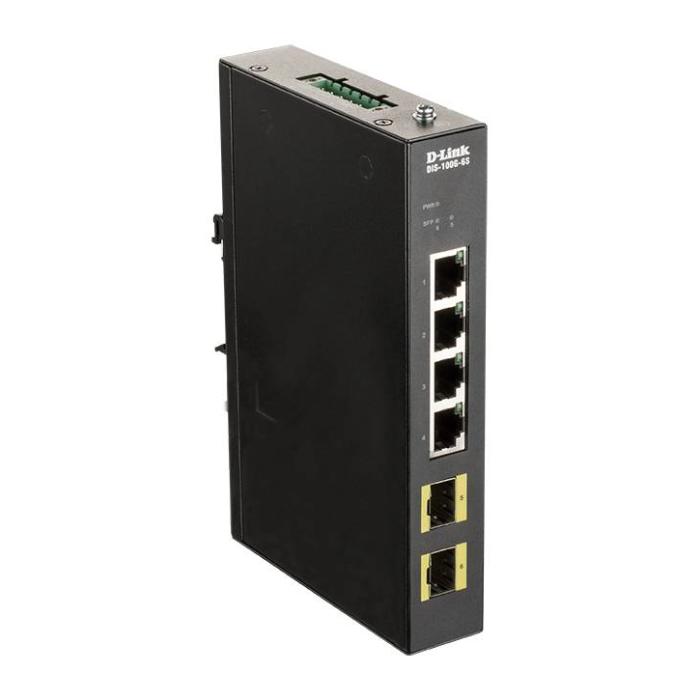

The D-Link DIS-100G-6S is an unmanaged DIN rail mount switch in black, measuring 162 x 102 x 28 mm and weighing 446 g, designed to be mounted on a rail in installation cabinets. It incorporates four Gigabit Ethernet RJ-45 ports (10/100/1000) and two SFP module slots, allowing copper and fibre connections to be combined in a single device. Its switching capacity reaches 12 Gbit/s and the forwarding rate reaches 8.928 Mpps, with store-and-forward transmission method and a MAC address table of 4000 entries. It supports Jumbo Frames of up to 9000 bytes, useful for moving large blocks of data within the local network. It complies with the IEEE 802.3, IEEE 802.3ab, IEEE 802.3u and IEEE 802.3z standards, with 1000BASE-T cabling technology and Auto MDI/MDI-X function for connections. It also offers quality of service (QoS) support and IP40 protection against dust and solid objects.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
- Copper ethernet cabling technology: 1000BASE-T
- Auto MDI/MDI-X: Yes
Data transmission
- Switching capacity: 12 Gbit/s
- Forwarding rate: 8.928 Mpps
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Transmission method: Store-and-forward
Design
- Stackable: Yes
- Form factor: DIN rail
- Product colour: Black
- LED indicators: Yes
- International Protection (IP) code: IP40
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 569768 h
Power
- Power source: DC
- DC input voltage: 12 - 48 V
- Input current: 1 A
- Power consumption (max): 4.82 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -20 - 65 °C
- Storage temperature (T-T): -20 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 162 mm
- Depth: 28 mm
- Height: 102 mm
- Weight: 446 g
Certificates
- Certification: 47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A) EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000
Logistics data
- Harmonized System (HS) code: 85176990
