Description

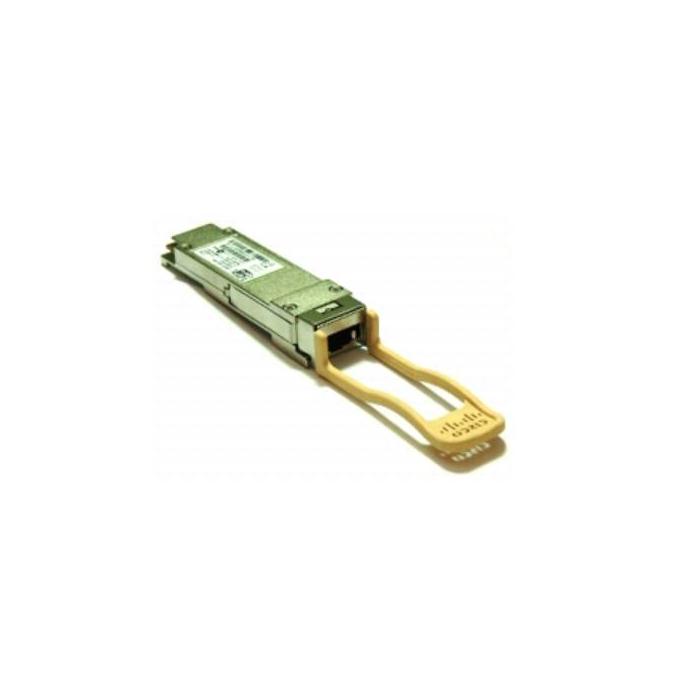

Cisco QSFP optical transceiver for 40000 Mbit/s networks, with QSFP interface and SFP BX and SR types, operating at a wavelength of 850 nm over multimode fibre. It includes an LC connector and achieves a maximum transfer distance of 150 metres, complying with the IEEE 802.3ba standard for high-speed links. Its hot-plug compatible design allows insertion or removal without interrupting the equipment, with an energy consumption of only 3.5 W and MSA certification, also supporting Auto MDI/MDI-X to simplify connection. It operates in a temperature range of 0 to 70 °C and is supplied as a single unit.
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 40000 Mbit/s
- Interface type: QSFP
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: BX, SR
- Maximum transfer distance: 150 m
- Wavelength: 850 nm
- Networking standards: IEEE 802.3ba
- Auto MDI/MDI-X: Yes
Features
- Hot-Plug support: Yes
Power
- Power consumption (typical): 3.5 W
Certificates
- Certification: MSA
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 10 - 80%
- Storage relative humidity (H-H): 10 - 85%
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 85369010
