Description

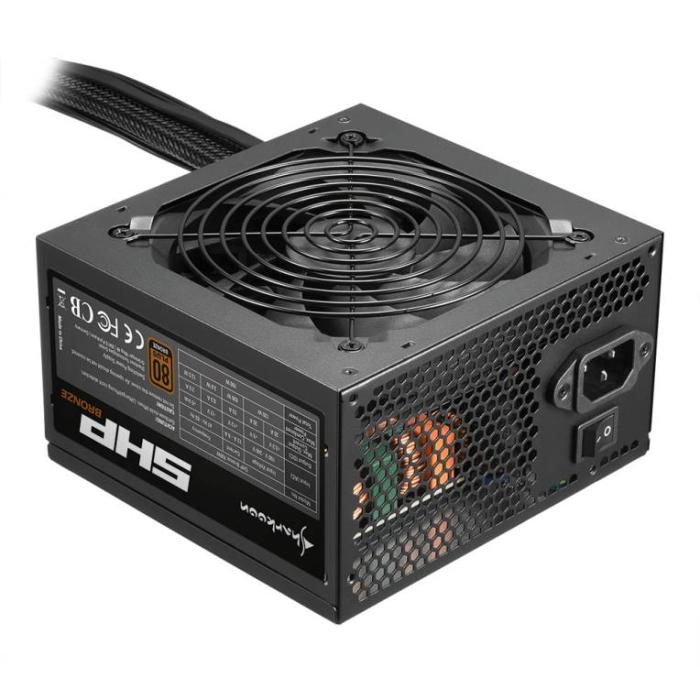

The Sharkoon SHP Bronze 700 W power supply in black offers a combined power of 636 W on the +12 V rail, with a maximum output current of 53 A to power demanding components. Its 20+4 pin ATX connector and 8-pin EPS connector ensure compatibility with current motherboards and processors. It includes protection against overvoltage, overcurrent, short circuit, and undervoltage, along with active power factor correction for stable operation. With an input voltage of 100-240 V and a frequency of 47-63 Hz, this unit adapts to various electrical networks, providing the 3.3 V, 5 V, and 5Vsb outputs with their respective combined powers.
Specifications
Power
- Total power: 700 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 12/6 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 130 W
- Combined power (+12V): 636 W
- Combined power (+5V): 130 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 53 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 550 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 70 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 75 cm
- ATX power connector (20+4 pin): Yes
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.3
- Bearing technology: Sleeve
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content
- Cables included: AC
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: 1.6 kg
Packaging data
- Package type: Box
Technical details
- Sustainability certificates: ErP
Logistics data
- Harmonized System (HS) code: 84733020
