Description

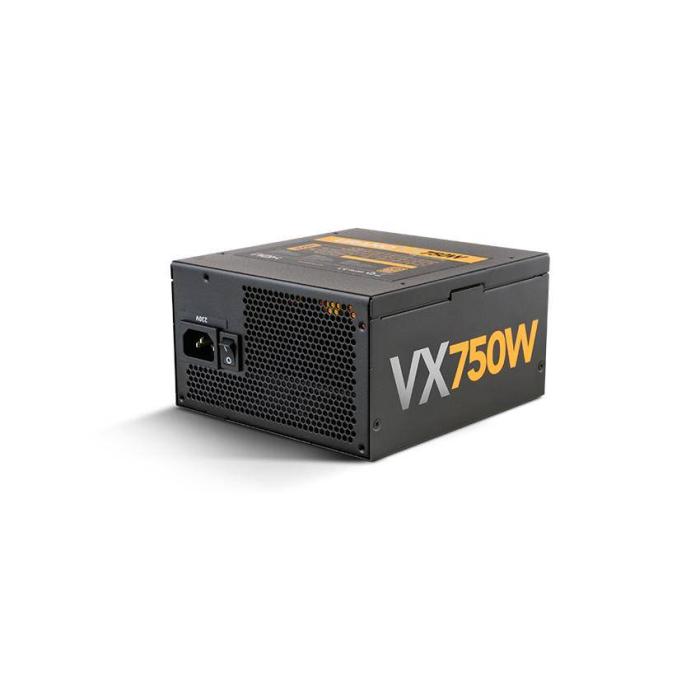

La NOX Urano VX Bronze Edition power supply unit, in black with orange detailing, offers a total power of 750 W in ATX format with a main 20+4 pin connector. It features 85% efficiency and active power factor correction, along with protections against overcurrent, overvoltage, overheating, overload, short circuit, and undervoltage. It provides a maximum current of 62 A on the +12 V rail (744 W combined), 25 A on +3.3 V and +5 V, and 3 A on +5 VSB, with AC input of 200-240 V and a frequency of 47-63 Hz. It includes a floppy disk drive connector and meets the basic needs of a desktop system.
Specifications
Power
- Total power: 750 W
- AC input voltage: 200 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 5 A
- Power Factor Correction (PFC) type: Active

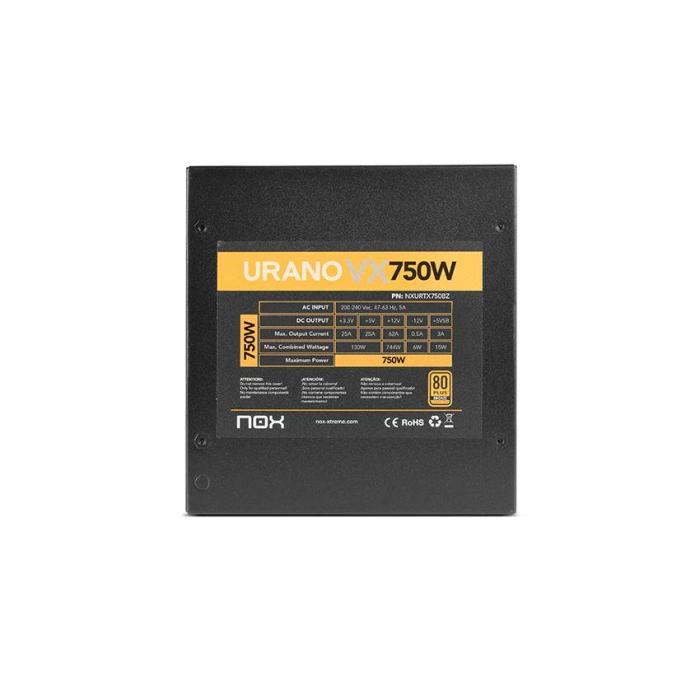

- Combined power (+3.3V): 130 W
- Combined power (+12V): 744 W
- Combined power (+5V): 130 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 62 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Efficiency: 85%
- Power protection features: Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces

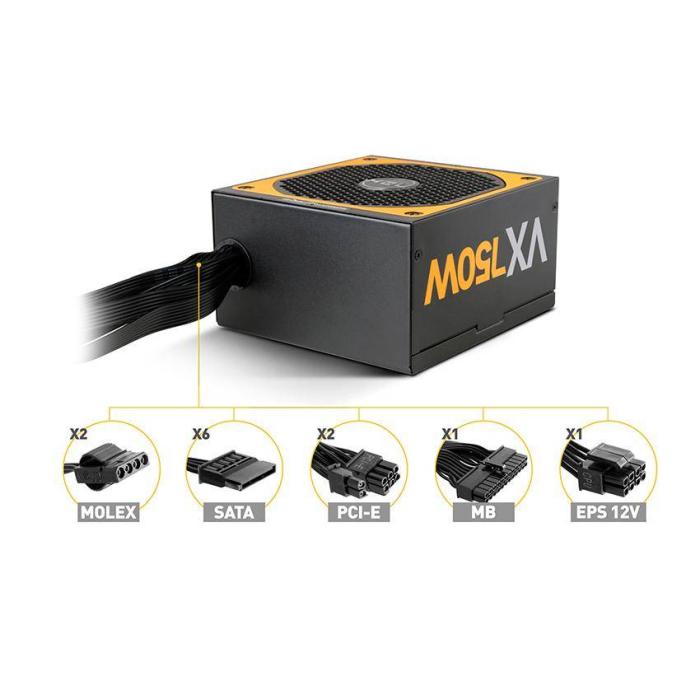

- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- SATA power cable length: 600, 750, 900 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 600, 750 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 2
- ATX power connector (20+4 pin): Yes
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 90 cm
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.4
- EPS version: 2.92
- Silent mode: Yes
Design
- Product colour: Black, Orange
- Cooling type: Active

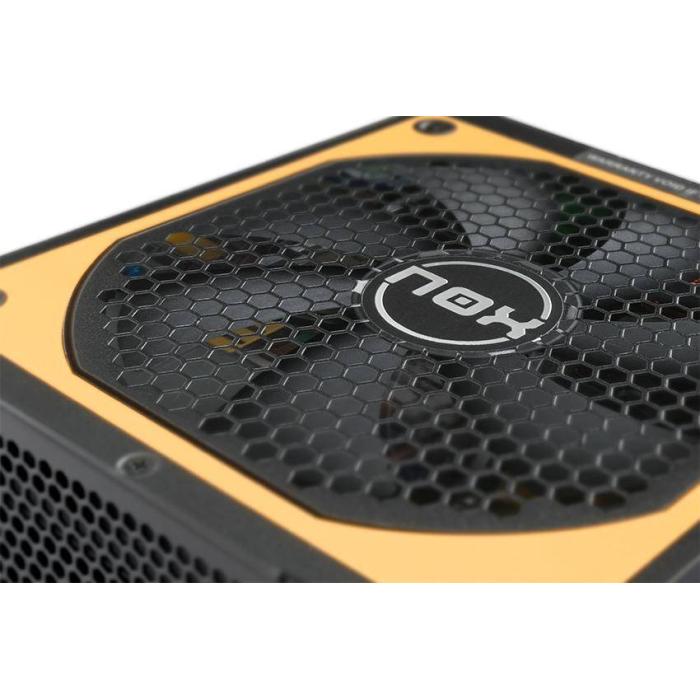

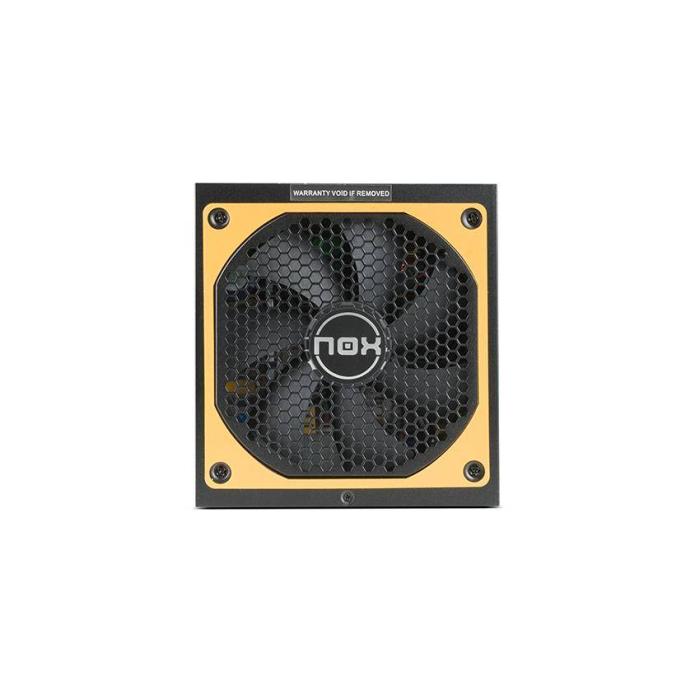

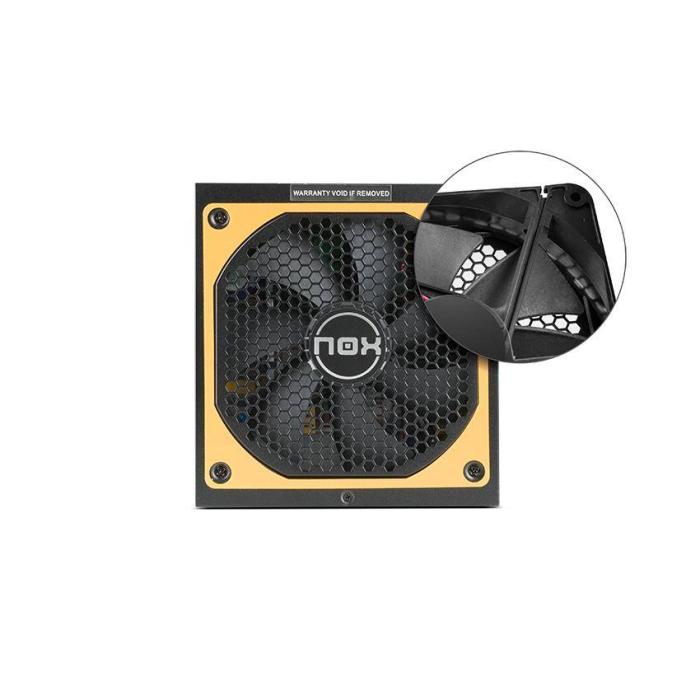

- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Certificates
- Compliance certificates: RoHS
- Certification: CE, WEEE, ERP 2013
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 85 mm
- Weight: 1.95 kg
Packaging data
- Manual: Yes
- Package type: Box
Other features
- Mounting type: Rack mounting

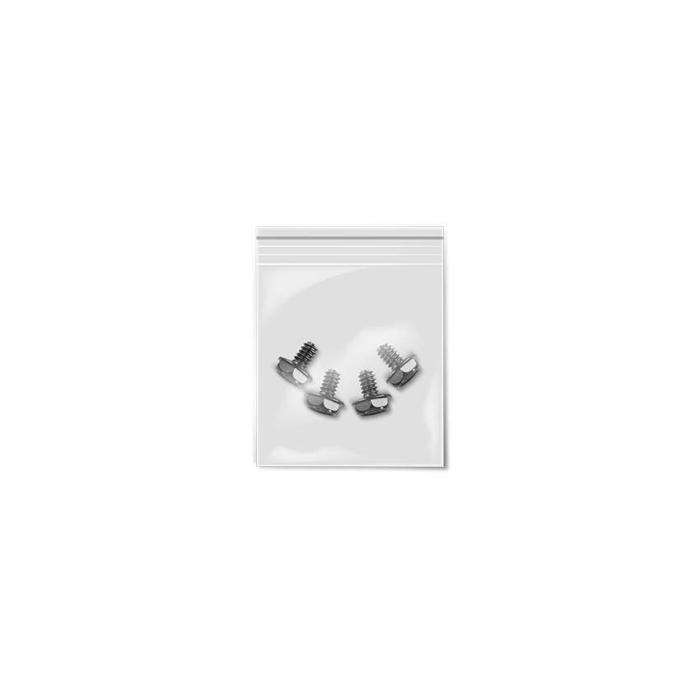

- Screws included: Yes
- Number of screws: 4
- Power management: Yes
- Parallel processing technology support: 2-Way SLI, CrossFireX
- Housing colour: Black
