Description

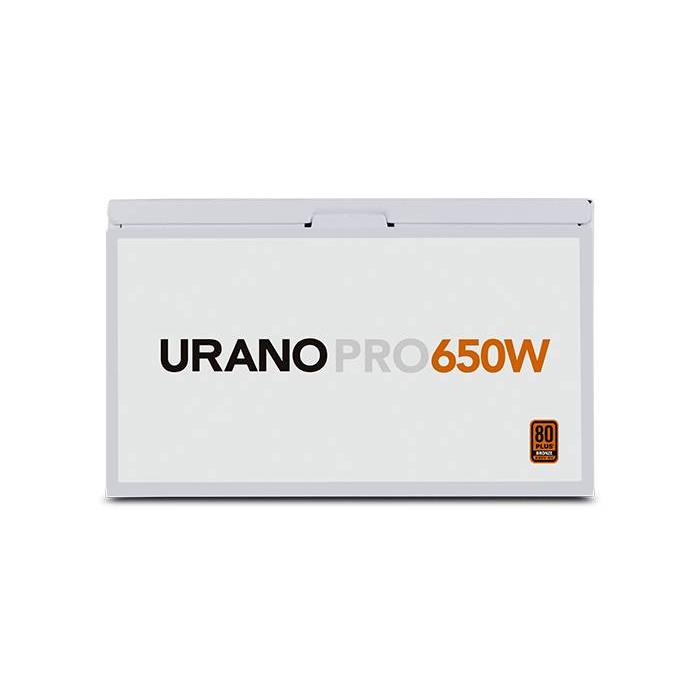

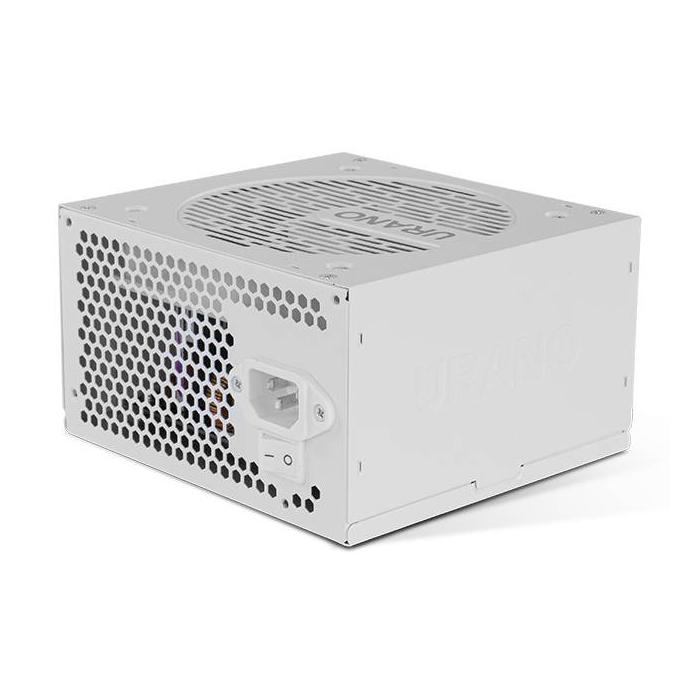

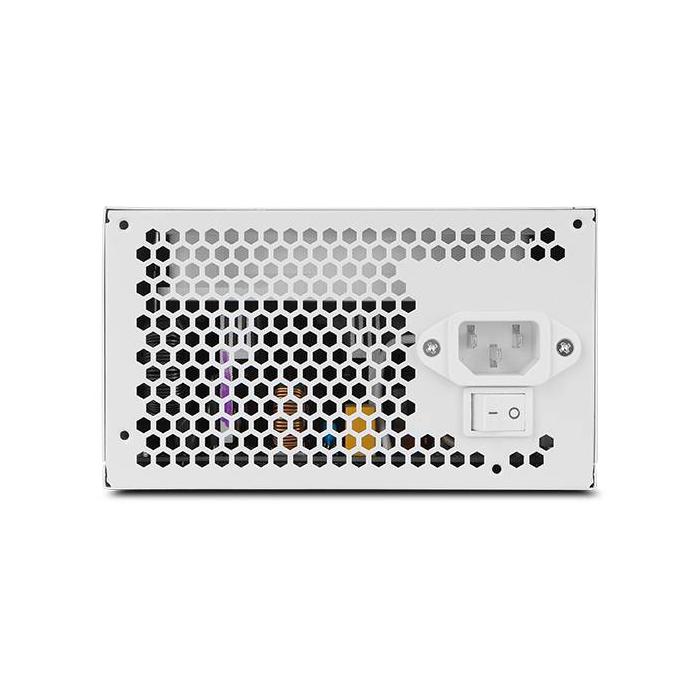

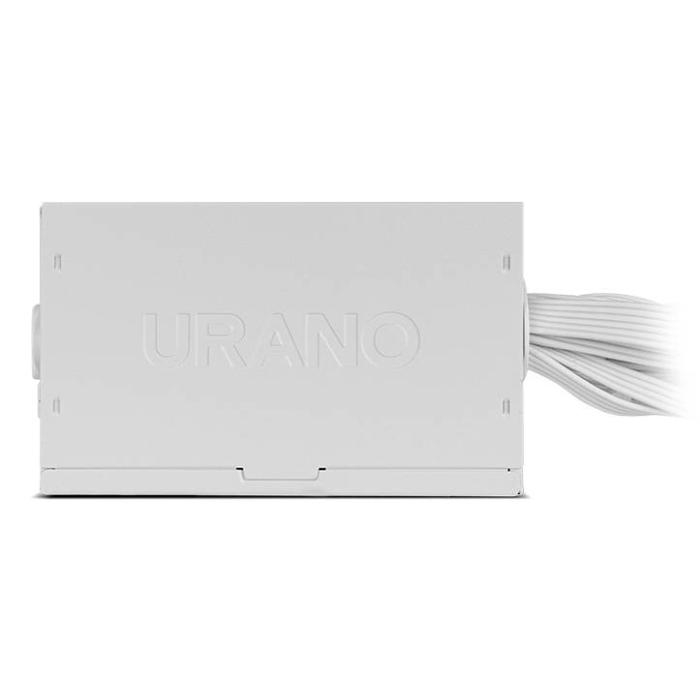

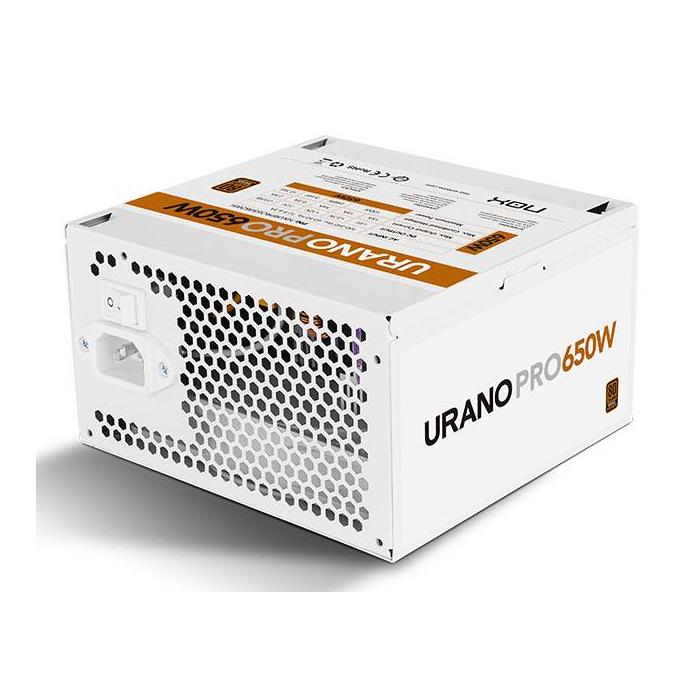

The NOX Urano PRO White 650W Bronze power supply unit, in its white colour variant, features an ATX form factor with a total output of 650 W and 80 PLUS Bronze certification. Its design includes active PFC and protections against short circuit, overvoltage, and undervoltage, among others. Regarding connectivity, it offers a 20+4-pin ATX connector, a 4+4-pin EPS, a 6+2-pin PCI Express, four SATA connectors, and two 4-pin Molex connectors, thus covering the basic cable needs for a standard configuration. Its input voltage range is 100-240 V with a frequency of 50/60 Hz, and a maximum output current of 54 A on the +12 V rail.
Specifications

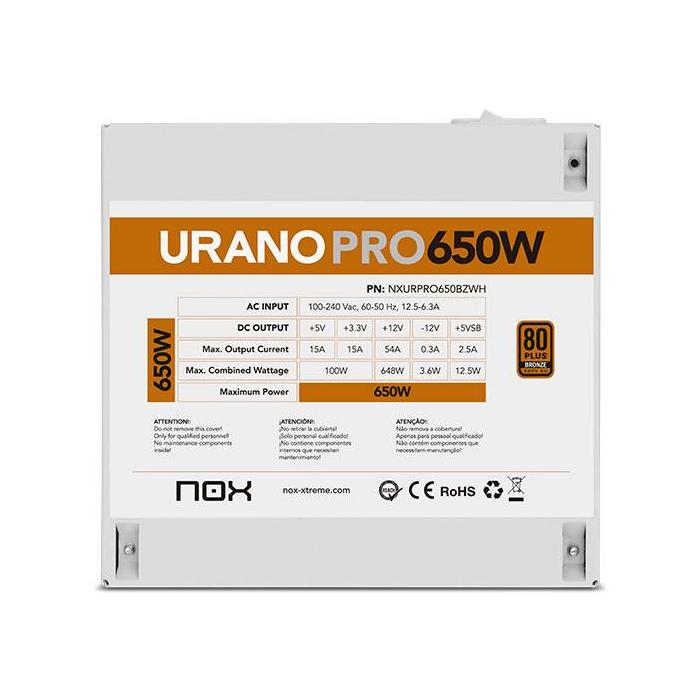

Power
- Total power: 650 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 12.5 - 6.3 A
- Power Factor Correction (PFC) type: Active
- Combined power (+5Vsb): 2.5 W
- Max output current (+3.3V): 15 A
- Max output current (+12V): 54 A
- Max output current (+12V1): 0.3 A
- Max output current (+5V): 15 A
- Power protection features: No load operation, Over power, Over total voltage, Over voltage, Short circuit, Under voltage

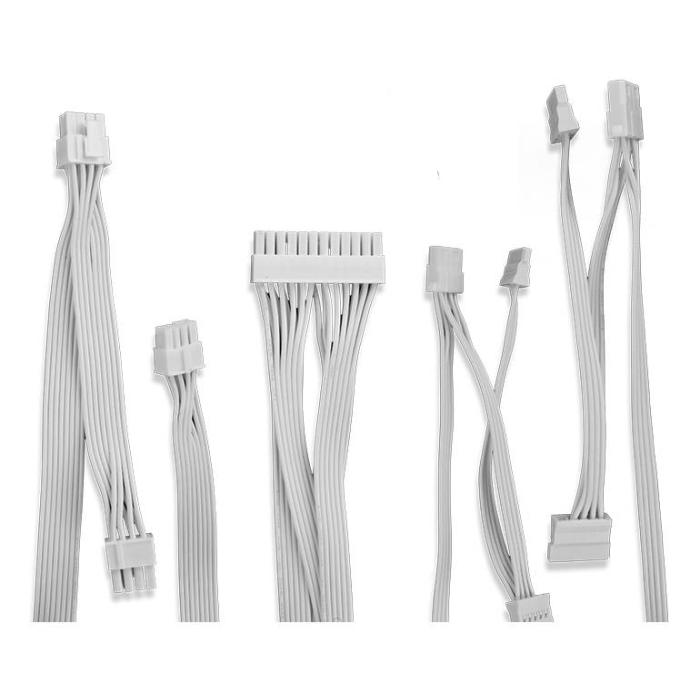

Ports & interfaces
- Number of SATA power connectors: 4
- Peripheral (Molex) power connectors (4-pin): 2
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 1
- ATX power connector (20+4 pin): Yes
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: White

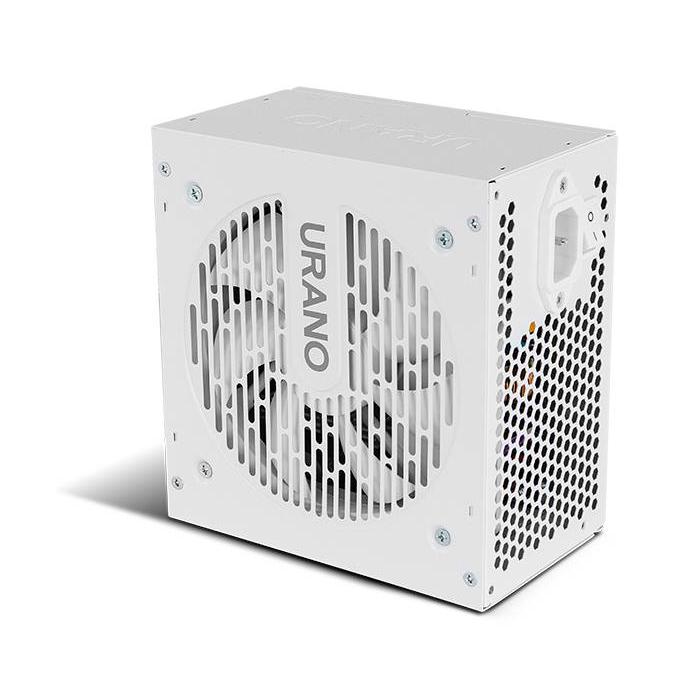

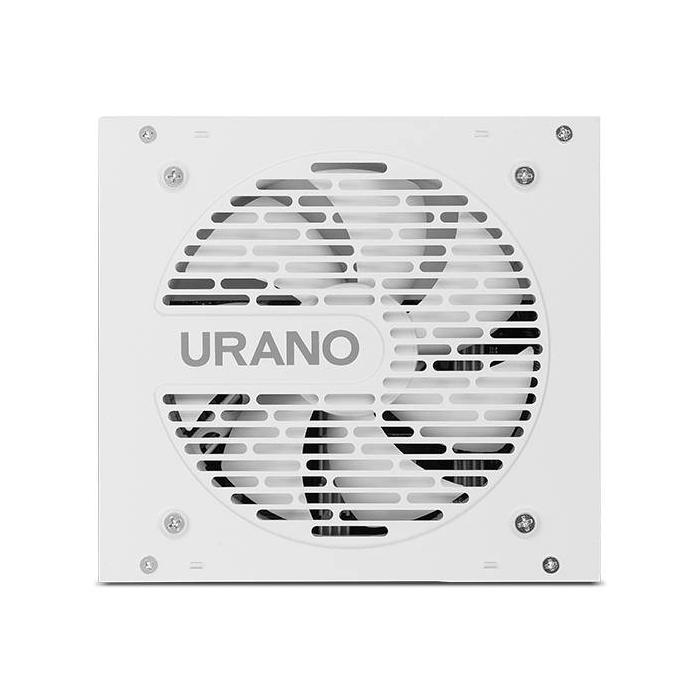

- Fan diameter: 12 cm
Weight & dimensions
- Width: 150 mm
- Depth: 85 mm
- Height: 140 mm
- Weight: 1.61 kg
