Description

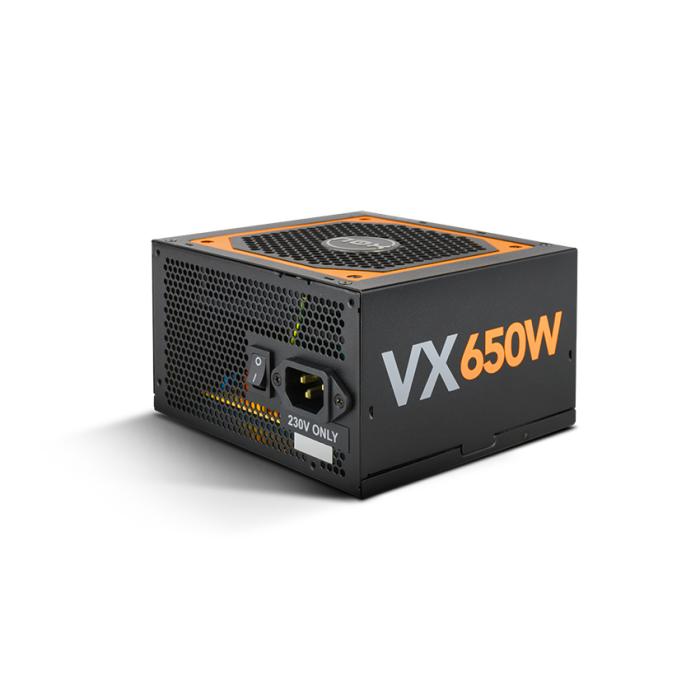

The NOX Urano VX Bronze Edition power supply unit, in its 650 W variant with black finish and orange details, delivers a total power of 650 W with an efficiency of 85% and active power factor correction. This ATX model with a main 20+4 pin connector provides a maximum output current of 50 A on the +12 V rail, totalling 600 W, along with protections against overvoltage, overcurrent, overload, short circuit and undervoltage. It also includes a floppy disk drive connector and operates with an AC input voltage of 200-240 V and a frequency of 47-63 Hz, suitable for standard configurations.
Specifications

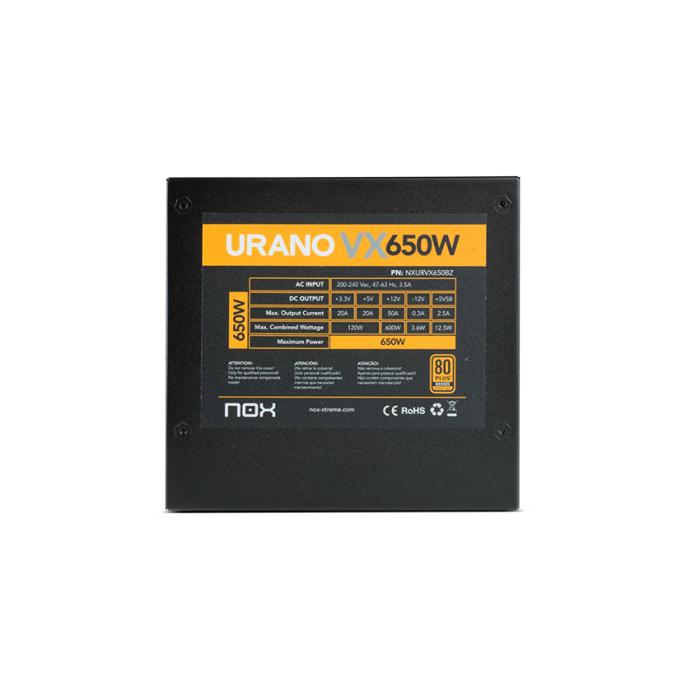

Power
- Total power: 650 W
- AC input voltage: 200 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 3.5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 600 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 50 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 85%
- Power protection features: Over power, Over voltage, Overload, Short circuit, Under voltage

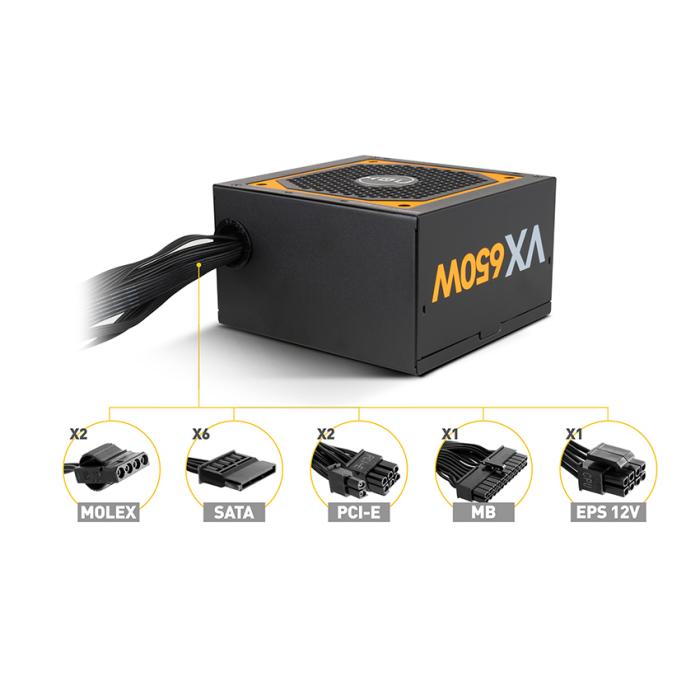

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- SATA power cable length: 600, 750, 900 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 600, 750 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 2
- ATX power connector (20+4 pin): Yes
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 90 cm
- PCI Express connector: Yes
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.4
- EPS version: 2.92
- Silent mode: Yes
Design
- Product colour: Black, Orange
- Cooling type: Active

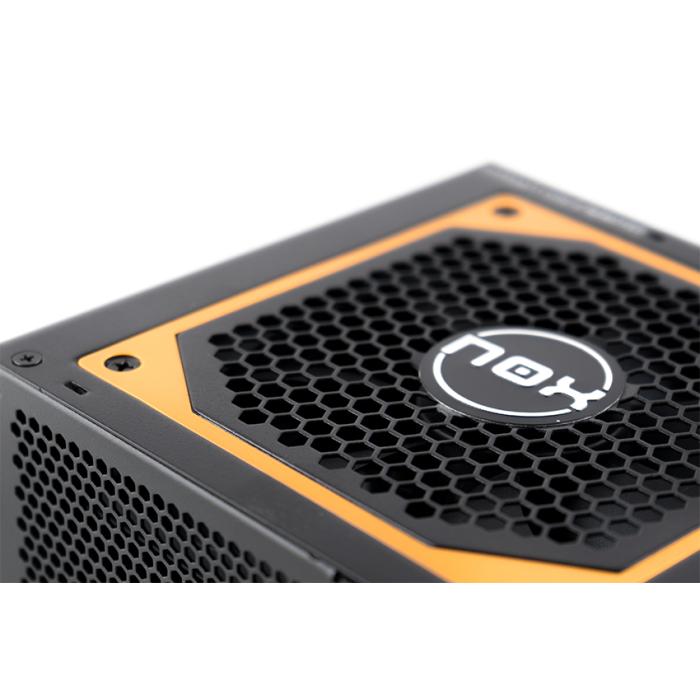

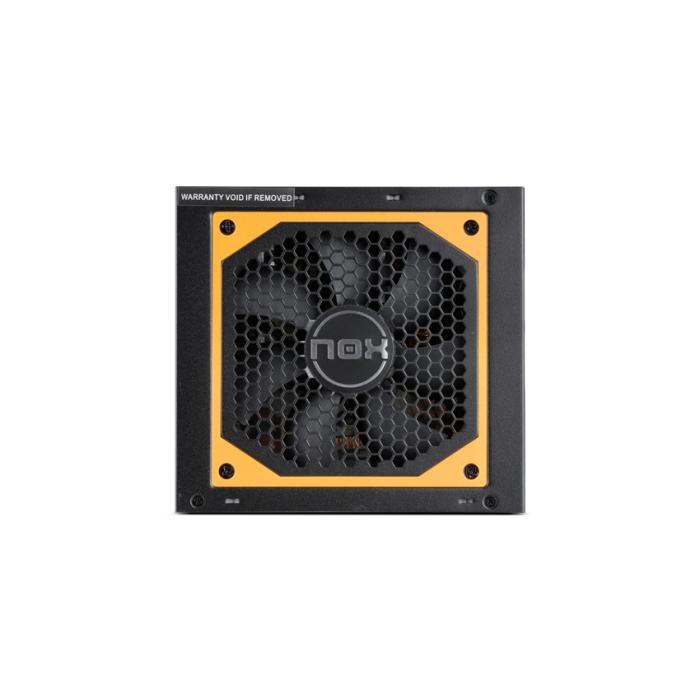

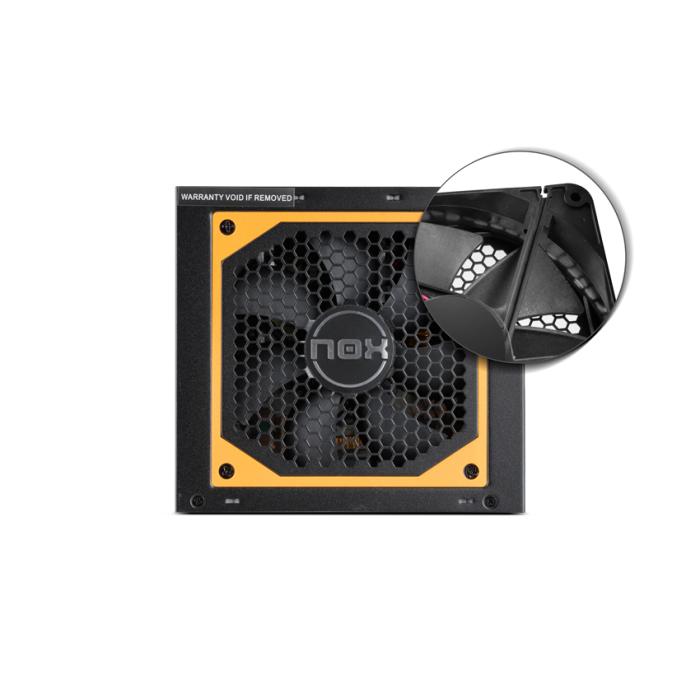

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top

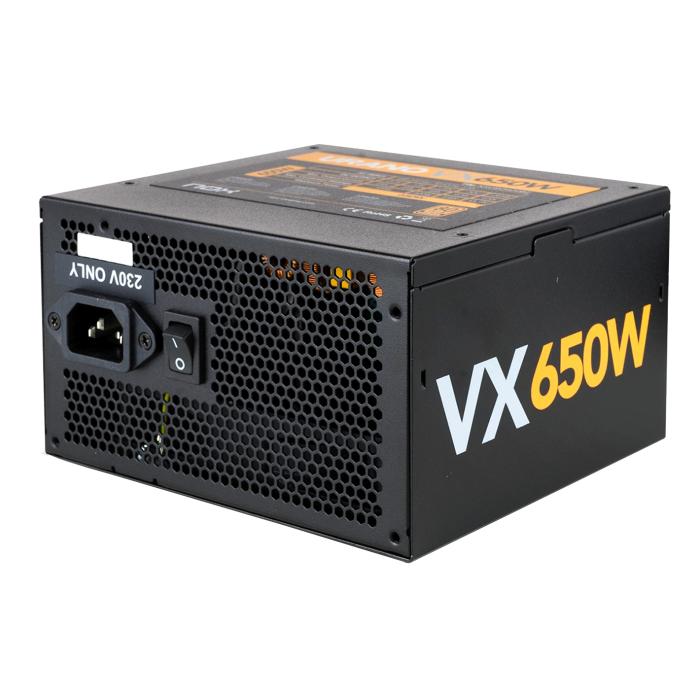

- On/off switch: Yes
Certificates
- Compliance certificates: RoHS
- Certification: CE, WEEE, ERP 2013
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 85 mm
- Weight: 1.42 kg
Packaging data
- Manual: Yes
- Package type: Box
Other features
- Mounting type: Rack mounting

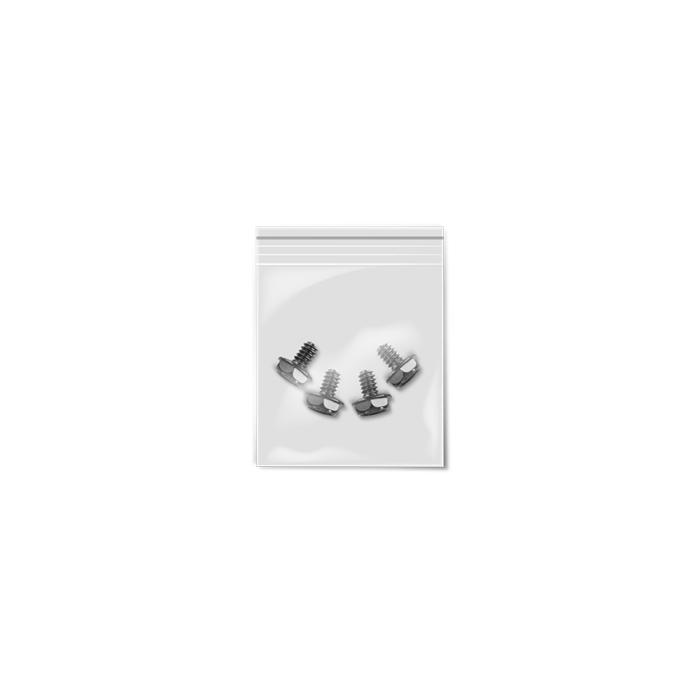

- Screws included: Yes
- Number of screws: 4
- Power management: Yes
- Parallel processing technology support: 2-Way SLI, CrossFireX
- Housing colour: Black
