Description

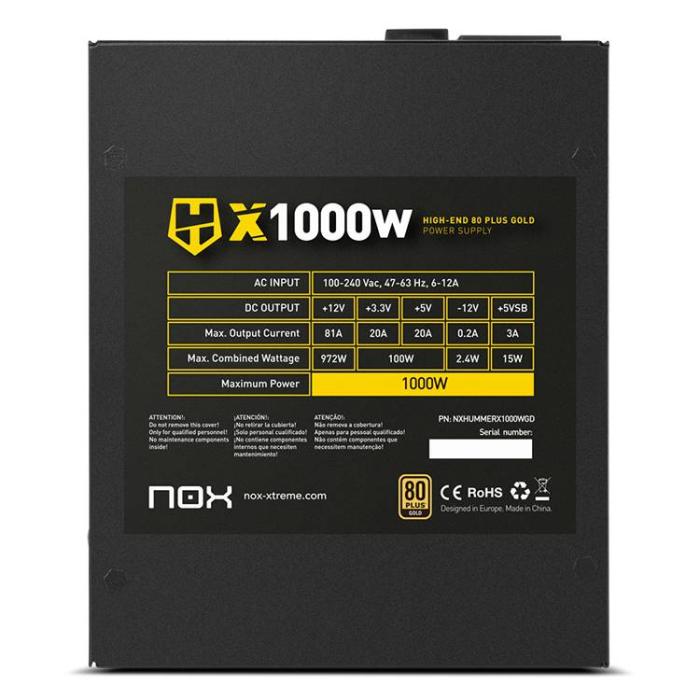

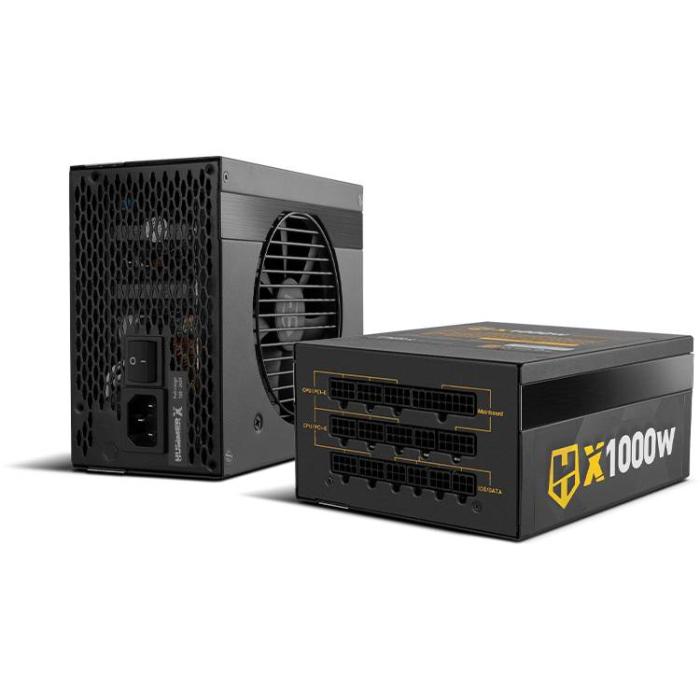

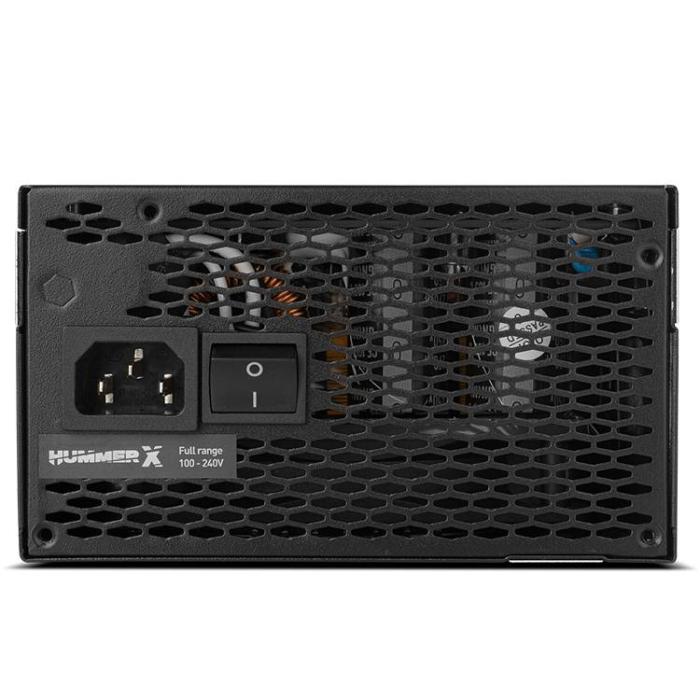

The NOX HUMMER X 1000W PLUS GOLD power supply unit, in its black variant, delivers a total power of 1000 W with a main 24-pin ATX connector for the motherboard. It incorporates protection against overvoltage, overcurrent, short circuit and undervoltage, with 90% efficiency and an active power factor. Its +12V output reaches 81 A (972 W), while the 3.3 V and 5 V lines offer 20 A each (100 W combined), and the +5VSB line supports up to 3 A. It accepts an input voltage of 100-240 V with a frequency of 47-63 Hz and an input current of 6 to 12 A, including complete protections for the system.
Specifications
Power
- Max output current (+3.3V): 20 A
- Max output current (+12V): 81 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.2 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%
- Power protection features: Over power, Over voltage, Short circuit, Under voltage
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 6 - 12 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 972 W
- Combined power (+5V): 100 W
- Combined power (-12V): 2.4 W
- Combined power (+5Vsb): 15 W

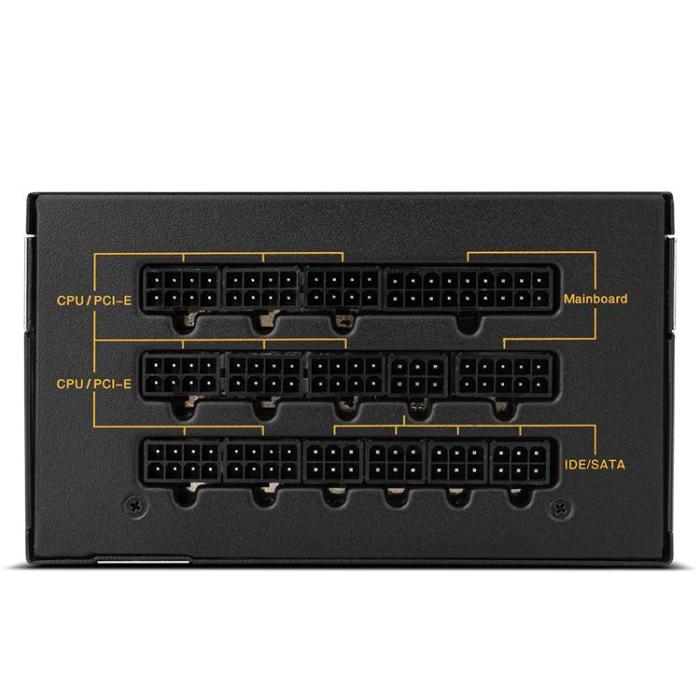

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 57 cm
- Number of SATA power connectors: 9
- SATA power cable length: 530 mm
- Peripheral (Molex) power connectors (4-pin): 4
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 53 cm
- ATX Power connector (24-pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- ATX version: 2.31
- EPS version: 2.92
- Silent mode: Yes
Design
- Product colour: Black
- Cooling type: Active

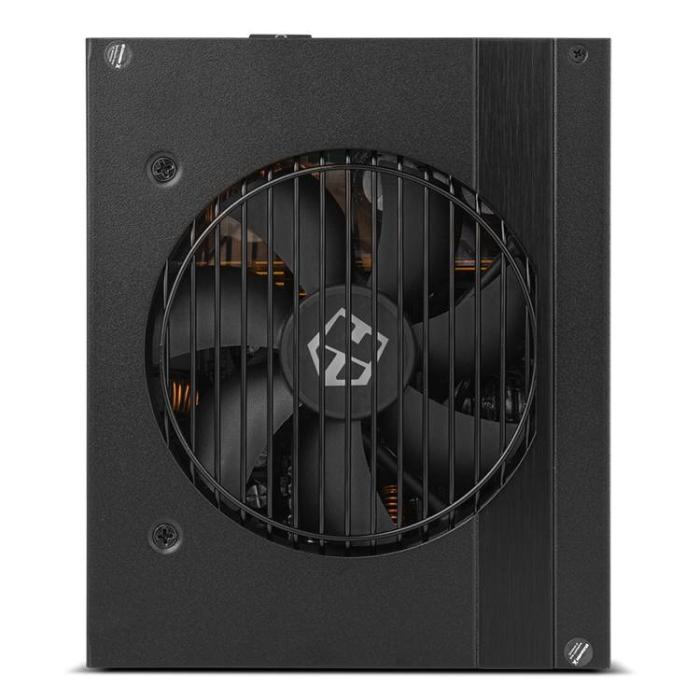

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top

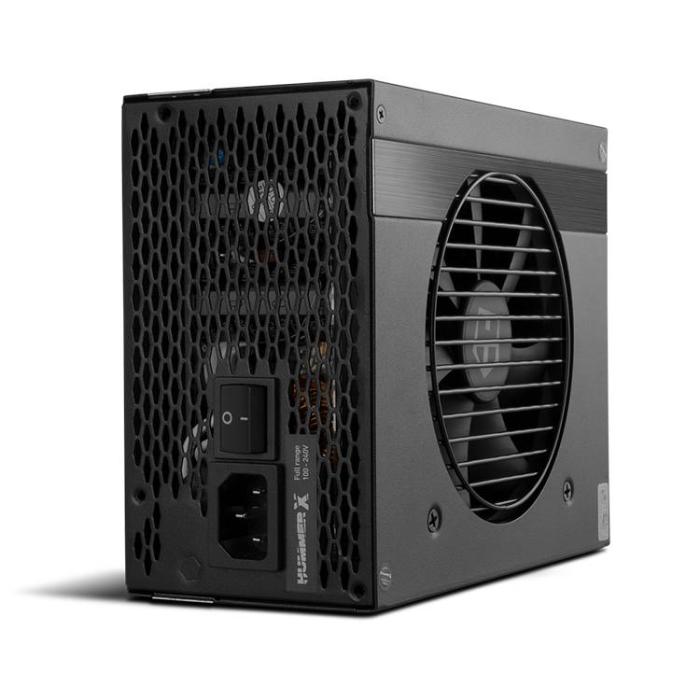

- On/off switch: Yes
Packaging content

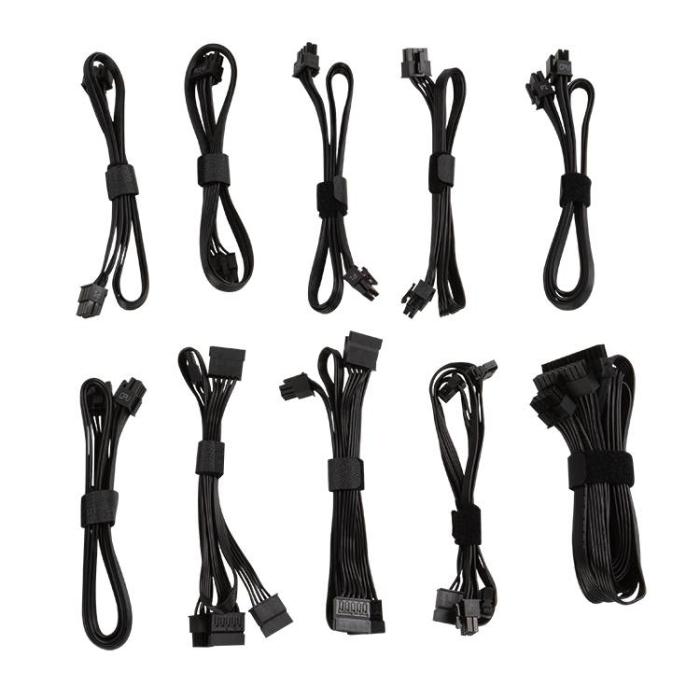

- Cables included: PCIe, Peripheral (Molex), SATA
Weight & dimensions
- Width: 150 mm
- Depth: 161 mm
- Height: 87 mm
- Weight: 2.25 kg
