Description

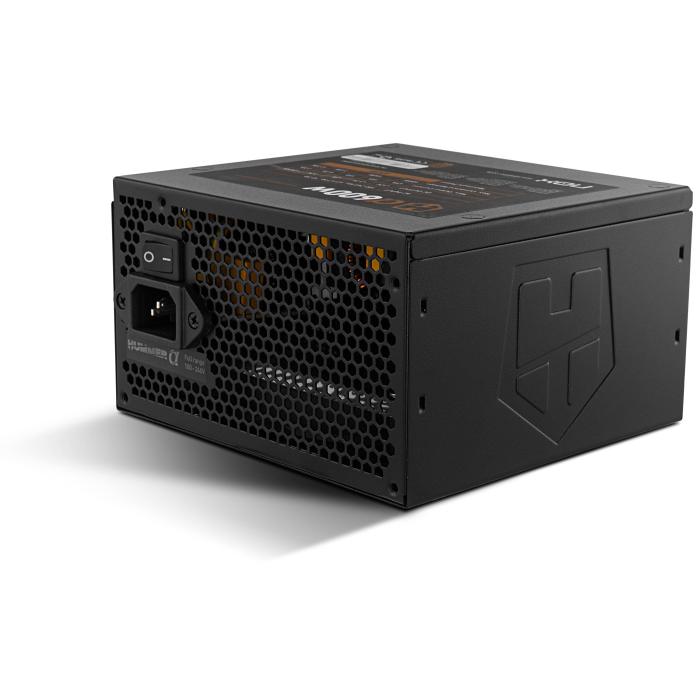

The NOX Hummer Alpha 600 W power supply unit in black delivers a total power of 600 W with a main 24-pin ATX connector and non-modular cabling. It features active power factor correction (active PFC) and built-in protection against overvoltage, overcurrent, short circuit and undervoltage, along with a maximum output current of 49 A on the +12 V rail. Its input voltage accepts a range of 100 to 240 V with a frequency of 47 to 63 Hz, and the combined power ratings reach 588 W on +12 V, 100 W on +3.3 V and +5 V, and 12.5 W on +5VSB. This unit, with its specific +3.3 V, +5 V and -12 V outputs, is suitable for systems requiring stable power delivery and robust basic protection.
Specifications

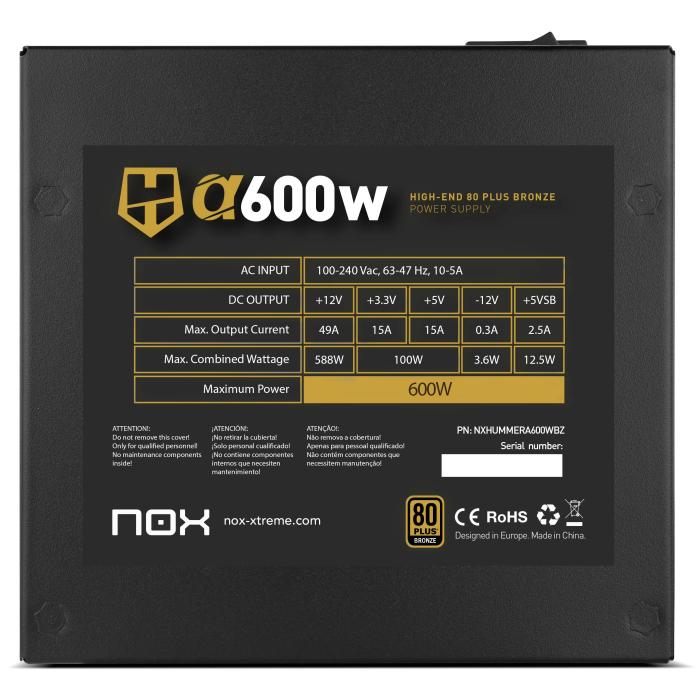

Power
- Total power: 600 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 5 - 10 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 588 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 15 A
- Max output current (+12V): 49 A
- Max output current (+12V1): 9 A
- Max output current (+5V): 15 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 50 cm
- Number of SATA power connectors: 5
- SATA power cable length: 500 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 500 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 1
- PCI Express power cable length: 50 cm
- ATX Power connector (24-pin): Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black
- Cooling type: Active

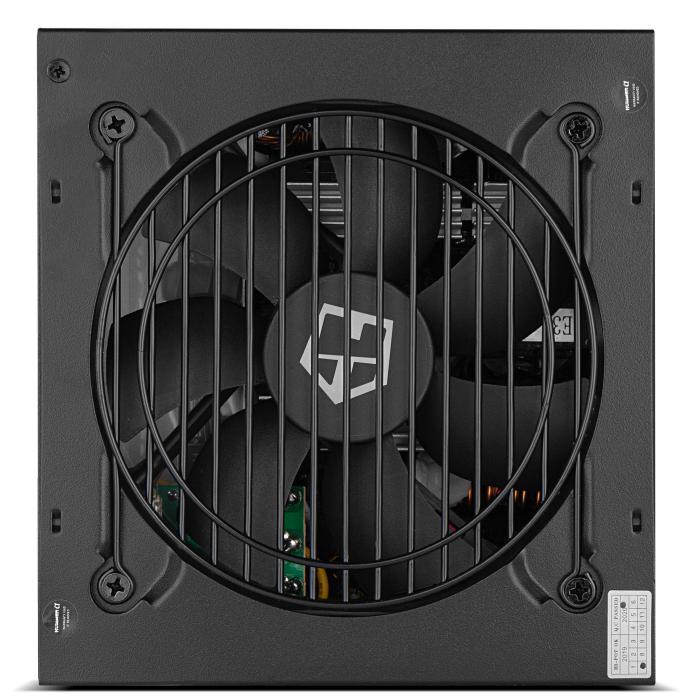

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)

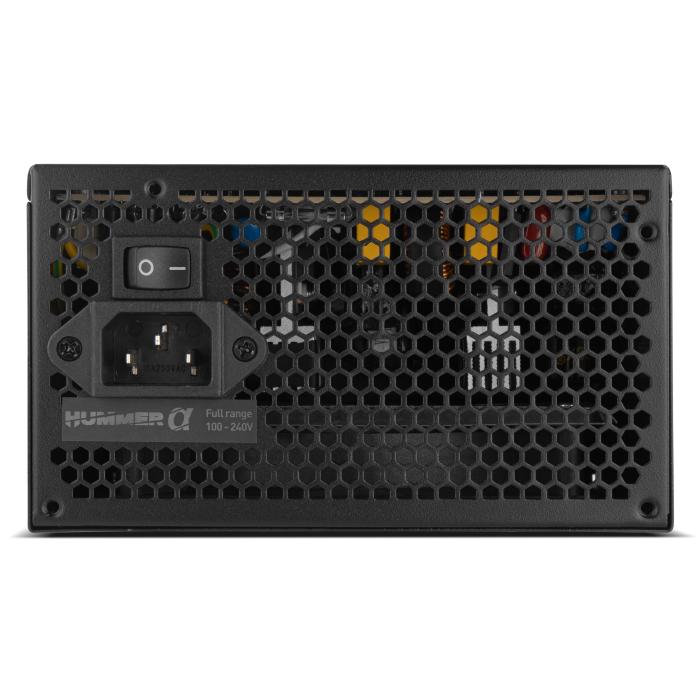

- On/off switch: Yes
Certificates
- Compliance certificates: RoHS
- Certification: CE
Weight & dimensions
- Width: 150 mm
- Depth: 157.5 mm
- Height: 86 mm
- Weight: 2.01 kg
Packaging data
- Package type: Box
Logistics data
- Country of origin: China
