Description

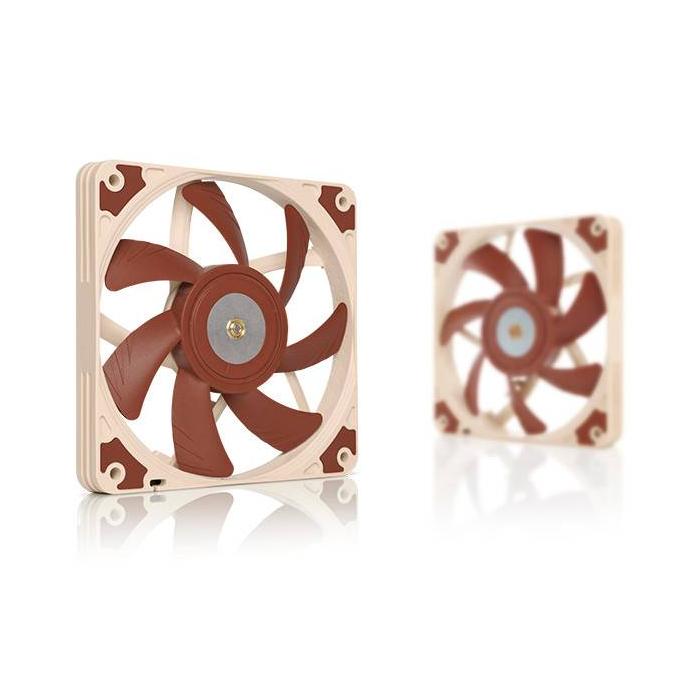

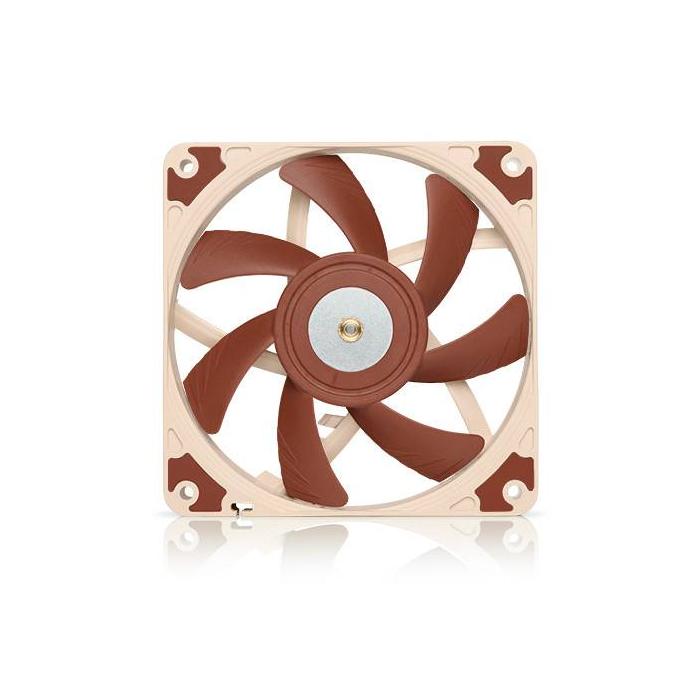

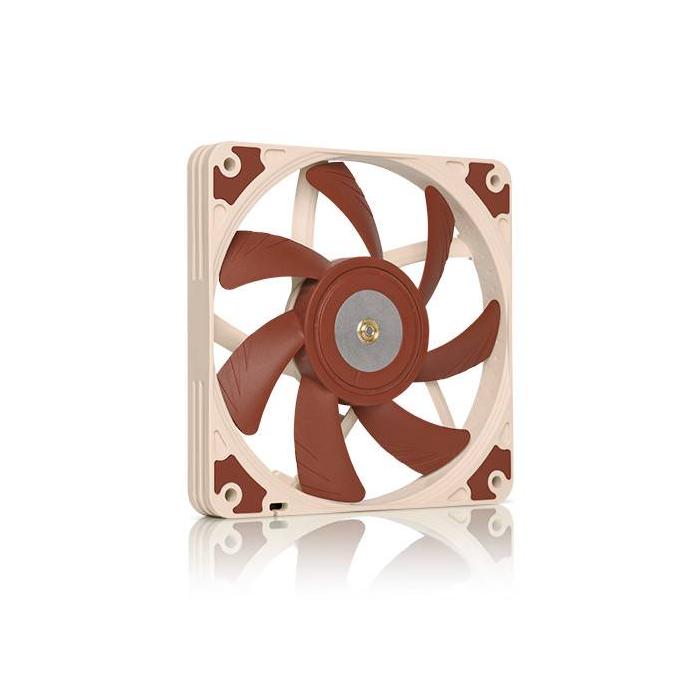

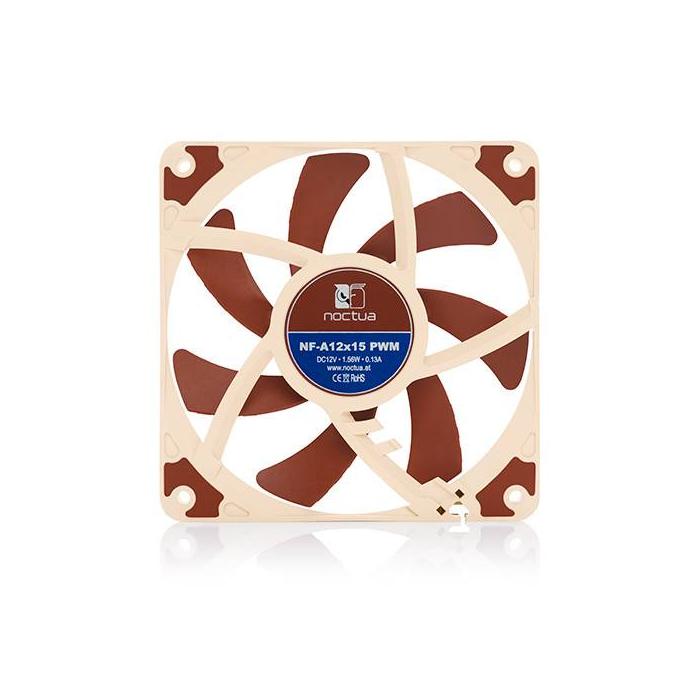

12 cm case fan in beige and brown, from the Noctua brand, belonging to the cooling range and featuring a vertical orientation. It incorporates a self-stabilising oil-pressure bearing (SSO) and a 4-pin connection that allows speed control via pulse-width modulation (PWM), with a rotation range of 450 to 1850 RPM. It offers an airflow of up to 94.2 m³/h and a maximum pressure of 1.53 mmH2O, maintaining a noise level of 23.9 dB at maximum speed, while with the low-noise adapter (LNA) it reduces airflow to 70.8 m³/h and sound to 16.8 dB. Specifically designed for installation in computer cases, this model combines performance and acoustic discretion in a compact low-profile format.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Supported processor sockets: Not supported
- Compatible processor series: Not supported
- Rotational speed (min): 450 RPM
- Rotational speed (max): 1850 RPM
- Rotational speed with LNA (max): 1400 RPM
- Noise level (high speed): 23.9 dB
- Noise level with LNA (max): 16.8 dB
- Airflow: 94.2 m³/h
- Airflow with LNA (max): 70.8 m³/h
- Minimum air pressure: 0.9 mmH2O
- Maximum air pressure: 1.53 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Design
- Product colour: Beige, Brown
- Fan connector: 4-pin
Power
- Power supply: 1.56 W
- Voltage: 5 - 12 V
- Maximum current: 0.13 A
Weight & dimensions
- Width: 120 mm
- Depth: 120 mm
- Height: 15 mm

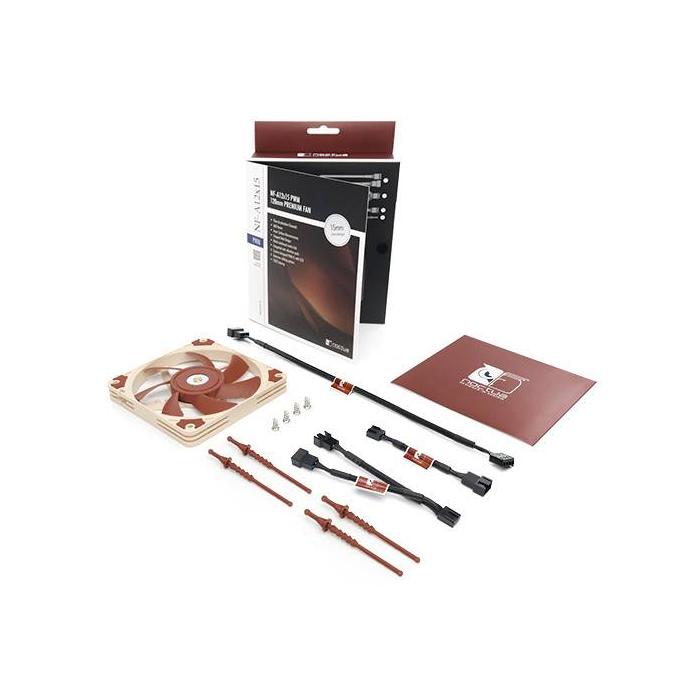

Packaging content
- Cables included: Fan
- Screws included: Yes
- Low-noise adaptor (LNA): Yes
Other features
- Mounting hole pattern (W x D): 105 x 105 mm
- Mean time to failure (MTTF): 150000 h
Logistics data
- Harmonized System (HS) code: 84733080
