Description

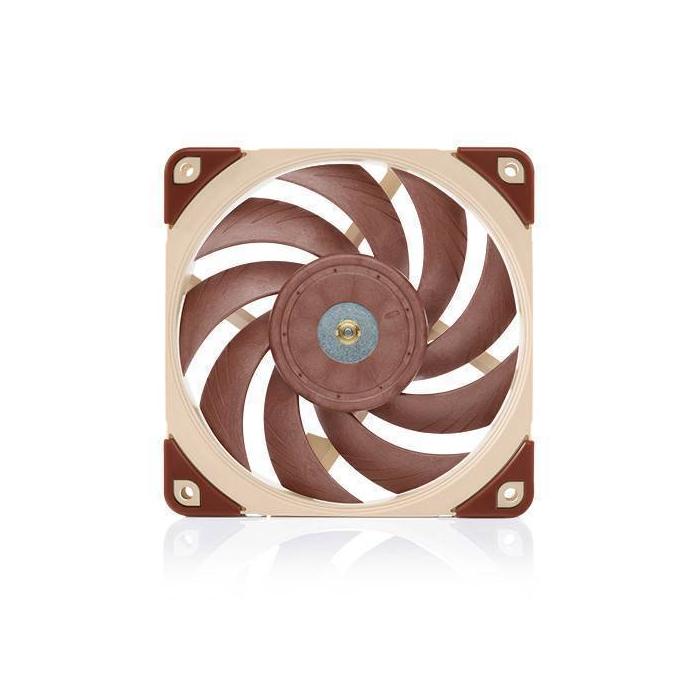

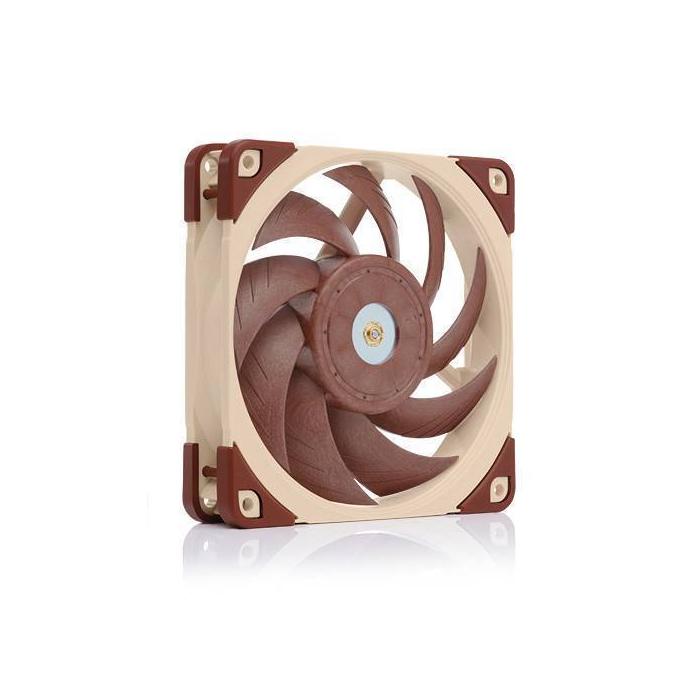

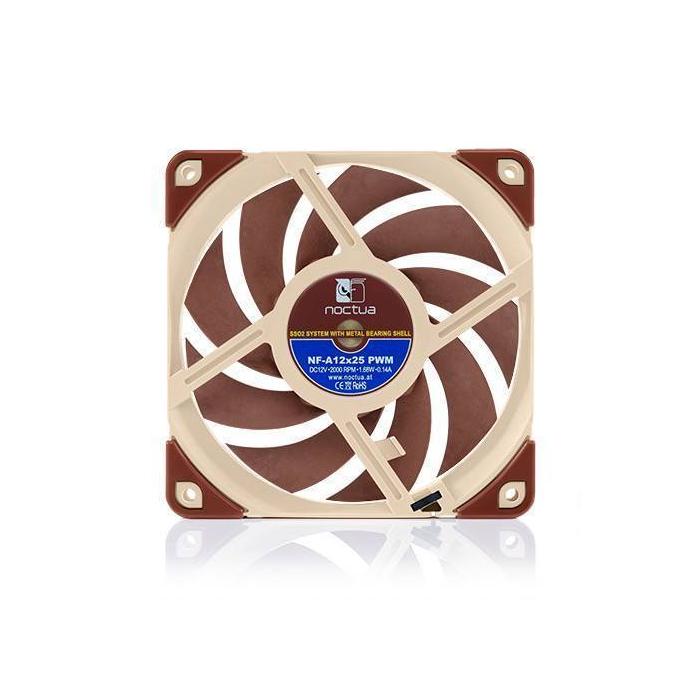

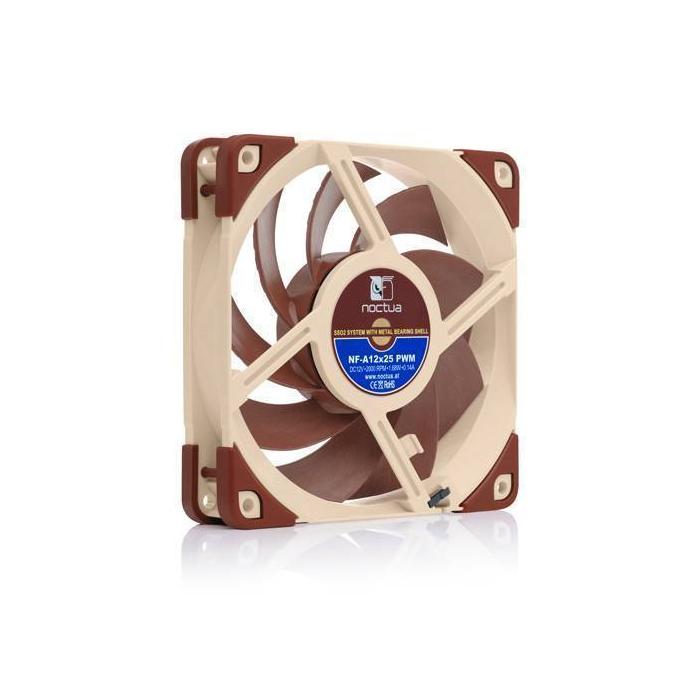

Noctua 12 cm brown fan, the NF-A12X25 PWM is designed for installation in your computer case and features a 4-pin connector for PWM control. Its self-stabilising oil-pressure SSO bearing ensures smooth rotation, with a maximum speed of 2000 RPM and an airflow of 102.1 m³/h, reducible to 1700 RPM and 84.5 m³/h with the included LNA adapter. It operates with a noise level of 22.6 dB at high speed and 18.8 dB with LNA, maintaining a static pressure of up to 2.34 mmH2O to move air efficiently within the tower, all thanks to its liquid crystal polymers that provide rigidity and durability.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Supported processor sockets: Not supported
- Compatible processor series: Not supported
- Rotational speed (min): 450 RPM
- Rotational speed (max): 2000 RPM
- Rotational speed with LNA (max): 1700 RPM
- Noise level (high speed): 22.6 dB
- Noise level with LNA (max): 18.8 dB
- Airflow: 102.1 m³/h
- Airflow with LNA (max): 84.5 m³/h
- Minimum air pressure: 1.65 mmH2O
- Maximum air pressure: 2.34 mmH2O
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Design
- Product colour: Brown
- Material: Liquid Crystal Polymers (LCP)
- Fan connector: 4-pin
Power
- Power consumption (typical): 1.68 W
- Voltage: 12 V
- Maximum current: 0.14 A
Weight & dimensions
- Width: 120 mm
- Depth: 25 mm
- Height: 120 mm
Other features
- Mean time to failure (MTTF): 150000 h
Logistics data
- Harmonized System (HS) code: 84733080
