Description

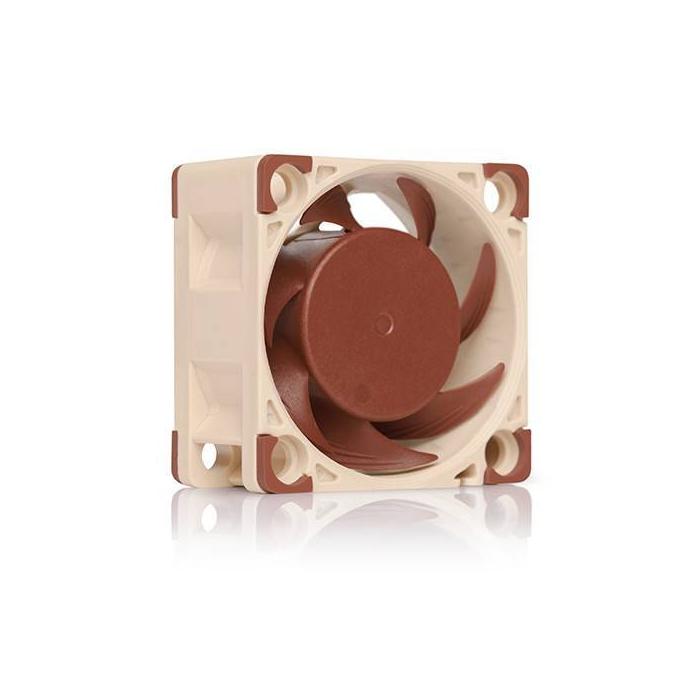

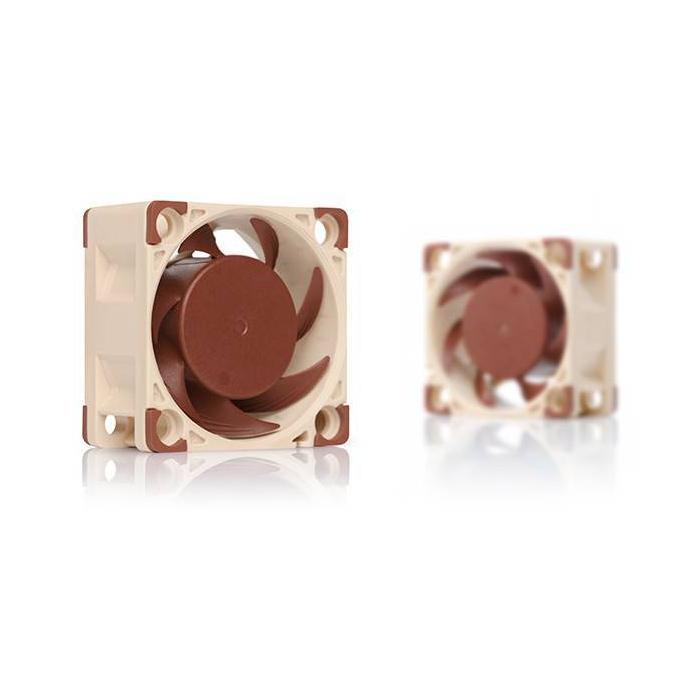

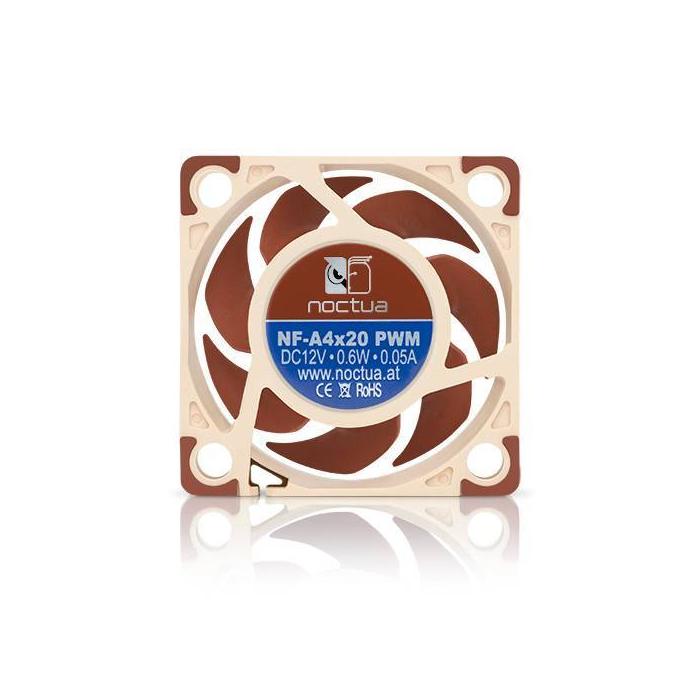

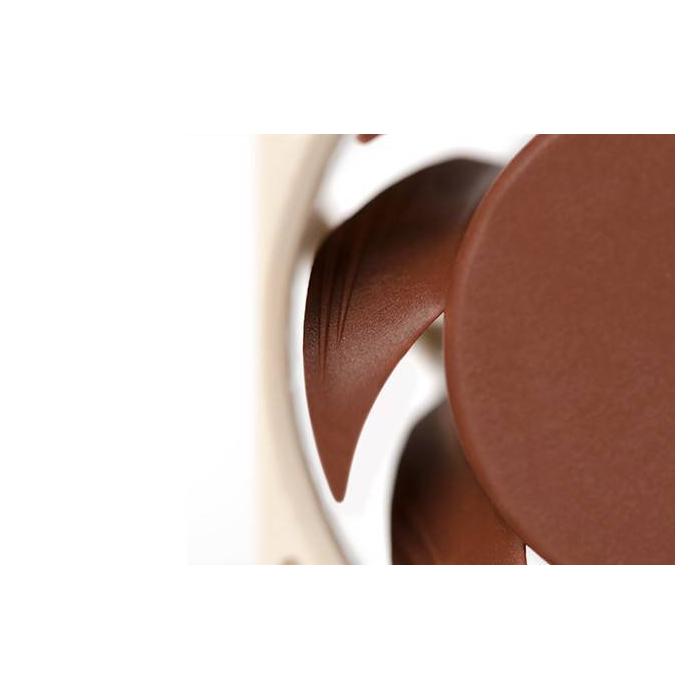

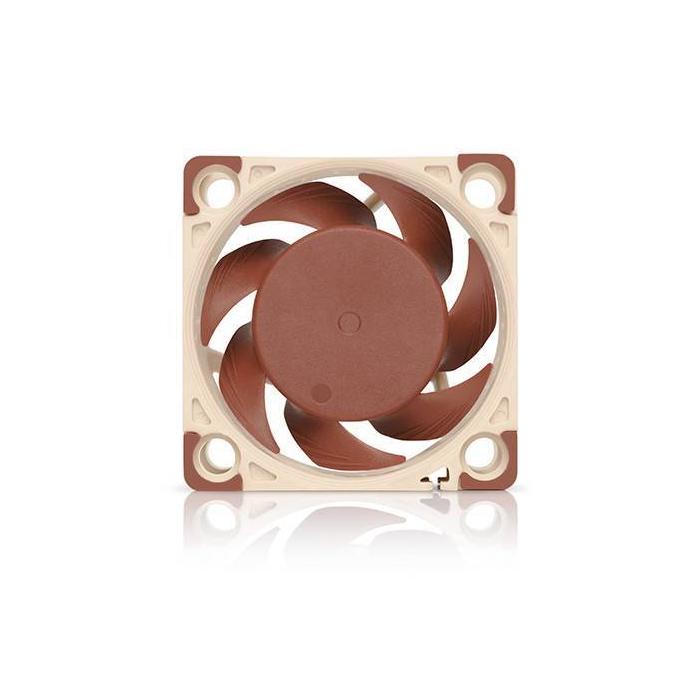

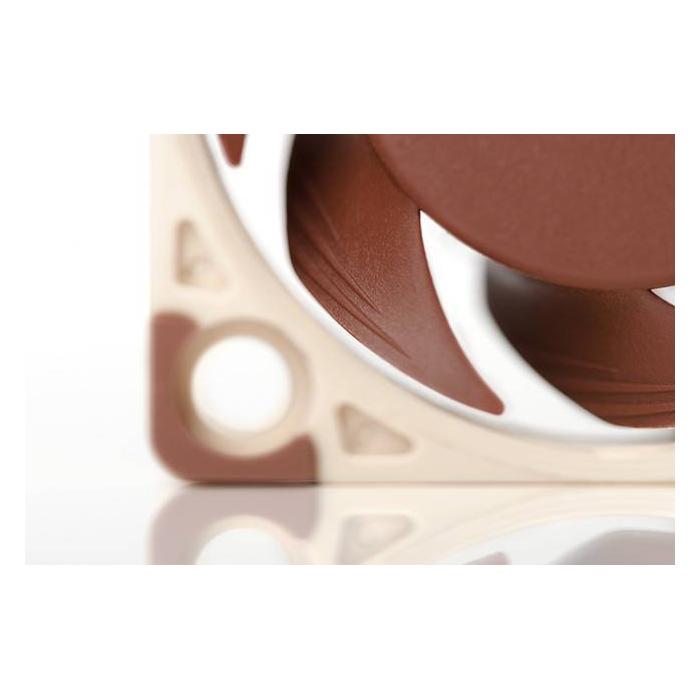

The Noctua NF-A4x20 PWM case fan, in its beige and brown colour scheme, is designed for compact spaces thanks to its 4 cm diameter and 4-pin connector. This model offers a rotation range of 1200 to 5000 RPM, with a maximum airflow of 9.4 m³/h and a static pressure of up to 2.26 mmH2O. Its noise level stays between 12.2 dB with the LNA adapter and 14.9 dB at maximum speed, operating with a power consumption of only 0.6 W. PWM (pulse-width modulation) compatibility allows the speed to be adjusted according to system temperature, although it is not compatible with specific processors or sockets, as its use is limited to case cooling.
Specifications
Performance
- Airflow: 9.4 m³/h
- Airflow with LNA (max): 8.3 m³/h
- Minimum air pressure: 1.75 mmH2O
- Maximum air pressure: 2.26 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 4 cm
- Supported processor sockets: Not supported
- Compatible processor series: Not supported
- Rotational speed (min): 1200 RPM
- Rotational speed (max): 5000 RPM
- Rotational speed with LNA (max): 4400 RPM
- Noise level (high speed): 14.9 dB
- Noise level with LNA (max): 12.2 dB
Design
- Product colour: Beige, Brown
- Fan connector: 4-pin
Power
- Power supply: 0.6 W
- Voltage: 5 - 12 V
- Maximum current: 0.05 A
Weight & dimensions
- Width: 40 mm
- Depth: 40 mm
- Height: 20 mm

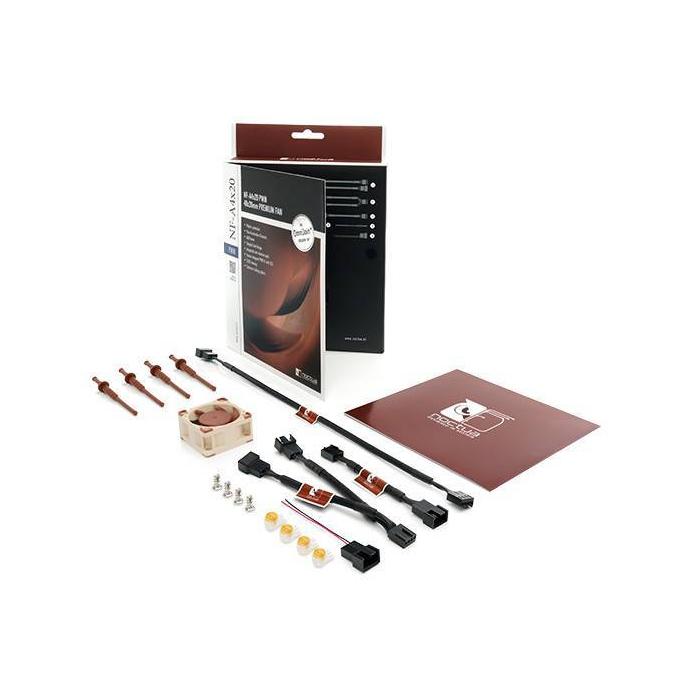

Packaging content
- Cables included: Fan
- Screws included: Yes
- Low-noise adaptor (LNA): Yes
Other features
- Mounting hole pattern (W x D): 32 x 32 mm
- Mean time to failure (MTTF): 150000 h
Logistics data
- Harmonized System (HS) code: 84733080
