Description

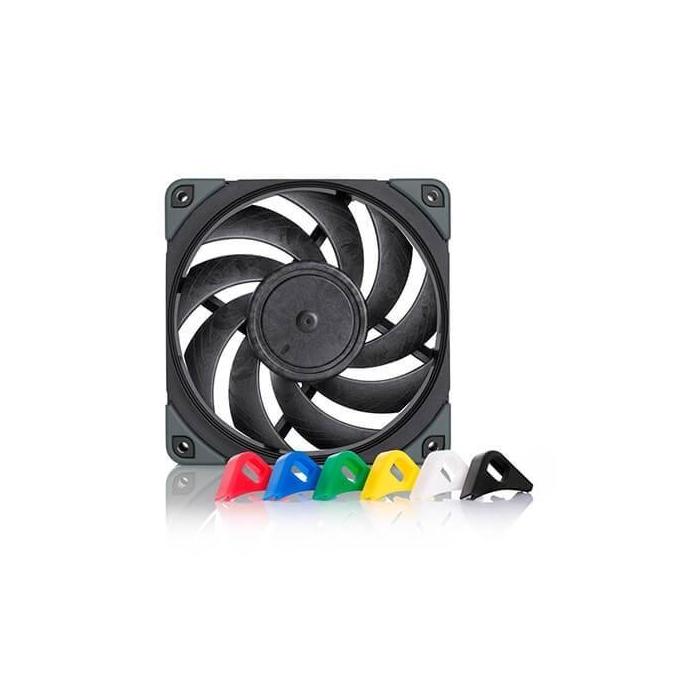

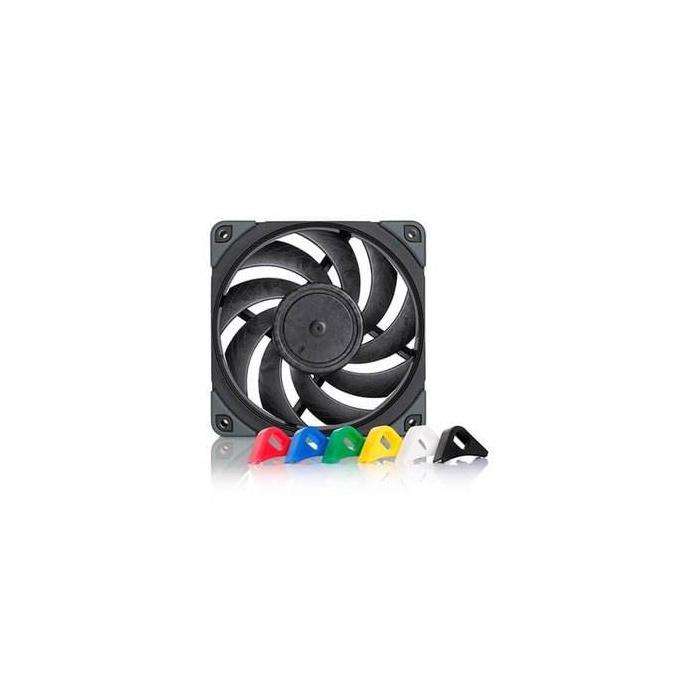

12 cm black case fan, the Noctua NF-A12X25 features a nine-blade design made of liquid crystal polymer (LCP) and incorporates a self-stabilising oil-pressure bearing (SSO) for stable rotation. Its rotation speed ranges from 450 to 1200 RPM, generating an airflow of 55.7 m³/h with a maximum pressure of 0.82 mmH2O and a minimum of 0.41 mmH2O, while noise levels remain between 7.6 dB at low speed and 12.1 dB at high speed. This single-module fan uses a 4-pin connector, consumes 0.6 W, and holds CE and RoHS certifications.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Rotational speed (min): 450 RPM
- Rotational speed (max): 1200 RPM
- Noise level (low speed): 7.6 dB
- Noise level (high speed): 12.1 dB
- Airflow: 55.7 m³/h
- Minimum air pressure: 0.41 mmH2O
- Maximum air pressure: 0.82 mmH2O
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Design
- Product colour: Black
- Material: Liquid Crystal Polymer (LCP)
- Number of fans: 1 fan(s)
- Number of fan blades: 9
- Fan connector: 4-pin
- Certification: CE, RoHS
Power
- Power supply: 0.6 W
- Voltage: 12 V
- Maximum current: 0.05 A
Weight & dimensions
- Width: 120 mm
- Depth: 25 mm
- Height: 120 mm
- Cable length: 0.5 m
Technical details
- Sustainability compliance: Yes
- Compliance certificates: RoHS
Packaging content
- Package type: Box
- Screws included: Yes
