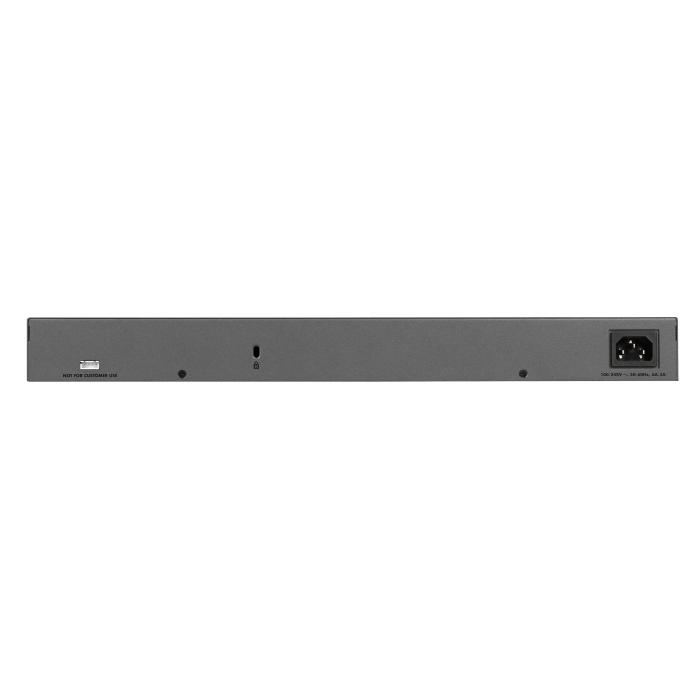

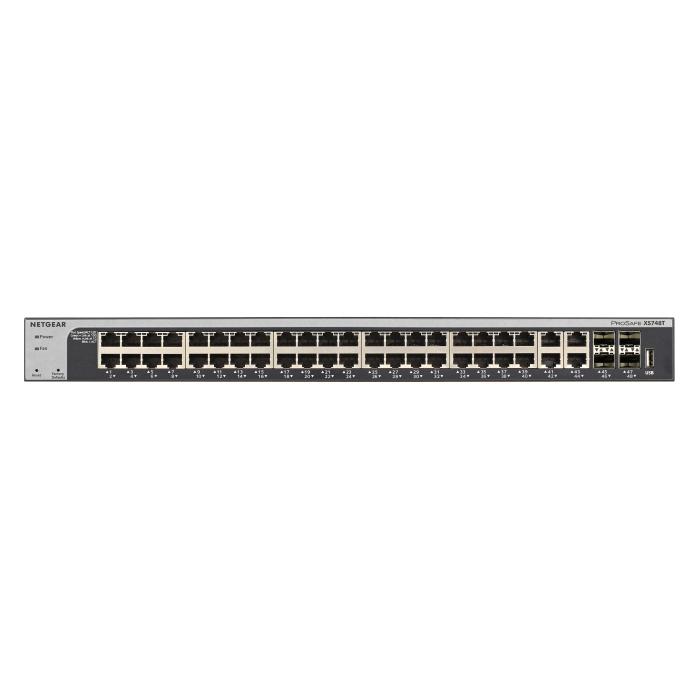

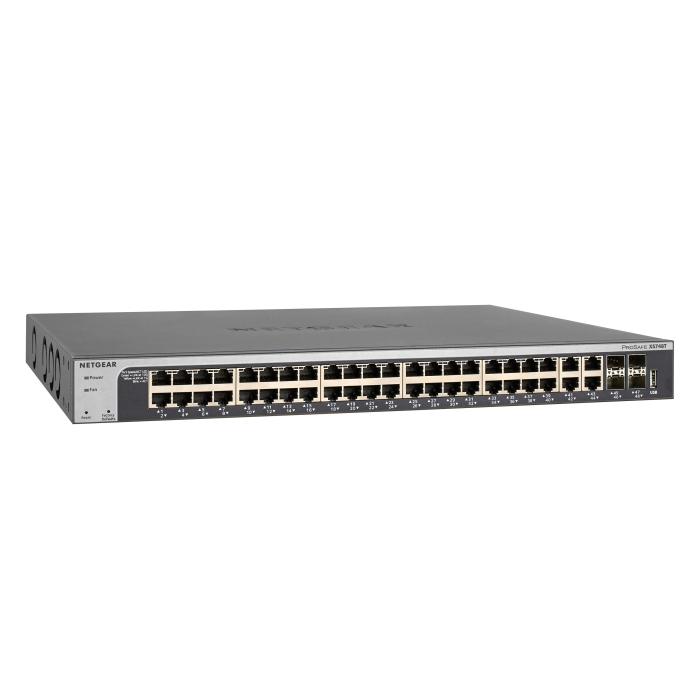

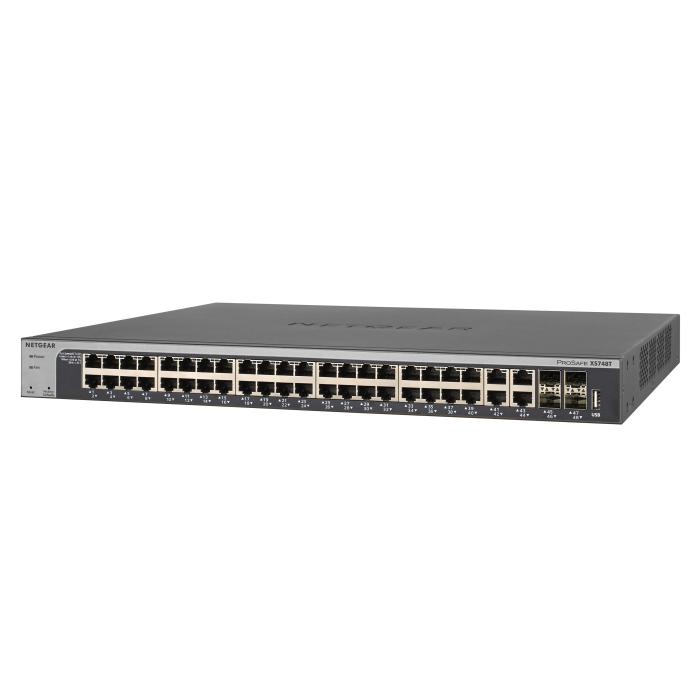

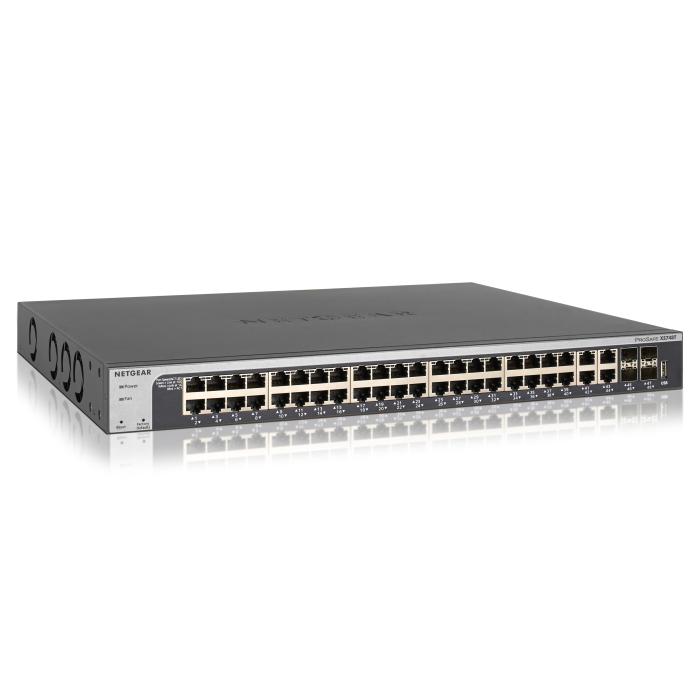

Name: NETGEAR 48-Port 10G Ethernet Smart Switch (XS748T)
Brand: NETGEAR
Price: 4780.88 USD
Availability: InStock

NETGEAR 48-Port 10G Ethernet Smart Switch (XS748T)

$4,780.88

$4,780.88 without VAT

NETGEAR 48-Port 10G Ethernet Smart Switch (XS748T). More info

Amount

Brand: NETGEAR

SKU: 77105 PRC: 127061 EAN: 606449112382 PN: XS748T-100NES

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2+/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 44
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 4
USB 2.0 ports quantity: 1

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3
10G support: Yes
Copper ethernet cabling technology: 10GBASE-T
Cable types supported: Cat5e, Cat6, Cat6a, Cat7
Port mirroring: Yes
Full duplex: Yes
IP routing: Yes
Flow control support: Yes
Link aggregation: Yes
Rate limiting: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Protocol-based VLAN
Number of VLANs: 512

Data transmission

Switching capacity: 960 Gbit/s
MAC address table: 16000 entries
Store-and-forward: Yes
Latency (10 Gbps): 3.674 µs
Number of queues: 8
Number of static routes: 64
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 3 MB

Security

DHCP features: DHCP server, DHCP client
Access Control List (ACL): Yes
Access Control List (ACL) rules: 164
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS
MAC address filtering: Yes

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMP v1, v2c, v3

Design

Rack mounting: Yes
Product colour: Black
LED indicators: Activity, Link, Power
Number of fans: 4 fan(s)

Performance

Built-in processor: Yes
Processor frequency: 800 MHz
Internal memory: 512 MB
Flash memory: 256 MB
Noise level: 47.8 dB
Mean time between failures (MTBF): 483808 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 262.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m

Weight & dimensions

Width: 440 mm
Depth: 310 mm
Height: 43 mm
Weight: 6.25 kg

Packaging content

Cables included: AC
Quick start guide: Yes
Rack mount kit: Yes

Certificates

Certification: CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC

Logistics data

Harmonized System (HS) code: 85176990
