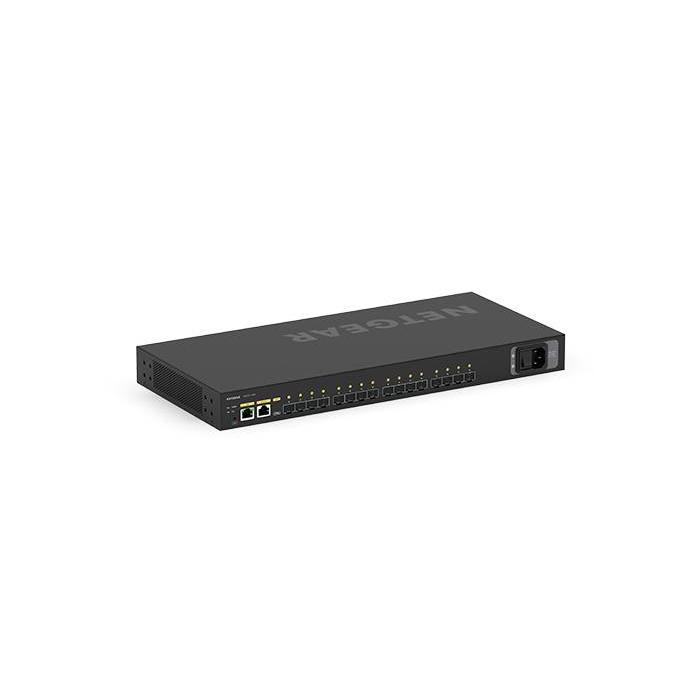

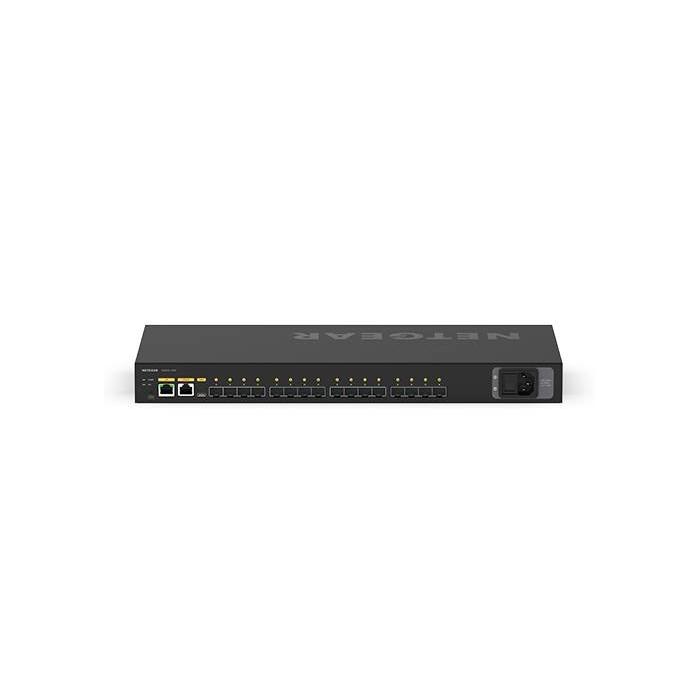

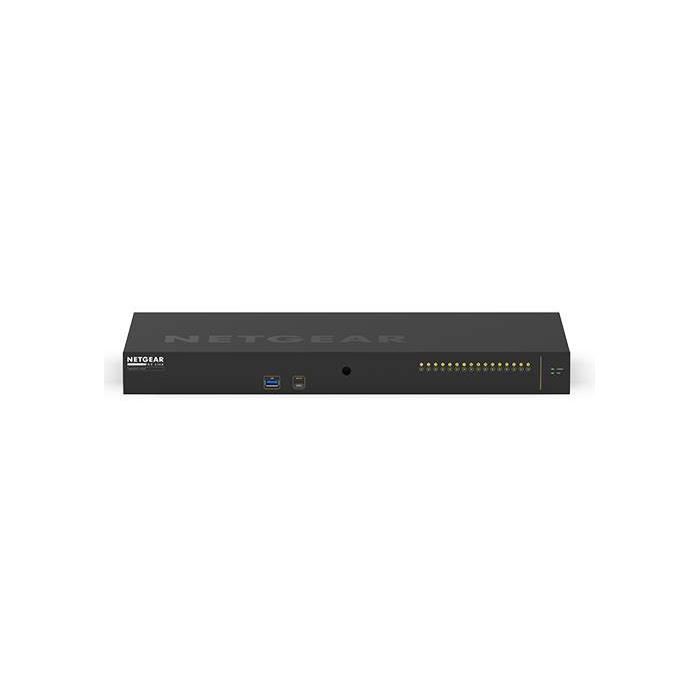

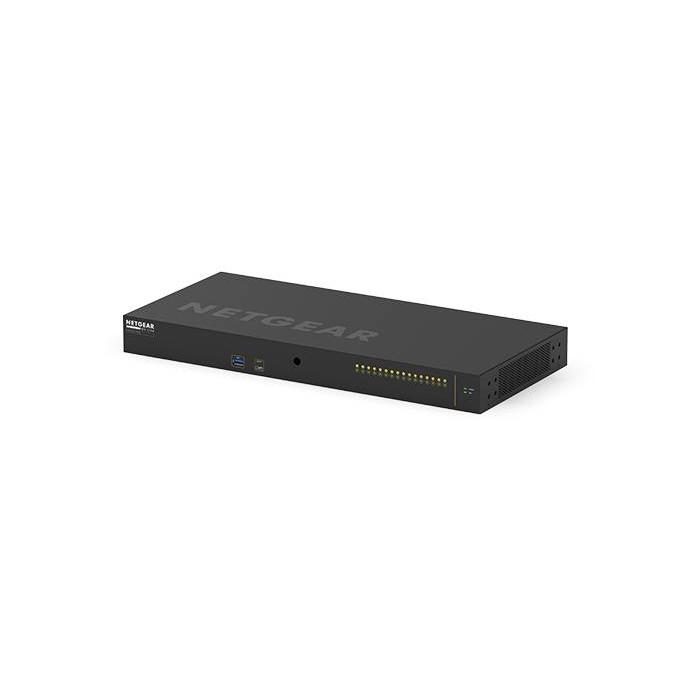

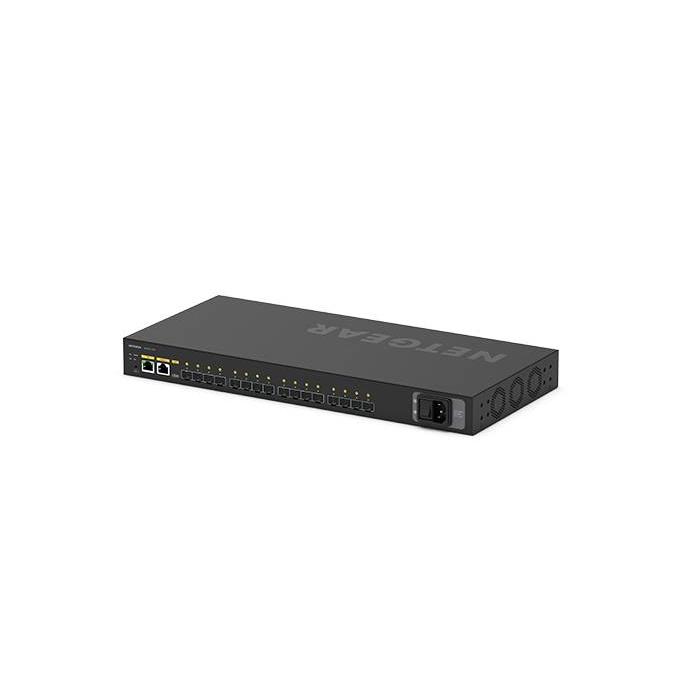

NETGEAR M4250-16XF Managed L2/L3 1U Black

$1,479.69
$1,479.69 without VAT

NETGEAR M4250-16XF Managed L2/L3 1U Black.   More info

Brand: NETGEAR
SKU: 86422 PRC: 304029 EAN: 606449149708 PN: XSM4216F-100EUS

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports type: No
  • SFP+ module slots quantity: 16
  • Console port: RJ-45/USB Type-C

Network

  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 80
  • 10G support: Yes
  • Full duplex: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4093

Data transmission

  • Switching capacity: 320 Gbit/s
  • Throughput: 238.08 Mpps
  • MAC address table: 16000 entries
  • Store-and-forward: Yes
  • Latency (1 Gbps): 1.274 µs
  • Latency (10 Gbps): 0.811 µs
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Jumbo frames: 12000
  • Packet buffer memory: 16 MB

Security

  • DHCP features: DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • BPDU filtering/protection: Yes
  • Authentication: MAC-based authentication
  • Authentication type: RADIUS

Multicast features

  • Multicast support: Yes
  • IPv4 multicast entries: 2000
  • IPv6 multicast entries: 2000

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: PoE, Power, Status

Performance

  • Built-in processor: Yes
  • Processor model: ARM Cortex-A9
  • Processor frequency: 1250 MHz
  • Internal memory: 2048 MB
  • Noise level: 56.7 dB
  • Mean time between failures (MTBF): 778769 h

Power

  • Power consumption (typical): 47.84 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 70 °C
  • Operating relative humidity (H-H): 0 - 90%
  • Storage relative humidity (H-H): 0 - 95%
  • Operating altitude: 0 - 3000 m
  • Heat dissipation: 163.33 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 100 mm
  • Height: 43.2 mm
  • Weight: 1.74 kg

Logistics data

  • Harmonized System (HS) code: 85176990
